15KVA 12KW MPPT Wifi Hybrid Dual PV Input 48V Inverter - Fivestar

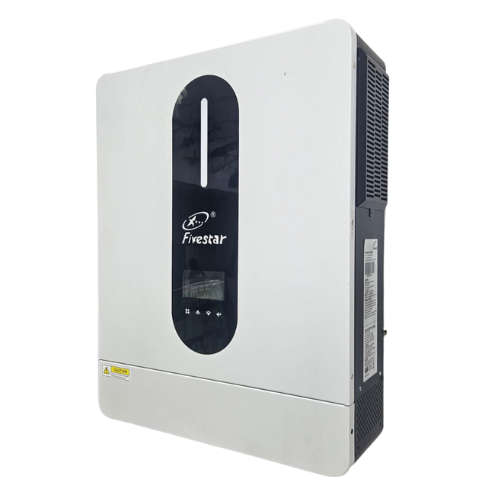

Fivestar 15KVA 12KW MPPT Wifi Hybrid Dual PV Input 48V Inverter Powering a Sustainable Future with Precision

The Fivestar 15KVA 12KW MPPT Wifi Hybrid Dual PV Input 48V Inverter is a cutting-edge solution designed to revolutionize energy conversion in both residential and commercial settings. With a commanding maximum output of 15KVA and 12KW, this inverter is well-equipped to handle substantial loads and power a diverse range of appliances.

Key Features:
1. Advanced MPPT Technology: This inverter employs MPPT (Maximum Power Point Tracking) technology to ensure optimized energy production from your solar panels, even in low light conditions. It maximizes power generation and overall energy efficiency.

2. Dual PV Input and 48V Battery Voltage: With dual PV inputs and a 48V battery voltage, this inverter offers compatibility with an extensive range of solar panels and battery systems, providing versatile solutions to meet your unique solar energy requirements.

3. Remote Monitoring with Wi-Fi Connectivity: The Fivestar inverter is equipped with Wi-Fi connectivity, allowing you to monitor and control your solar energy system from virtually anywhere. Easily access critical data such as energy production, battery status, and system performance using your smartphone or computer. This feature simplifies system optimization for maximum efficiency and cost savings.

4. Hybrid Functionality: This inverter operates as a hybrid model, suitable for both on-grid and off-grid systems. It can also function in battery backup mode, ensuring a continuous power supply during blackouts or grid failures. Its high efficiency and reliability make it an excellent investment for those seeking to power their home or business with renewable energy.

Specifications Fivestar 15KVA 12KW MPPT Wifi Hybrid Dual PV Input 48V Inverter:
PV Input:

Nominal Operating Voltage: 360Vdc
Vmax PV: 500Vdc
PV Input Voltage Range: 90 450Vdc
Imax PV: 27.OA
Full Load MPPT Range: 360 450Vdc
Rated Power: 12,000W/15,000VA
Max Solar Charging Current: 160A
Grid AC/Output:

Nominal Output Voltage: 220/230/240Vac
Feed-in Grid Voltage Range: 195 253Vac
Feed-in Grid Frequency Range: 49 51 +- 1Hz
Nominal Output Current: 35.6A
Power Factor Range: >0.99
Conversion Efficiency (DC/AC): 98%
Nominal Operating Frequency: 50/60Hz
Two Load Output Power:

Full Load: 12,000W
Maximum Main Load: 12,000W
Maximum Second Load: 3,333W
Main Load Cut Off Voltage: 44VDC
Main Load Return Voltage: 52VDC
AC Input:

Nominal Operating Voltage: 230Vac
Maximum Input Current: 40A
Nominal Operating Frequency: 50/60Hz
Surge Power: 20,000VA
Max AC Charging Current: 140A
Battery:

Battery Voltage Range: 40-63VDC
Maximum Battery Current: 190A
What's in the Box:

1 x Fivestar 15KVA Hybrid Inverter

Warranty: 12 Months Repair Warranty

Warranty Condition:

A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
