15w SOLAR PANEL POLYCRYSTALLINE ECO-PLUS SOLAIRE (12v - 15Wp)

 POLYCRYSTALLINE ECO-PLUS SOLAIRE 15Wp SOLAR PANEL

                                                            This product carries a 5 year carry-in replacement warranty.

                                                              Any faulty module gets replaced; send unit back to supplier and replacement will be sent.

                                                                           Power Life expectancy of panel:20 years 80% yield.

Specifications:

No.of cells and connections 36(6X6)

Cell: Polycrystalline solar cell 52 mm X 52mm

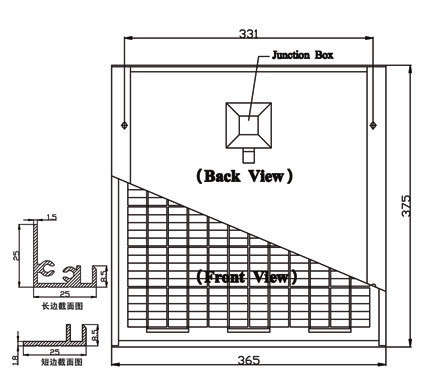

MODULE SIZE (mm) : 375 X 365 X 25

Weight: 1.7 kg

                                    Solar Panel

 Product characteristics:

Open circuit voltage (Voc) 21.4V

Optimum operating voltage (Vmp) 18.1V

Short circuit current (Isc) 0.92A

Optimum operating current (Imp) 0.83A

Maximum power at STC (Pm)15Wp (Watts peak)

STC: Irrandiance 1000W/m2, Module temperature 25°C, AM=1.5

Limits:

Operating temperature: -40°C to + 85°C

Maximum system voltage: 1000V DC

Temperature and Coefficients:

Nominal cell operation temperature (NOCT) 48°C +/- 2°C

Current temperature %K 0.035

Voltage temperature coefficient MV/K -0.37

Power temperature coefficient %K -0.5
