| Item code | package included |

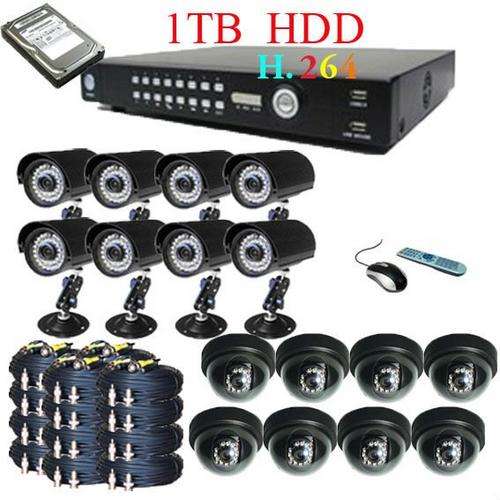

| S-8316HB5-IR | *H.264 16 CH Stand Alone DVR with VGA with 1TB *8X 1/4" Sharp CCD 420TV line 36 pcs IR LED, 6mm lens, IR: 15m 8X1/3"Sony 420TVL 12pcs IR LED,3.6/6mm lens, IR:15m *8X camera Brackets & camera charger *16X 20M power/ Video all in one cable
|

|
| Features: |
| *Video Input/Output: BNC 16CH In / 2CH Out, VGA 1CH Out, HDMI 1CH Out |
| *Audio Input/Output: RCA 16CH In/ 1CH Out |
| *Alarm Input/Output: Alarm 16CH In/ 1CH Out |
| *Compression Method: H.264 |
| *Real time recording support: CIF:352x240 with 480 Fps (NTSC); 352x288 with 400 Fps (PAL) D1:720x480 with 120 Fps (NTSC); 704x576 with 100 Fps (PAL) |
| *Preview resolution: 720 x 480 ( NTSC ), 704 x 576 ( PAL ); Playback resolution: CIF x 16 / D1 x 1 |
| *Hexaplex operation simultaneously: Preview, recording, playback, and network live, backup, playback |
| *1 RJ-45 Ethernet connector, Static, Dynamic IP and DDNS, Support Internet Explorer and special client software |
| *Remote Control, PTZ, RS485x1, RS232x1, 2xUSB, 1xIR Controller |
| *SATA 2 Hard Disk interface |
| *Backup: USB2.0 and Network |
| *Support remote view by Mobilephone |
| Specifications |
| Compression Format | H.264 |
| Video System | NTSC / PAL |
| GUI OSD | YES |
| Video Input/Output | BNC 16CH In/ 1CH BNC Out/ 1CH VGA Out ,HDMI 1CH Out |
| Audio Input/Output | RCA 16CH In/ 1CH Out |
| Alarm Input/Output | Alarm 16CH In/ 1CH Out |
| Preview resolution | 720 x 480 ( NTSC ), 704 x 576 ( PAL ) ; Playback resolution:16x CIF |
| Maximum Recording Rate(CIF) | CIF:352x240 with 480 Fps (NTSC); 352x288 with 400 Fps (PAL) |
| Image Quality Setting | Supper Best, Well, Good, Medium, Normal and Bad |
| Hard Disk Storage | Support 2 SATA HDD, unlimited for the capacity |
| Multiplex Operation | Live display/ record/ playback/ backup/ network transmit |
| Recording Mode | Manual/ Timer/ Motion |
| Backup Device | USB flash disk / Network |
| Pre-alarm Recording | Recording for 10 seconds before alarming |
| Network Protocol | TCP/IP,PPPOE ,DDNS and NTP |
| Ethernet remote view | Support remote surveillance up to 10 users simultaneously |
| Mobile phone View | YES |
| Video Adjustable | Hue /Saturation /Contrast /Brightness adjust |
| PTZ Control | YES, built-in RS-485 port |
| Log record function | YES |
| Image Tour | YES |
| SNS software | YES |
| Power-down recovery function | YES |
| Key Lock(Password Protection) | YES |
| USB Mouse | YES |
| Power Source | DC 12V 3A |
| Dimension | 405mmx325mmx65mm |
 | Image Sensor | 1/4 Sharp Color CCD |
| Horizontal Resolution | 420 TV Line |
| Pixels | PAL:500(H) x 582(V) NTSC:510(H) x 492(V) |
| TV System | PAL/NTSC |
| IR LED | 36PCS |
| IR Series Distance | 50FT |
| Sync System | Internal |
| IR Status | Under 10 Lux By CDS |
| Electronic Shutter Time | Auto:PAL 1/50-1/100,000Sec; |
| NTSC 1/60-1/100,000Sec |
| White Balance | Auto |
| Camera Specifications | | |

| Image SenSor | 1/3 Color Sony CCD |
| Horizontal Resolution | 420 TV Lines |
| Electronic Shutter | PAL:1/50 ~1/100,000 sec, NTSC:1/60 ~1/100,000 sec |
| Pixel | 420 TV Lines PAL: 512x582,NTSC: 512x492(HxV) |
| Lens | 3.6mm/6mm(Optional) |
| IR Distance | 15 meters |
| IR Status | Light below 3Lux, CDS automatically turn on |
| Power Supply | DC12V |
| Power Consumption | 425~508mA |
| Operating Temperature | -10C~ 50C |
| Net Weight | 180g |
