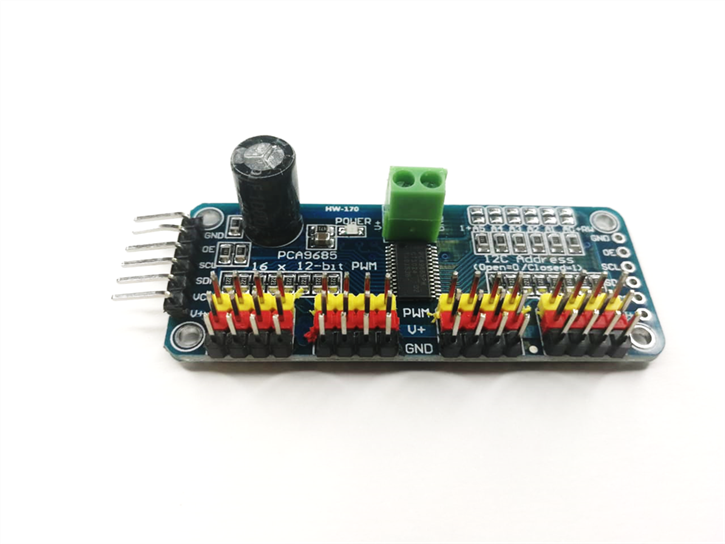

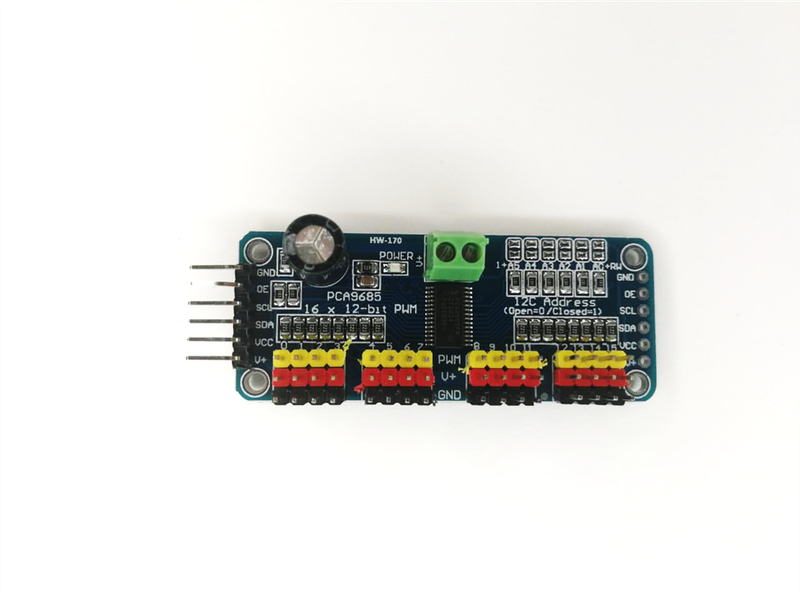

16 Channel 12-bit PWM/Servo Driver

Name: 16 Channel 12-bit PWM/Servo Driver
SKU: MEC-000282
Price: 178.25 ZAR
Availability: InStock

3 available / new

Only 3 left – grab it before it’s gone!

R178.25

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Netram Technologies663

98.56 % Positive ratings

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

MEC-000282

Bob Shop ID

633481379

Using only two pins, control 16 free-running PWM outputs!

You can even chain up 62 breakout board to control up to 992 PWM outputs (which we would really like to see since it would be glorious).

Features:

IIC interface, PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your MCU, its completely free running!
Power supply 5V, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages)
Chain able design, 6 address select pins, so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs — that's a lot of servos or LEDs
Adjustable frequency PWM up to about 1.6 KHz
12-bit resolution for each output — for servos, that means about 4us resolution at 60Hz update rate
Configurable push-pull or open-drain output
Output enable pin to quickly disable all the outputs
On board 220ohm resistors can drive for LED output.
