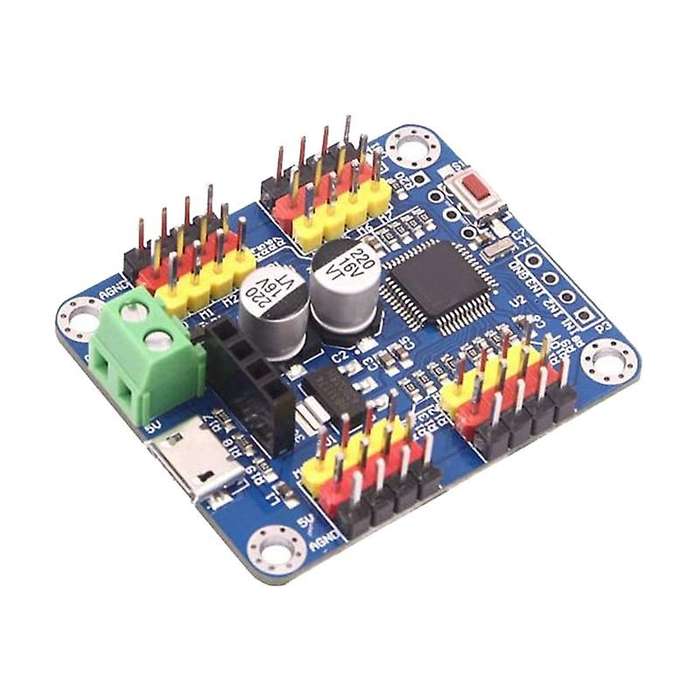

16 Channel PWM Servo Motor Driver Controller Board Module PCB Steering Gear for SG90 DIY Servo Shiel

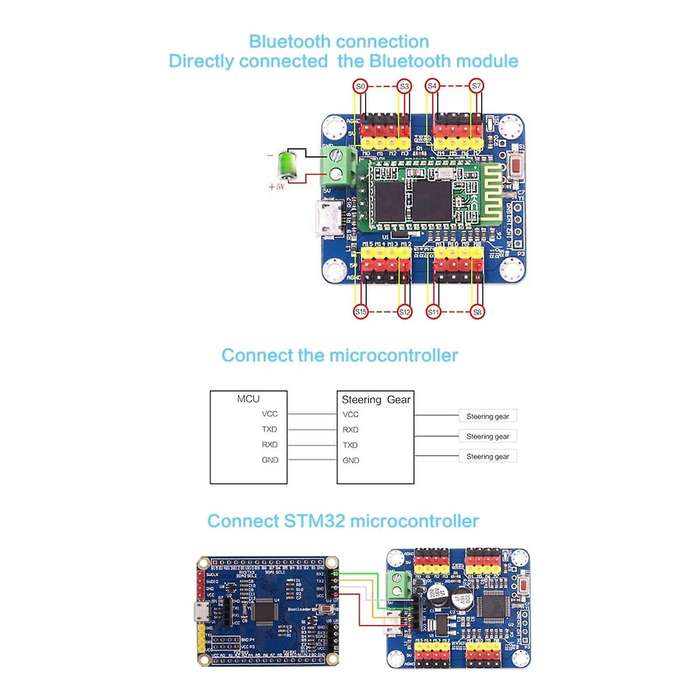

The servo motor is used in aircraft model and ship model movement, and has been extended to electromechanical products. It is also widely used in robot control.16-way steering gear control,USB \/ TTL connectionSpeed adjustable, Isolated drive, Stable performance, never burn boardUSB power supply(for writing program), no need to install drivers. Just define the state, no need to to calculate detail of the actionTwo-way power supply for the control board and steering gear, , robots, , motors and other equipmentParameter:Channels: 16Mounting hole position : 37mm x 30mm,Aperture 3mm.Voltage: USB: 5V , TTL:3.3V(two choose one), Servo Motor supply : 5-7.2v.Communication Interface: USB\/ TTL UART (Bluetooth optional )Baud rate: 9600KpsFeatures:1 Frequency : 48 MHz2 PWM accuracy : 0.1us.3 Number of action groups: Group 16.4 The minimum step of the Servo Motor: 1us.5 Chip: STM32 series, high performance, low power consumption6 Operating temperature: -40~80. to adapt to environments7 Maximum number of storage actions: 8192. Satisfy storage requirementsColour: as shownMaterial: ABSSize: 4.35 x 3.6 x 1.2cmPackage Contents:1 x Smart servo Motor Control boardOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
