Features:
1. 3D 16 line irradiation, 360ￂﾰ without dead angle
2. Indoor and outdoor general Universal, High brightness green, indoor and outdoor clearly, far projection distance, high laser height, clear lines.
3. Precise measurement and more convenient to use.
4. 4/8/12/16 line can be adjustable, suitable for different occasions to meet different engineering needs.
5. Crashworthy and anti knock, 3D soft rubber clad, crashworthy and anti knock.
6. International standard IP54 waterproof and dust-proof, multiple protection, Longer life in harsh environment.
7. 4000mAh large capacity battery with longer endurance life, long service life, 4000 MAH large capacity li batteries, standby time more than 72 hours, working hours can last 12-16 hours,can work for 2 days after charged.
8. With the use of tripod, you can work with 180ￂﾰ oblique line
9. ￂﾱ3ￂﾰAutomatic self leveling function. Sound warning when beyond auto leveling range.
10. 360ￂﾰ rotating base with fine tuning knob, quickly identify the target.Thickened metal base provides stable support and it is shockproof, shatter-proof.
Specifications:
Material: Aluminum Alloy Chassis Engineering Plastics
Laser lines: 16 (4/8/12/16 line is adjustable)
Laser Color: Green
Wall attachment distance:7mm
Horizontal/Vertical Accuracy: ￂﾱ0.2mm/ 1m
Wavelength green lightﾼﾚ532
Automatic leveling rangeﾼﾚￂﾱ3ￂﾰ
Rotation Degree: 360ￂﾰ
Slash function: Yes
Protection level: IP54 Dustproof & Waterproof
Operating temperature: -20￢ﾄﾃ-50￢ﾄﾃ
Battery capacity: 4000mAh
Working environment: Indoor/Outdoor
Working time: 12~16h

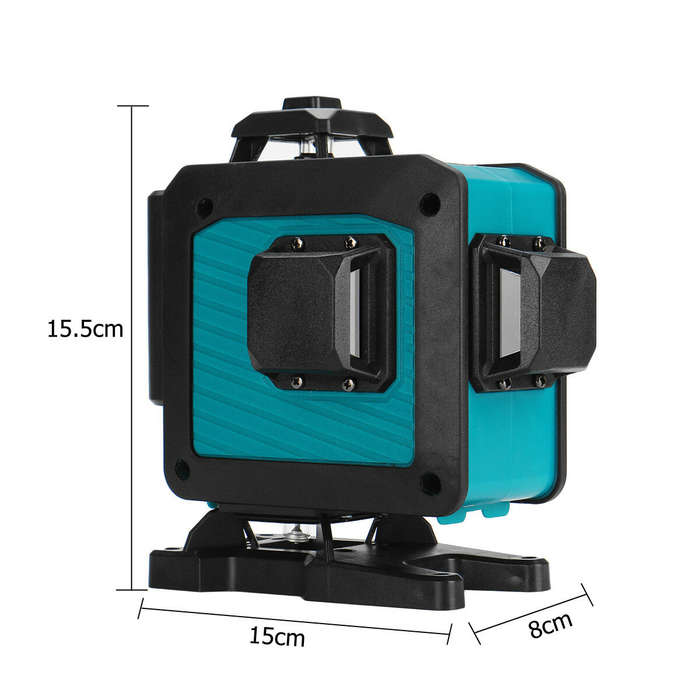

Size: 15x8x15.5cm/5.9x3.1x6.1in

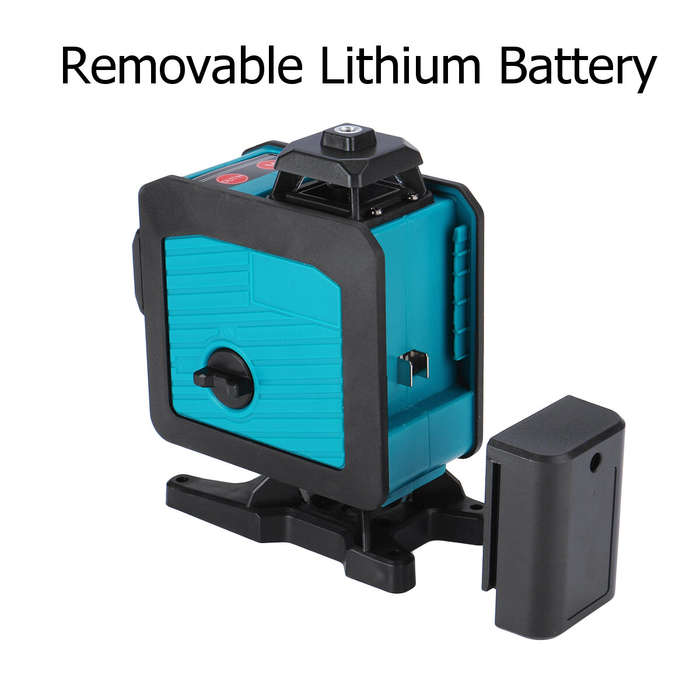

Power: 1 x 4000mAh Rechargeable Li Battery /Direct charging(4.2V )
Application:
Auxiliary tiles fixing, wall decoration, floor tiles fixing, stair handrails,furred ceiling,floor tile,plastering.

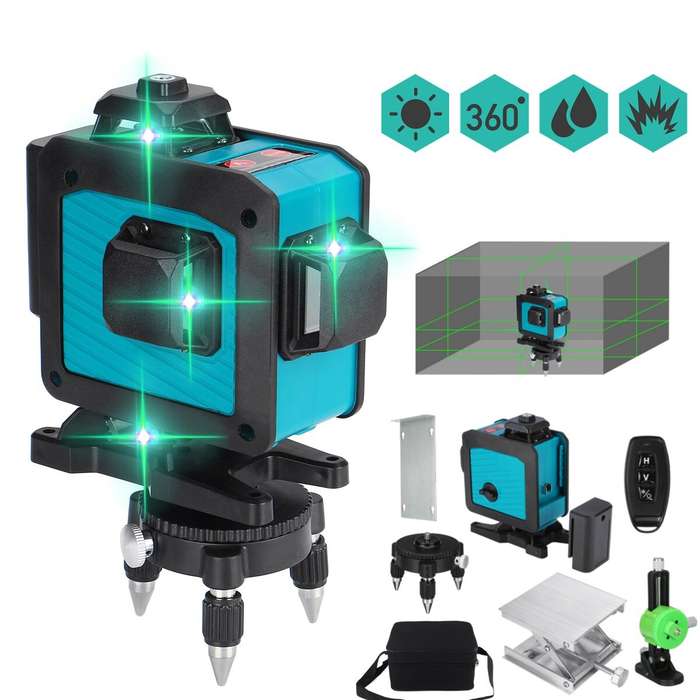

Package Included:
1 x 16 Line Laser Level
1 x Remote Control
1 x Holder
1 x Lift Holder
1 x Wall Bracket
1 x Iron Sheets
1 x Lithium Battery
1 x Charger
1 x Anti-fall box
1 x User Manual
Details Pictures:
