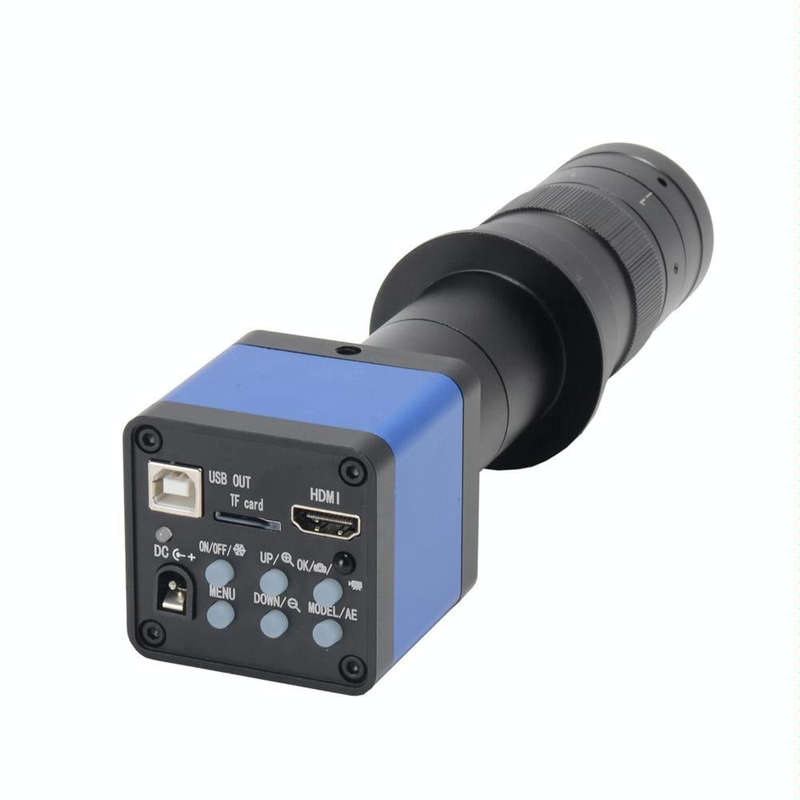

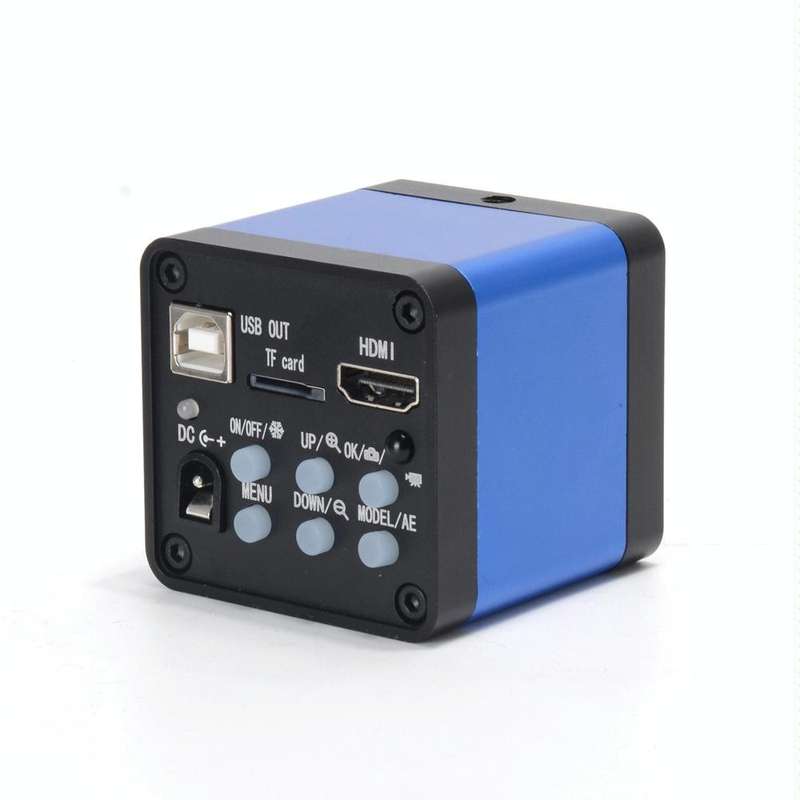

Camera parameters:
1. Image sensor: 16 million pixel COMS sensor
2. Sensor target surface size: 1/2.3 inch, 1.43umx1.43um
3. Effective pixels: 4608x3456 (16 million pixels)
4. Frame rate: 60 frames per second, 1920 x 1080
5. HDMI output: 1080P 60fps
6. USB output: support 1920x1080, 30fps
7. White balance contrast: support
8. Photograph: 4608x3456 (16 million pixels) JPG format
9. Video: 1920x1080, 60fps MP4 format
10. Storage: Support TF memory card within 64GB
11. Exposure compensation: support automatic and manual or EV value
12. Image zoom: 8 times zoom in and zoom out digital zoom
13. Language settings: Chinese, English, Japanese, French, German, Russian, Italian, Arabic
14. Crosshair crosshair: support
15. Light source frequency: support 50Hz, 60Hz frequency setting
16. Shell size: 54 (width) x55 (height) x56 (length) mm standard aluminum alloy
17. Lens type: support C/CS interface
18. Image and video playback: support
19. Image comparison: not supported
20. Remote control power supply: built-in button battery

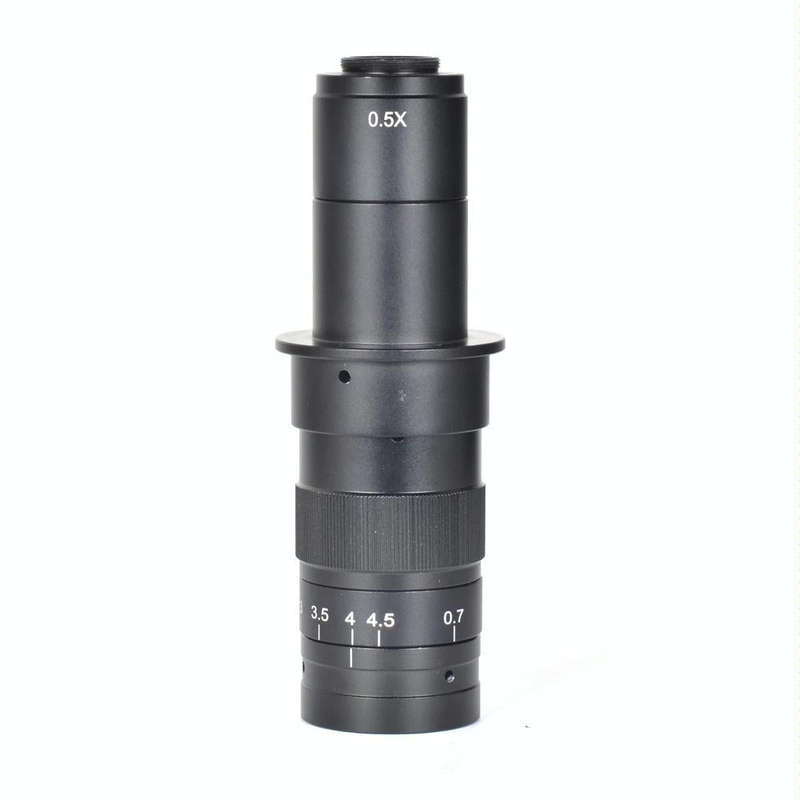

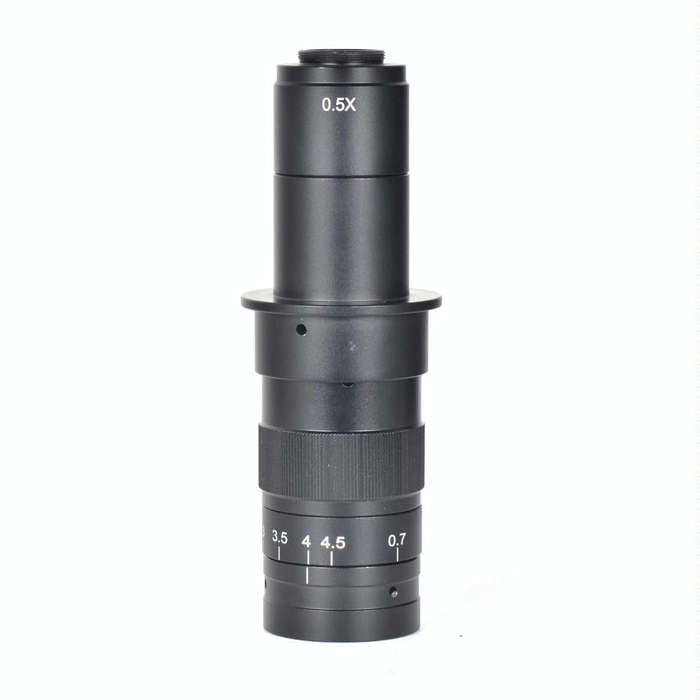

0745 lens parameters
1. Material: glass lens/all metal
2. Size: Length 18 cm
3. Multiple: 0.7-4.5X
4. Eyepiece: 0.5X
5. Zoom ratio: 1 to 6.5
6. Matching size of the main lens: 45 mm in diameter
7. The multiplier is 0.7X, the working distance is 120mm, and the visual range is 18mm
8. The multiple is 4.5X, the working distance is 100mm, the visual range is 2-3mm
9. Weight: 530 grams
10. Application: electronic inspection, crystal inspection lamp
Widely used in microelectronics, molds, precision machinery, jewelry, watches, accessories, fingerprint identification, ticket identification, printing, mobile phone repair, archaeology, biological anatomy, school teaching and other fields. It is especially suitable for observing the surface microstructure of large objects.

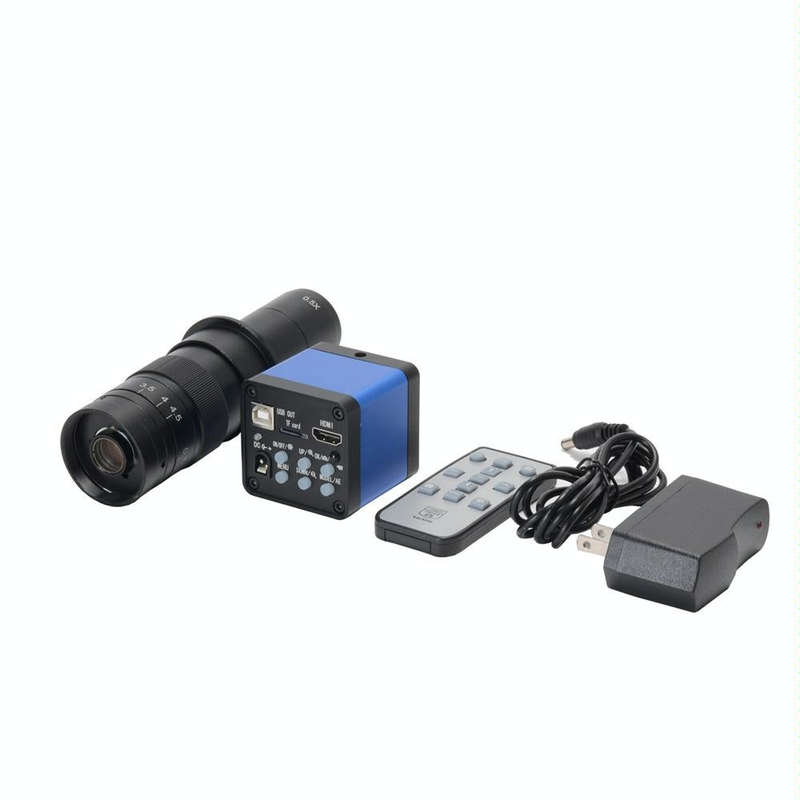

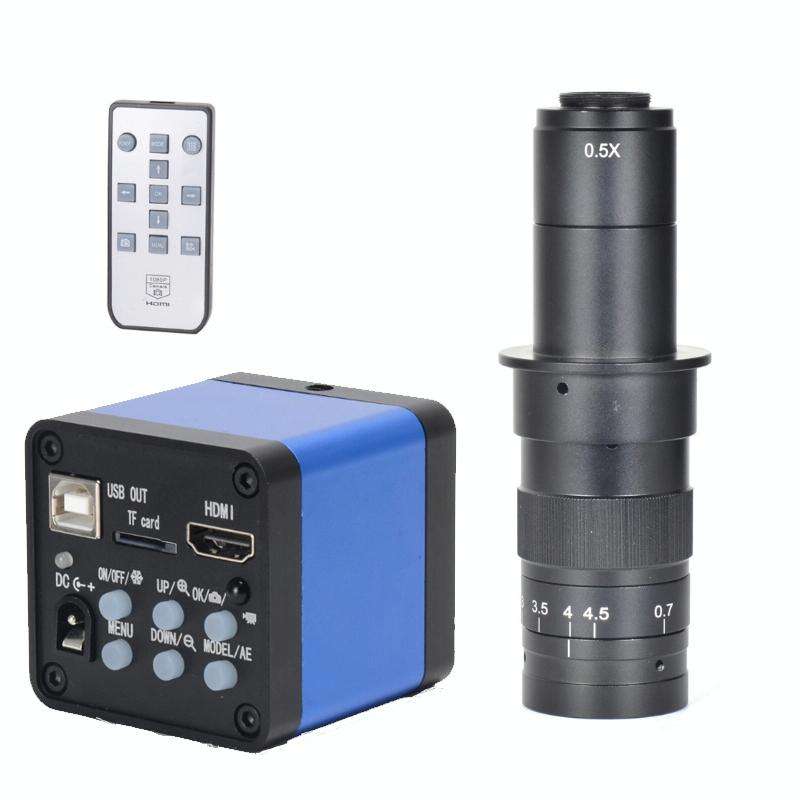

Packing list: 16 million industrial camera + 180 times adjustable focus industrial camera lens + measurement software (CD) + USB cable + HDMI cable
