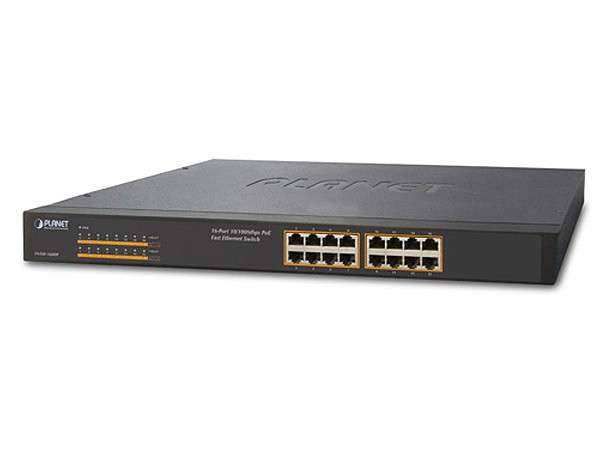

16 Port 802.3af PoE Switch - Planet

FNSW-1600P by Planet has 16-Port 802.3af PoE in-line power interfaces, and can easily accommodate a powerful, centrally-controlled IP phone system, IP camera system or Wireless AP deployment to enable roaming.

SPECIFICATIONS

- Network Connector: 16-Port RJ-45 for 10/100Base-TX
- PoE Inject Port: 16
- LED: System -Power (Green), Per port - PoE (Orange), LNK/ACT (Green)
- Switch Architecture: Store and Forward
- MAC Address: 8K MAC address table with Auto learning function
- Switch Fabric: 3.2Gbps
- Switch Throughput: 2.38Mpps @ 64Bytes
- Power Requirement: AC 100~240V, 50/60Hz, 2A max.
- Power Consumption: Max.135 Watts / 460 BTU
- PoE Standard: IEEE 802.3af Power over Ethernet
- PoE Power Supply Type: Mid-Span, PSE
- PoE Power Output: Per Port 48V DC, 350mA. Max. 15.4 Watts
- Power Pin Assignment: 4/5(-), 7/8(+)
- PoE Power Budget: 125 Watts
- Operating environment: 0 ~ 50 Degree C
- Storage environment: -40 ~ 70 Degree C
- Operating Humidity: 5 ~ 95%, relative humidity, non-condensing
- Storage Humidity: 5 ~ 95%, relative humidity, non-condensing

- Dimensions (W x D x H): 445 x 207 x 45 mm (1U height)
- Weight: 2.33kg
