16 Port Gigabit Passive PoE Injector

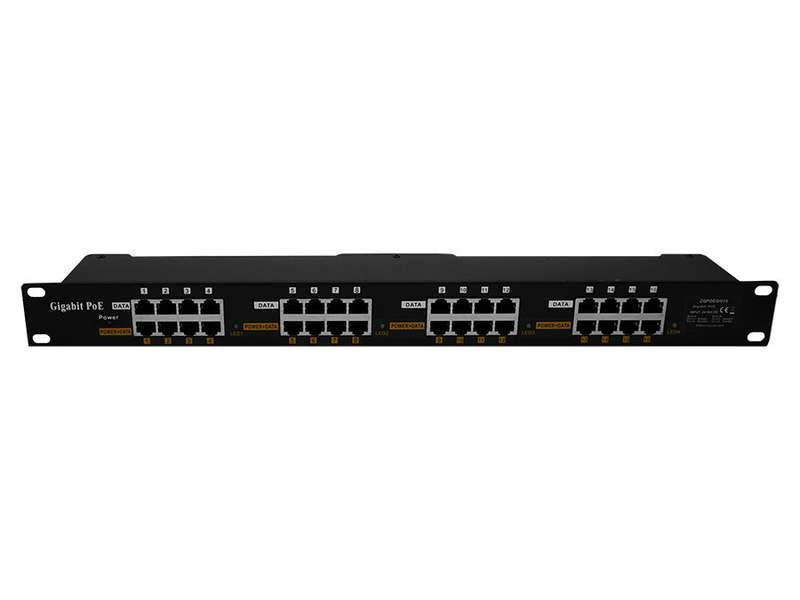

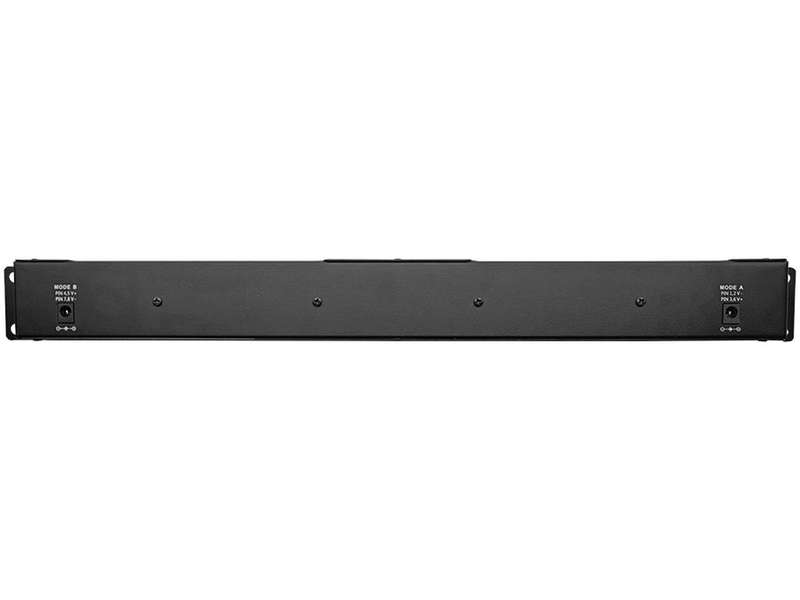

POE-16G, 16 port Gigabit PoE panel features and flexible power (DC 18 - 57V) and can be used with any Ethernet switch. The RJ45 socket delivers data and power. Each socket provides current protection against short overflow. The configuration size of the panel is 1U (height), 19" (width) and 52mm (thickness).

Specifications

Ethernet Ports: 32x 10/100/1000

Operating Temperature: 0°C to 40°C

PoE Mode: Mode A & B (Mid & Endspan) A:+3/6 & -1/2- B:+4/5 & -7/8

PoE Output: PoE Pass-through (Power output determined by PSU)

Power Input: 18-57V Power Supply (Not Included)

Supported Voltage Range: 18-57V
