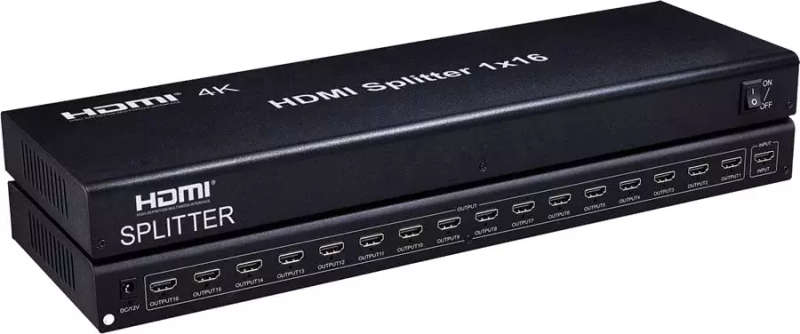

16 Port HDMI Splitter (1x16) | 4k Ultra HD 4096x2160 Resolution

16 Port HDMI Splitter (1x16) | 4k Ultra HD 4096x2160 Max Resolution

Tested 100% with all common HDMI sources such as DSTV Explora Series, AppleTV, Media Players, Sony Playstation, Microsoft Xbox, DVD players and Blu-ray Players on the SA market.

This splitter is an one input, sixteen outputs HDMI splitter. It distributes the single HDMI input into sixteen identical outputs. These sixteen outputs are synchronized.

Specifications :

Splits the HDMI signal to 16 x HDMI display devices simultaneously
Each port supports HDMI or DVI inputs
8dB receiver equalization to compensate for longer length HDMI cable signal losses
3dB driver pre-emphasis to compensate to PCB losses.
HDMI v2.0 and HDCP 1.2 protocol compliant.
Support deep color 36bit and signal retiming.
Support digital audio split in HDMI, such as LPCM / Dolby-AC3 / DTS 7.1 / DSD / Dolby TrueHD / Dolby Master Audio.
Up to 4k UltraHD including Full-HD 1080p cascaded above 3 layers --> These splitters can be stacked in 3-layers on a 16 x 16 x 16 config to distribute the signal from a single source to 4096 displays.

Use high quality Surge Protection plugs on your equipment to ensure unstable power from electrical wall socket / electrical surges will have less chance of damaging your equipment. a UPS (Uninterruptible power supply) is highly recommended in all areas of your home or business where LCD's, players and HDMI Equipment is installed.

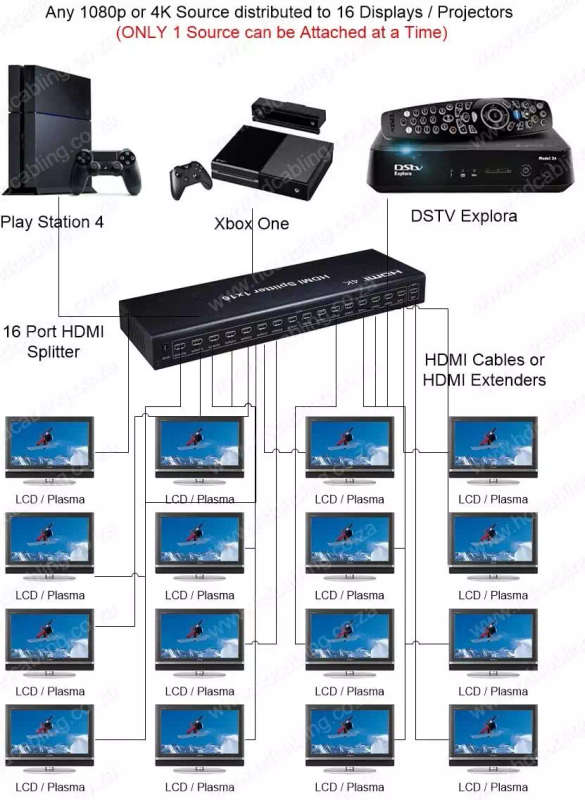

Sample Installation Diagram
