16 PORT UP TO 30W PER POE PORT POWER BUDGET 230W

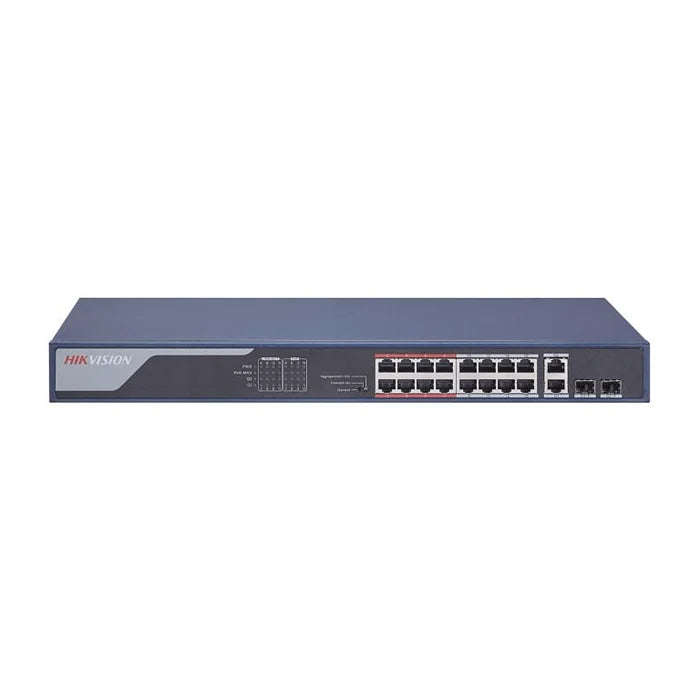

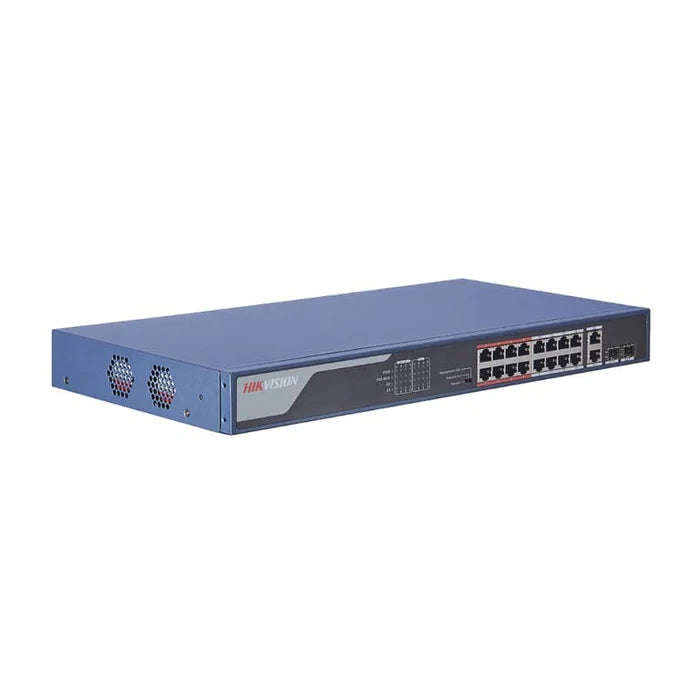

DS-3E0318P-E is a layer 2 100 Mbps PoE switch. Based on wire-speed forwarding, the switch supports Ethernet PoE power supply and extend mode. The power supply distance reaches as long as 300 m. It also supports prior and stable transmission of the important surveillance area video when connected to the high priority ports.

Features

• Intelligent PoE Management: When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission: The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss: 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment: The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
• Design for Video Transmission: VIP port ensures important data transmission when network congestion occurs.
• 16x 10/100 Mbps PoE ports, 2x Gigabit combos
• RJ45 port, full duplex, MDI/MDI-X adaptive
• MAC Address Table - 4000 entries
• Switching Capacity - 7.2 Gbps
• PoE Standard - IEEE 802.3af, IEEE 802.3at
• PoE Port - Ports 1 to 16
• Max. Port Power - 30 W
• PoE Power Budget - 230 W
