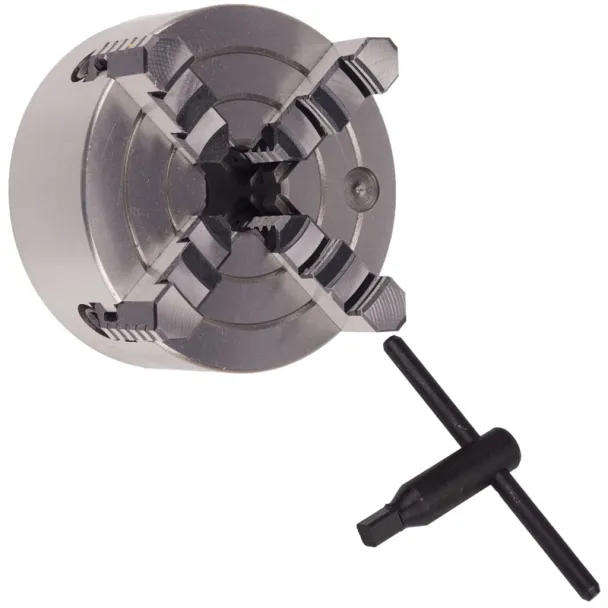

160mm 4-Jaw Independent Chuck
This high-precision 4-jaw independent chuck is commonly used on engineering lathe machines. Each jaw is independently adjustable, making it ideal for securely clamping irregular, square, or off-center workpieces. Built for versatility and accuracy, this chuck is a dependable tool for precision turning tasks.
Features
High-precision lathe accessory
Independently adjustable 4-jaw design
Suitable for clamping off-center or non-cylindrical components
Designed for engineering and metalworking lathes
Includes chuck key for easy operation
Specifications
Chuck Diameter (D): 160 mm
Registration Recess Diameter (D1): 65 mm
Bolt Circle Diameter (D2): 95 mm
Center Hold (D3): 45 mm
Registration Recess Depth (h): 5 mm
Max Height (H): 96.5 mm
Body Thickness (H1): 65 mm
Number of Bolts: 4
Size of Bolts: M10
Handle Length: 160 mm
