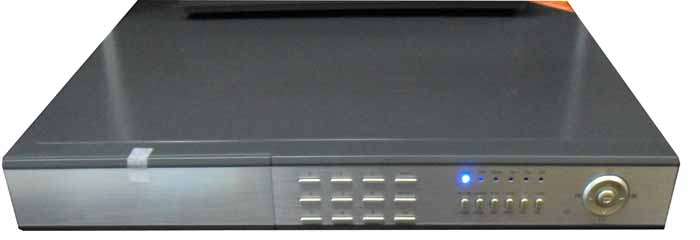

DVR 16 Channel
Compression format: Standard H.264 Baseline
Video output: Composite 1.0V p-p/ 75Ω, BNC x2, S-Video x1, VGA x1
Video Input: Composite 1.0V p-p/75Ω, BNC 16
Display Resolution: 720*576
Record Resolution: 352*288,704*576
Display frame rate: 400FPS
Record frame rate: 200fps, 50fps
Audio input: -8dB~22k, RCA x4
Audio output: -8Db~92dB, RCA x1
Alarm output: 4ch
Record mode: Manual/Sensor/Timer/Motion detection
Simplex/Duplex/Triplex: Pentaplex
Network interface: RJ45 (Lan, Internet)
PTZ control: Yes
Communication interface: RS485, USB 2.0 x2(one for backup, another for the mouse), PS/2 x1
Hard disk info: SATA x 3 + DVD-RW x1
Remote controller: Yes
Power Supply: 12V 5A
