16ch HDMI H.264 Network DVR
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information

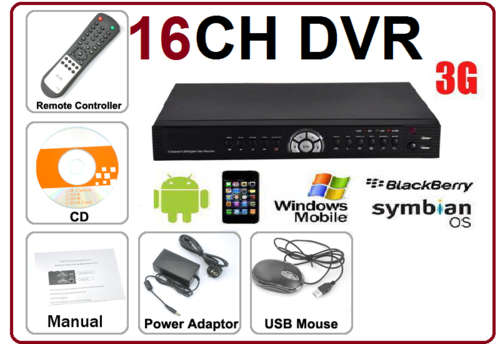

16 Channel H.264 IP Networking Digital Video Recorder DVR
Included Client software/Support Internet Explorer 7 or above / Chrome/ Firefox
Support Android, Windows mobile, symbian, iPhone, Blackberry
VGA port for LCD monitor
Operate by USB Mouse or Remote Control (Both included)
+
This Supreme stand alone H.264 16 Ch DVR System is amazing.
The system has really amazing functions
Motion detection, sensor trigger Alarm, Audio, remote monitoring, PTZ, Alarm
Support D1, HD1 & CIF
Multiplex operation
Full Audio recording , PTZ preset and Cruise Control
Backup with USB , Movable hard disk , Network
Nerwork support UPNP function , easy for setup
Mobile phone surveillance (Win CE/Symbian/iPhone /Blackberry/Android)
Supports HDD up to 2TB
Multiplex operation
Full Audio recording , PTZ preset and Cruise Control
Backup with USB , Movable
Support D1, HD1 & CIF
hard disk , Network
Nerwork support UPNP function , easy for setup
Mobile phone surveillance (Win CE/Symbian/iPhone /Blackberry/Android)
Supports HDD up to 2TB
Video Input / Output: NTSC / PAL: BNC 16CH Video Input / 1CH Output
Audio Input / Output: Audio In: RCA 2CH
Audio Out: RCA 1CH,
Operating system: Embedded LINUX OS
Recording Resolution & Frame Rate: NTSC: 480FPS@CIF
PAL: 400FPS@CIF
Playback Resolution & Frame Rate: NTSC:30fps/1CH(CIF)
PAL: 25fps/1CH(CIF)
Video display: 16/8/4/1 channel
Multiplex operation: Live, Recording, Network, Mobile phone, Surveillance Simultaneously
Compression Format: Video:H.264 Baseline Compreession; Audio: G.726 8k*16bit ADPCM Mono
Hard Disk Capacity: SATA interface HDD x 1,Up to 2TB
Recording Mode Manual/ schedule/sensor trigger/motion detection/power-on auto record
Recording quality: High Normal Low
Sensors, Alarm 8 Input, 1 Output
Recording playback: 1/4/8/16 channel playback simultaneously(Optional playback channel),Support remote file playback,Rapid play by times(Fast Backward),Play by frame etc.
Network and protocol: 1 RJ-45 10/100M via Ethernet,Support TCP/IP,DHCP,DNS,DDNS,NTP etc.
Media Backup: 1 USB 2.0 port for USB flash disk
PTZ Control: RS-485,Support tracking routes,Pelco-D,Pelco-P
Email Alarm: Send pictures to the designated Email
Client Software: Client Software
Dual Stream: Support(main and secondary interchange)
Group play: Suport five users online access
Mobile phone surveillance: Support Windows, Symbian, Iphone, Blackberry, Android
User Authority: Suport Multi-level user authority distribution
IR Remote Control Unit: Yes
USB Mouse: Yes
