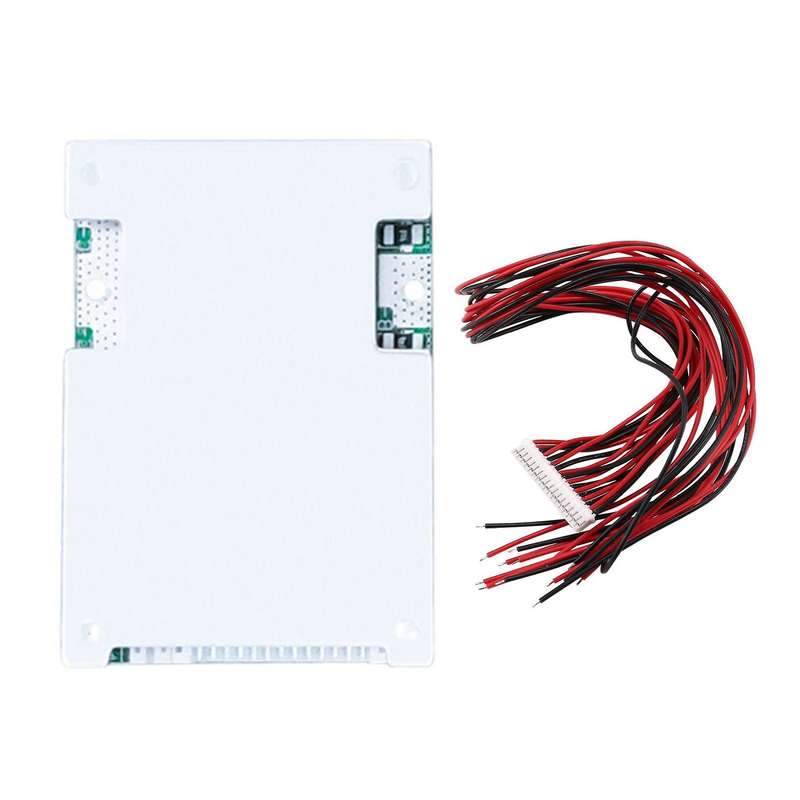

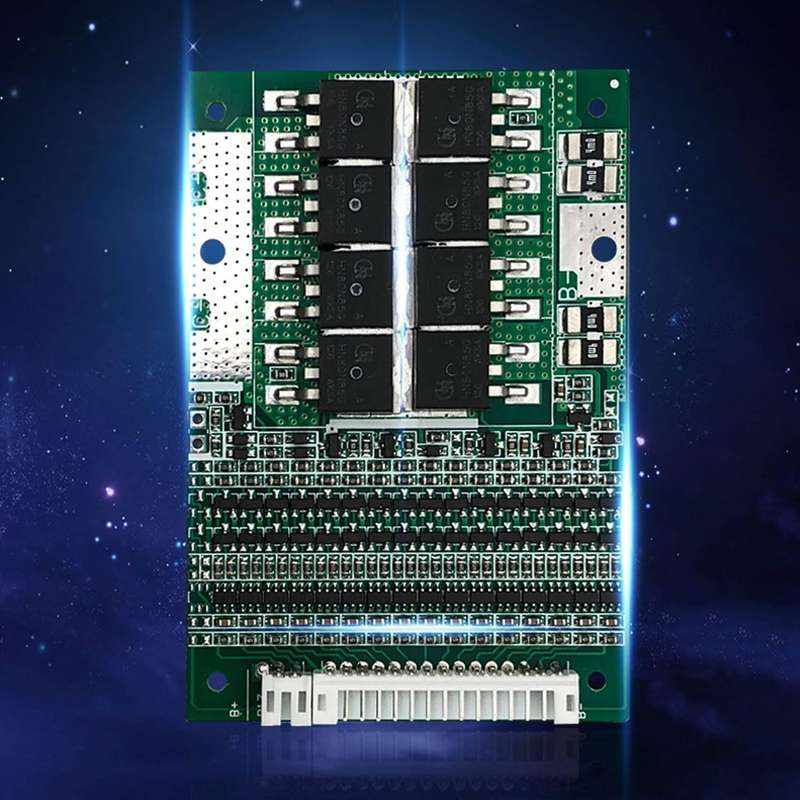

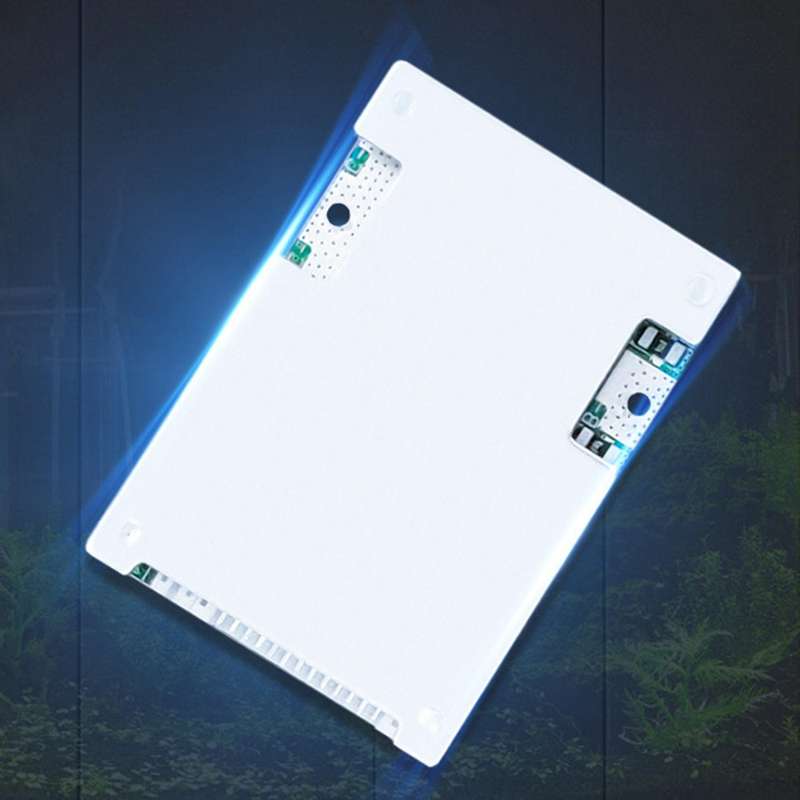

16s 30a 48v Lifepo4 Battery Protection Board Bms with Balance for E-bike Escooter Electric Vehicle M

Scope of application: 18650 special lithium battery protection board, scooter, drift car protection board, solar street light, LED protection board, motorcycle lithium battery protection board, tricycle protection board, backup lithium battery protection boardContinuous Discharge Current: 30A.Instantaneous discharge current:100A. Charging voltage: 60V. Maximum charging current: 30AOvercharge detection voltage: 3.750.025V. Overcharge protection delay: 10030ms. Overcharge release voltage: 3.60.05V. Battery balance detection voltage: 3.60.025V. Battery balance release voltage: 3.60.05V. Battery balance current: 365A. Overdischarge detection voltage: 2.10.08V.Overdischarge detection delay: 100ms. Overdischarge release voltage: 2.30.1V. Overcurrent detection voltage: 150mV. Overcurrent detection delay: 10ms. Overcurrent protection current: 13020A.Overcurrent protection release condition: disconnect load. Short circuit protection condition: external load short circuitShort circuit detection delay: 200uSShort circuit protection release condition: disconnect loadMain circuit conduction internal resistance: less than equal 15mohmWorking current: less than equal 50uASleep current (when the battery is over-discharged): less than equal 10uATemperature range: -30\/+80CConnection Using:1. First connect the B- line to the battery negative terminal (the B- line must be soldered with a short wire), and then connect the flat cable (before connecting the flat cable, be to unplug the flat cable from the board)2. Start wiring from B-, connect B- to the negative electrode of the battery, connect the second cable B-1 to the first positive electrode of battery, and connect the third cable B-2 to the second positive electrode of battery, and the fourth cable B-3 is connected to the ird positive electrode of battery...and so on3. Finally, measure whether the battery voltage is equal to the output voltage of the protection board, and the protection board works normally if it is equal.Please note: Different batches, product appearance and color may be different, does not affect the useColour:silver + greenMaterial:Metal+PCBSize:80 x 55 x 10mmPackage Contents:1 x Protection Board1 x CableOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
