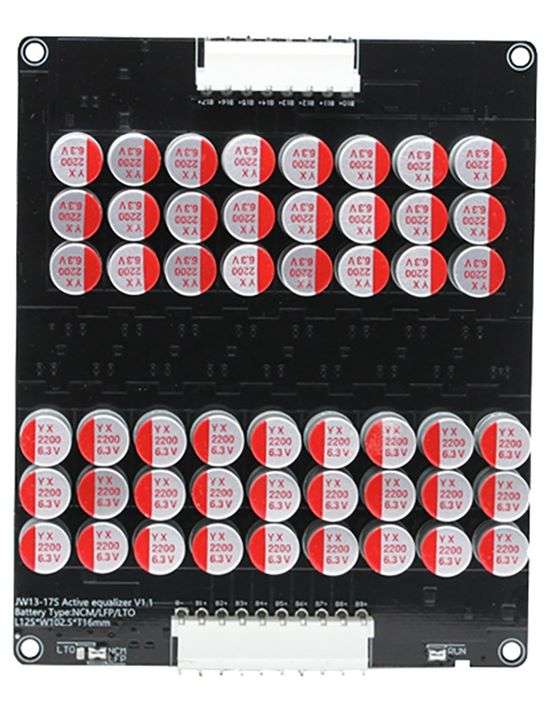

16S 5A Balance Li-ion LifePO4 LTO Lithium Battery Active Equalizer Balance Board

This 16S 5A Balance Li-ion Lifepo4 LTO Lithium Battery Active Equalizer Balancer Board helps extend the life of your battery by actively balancing the voltage difference between battery packs. Compatible with Li-Ion, LifePO4, and any capacity battery, this equalizer can help reduce battery degradation and extend the battery life. The balancing current is fixed, meaning that the balancing time increases with battery capacity. It does not provide overvoltage, overcurrent, and over-discharge protection, but can be used with a BMS for added protection.

• Operating voltage 1.8V-4.5V, suitable for Li-ion, LiFePo4, and lithium titanate.
• Working principle: the balanced work will be started when the balanced board is connected to the battery. The original ultra-low internal resistance MOS and 2OZ thick copper PCB are adopted, And the balanced current is 0-5.5a, the more balanced battery, the smaller the balanced current.
• The static current is around 12 mA. It is recommended that the battery capacity should be in the range of 60-300AH!
• With Undervoltage dormancy protection.
