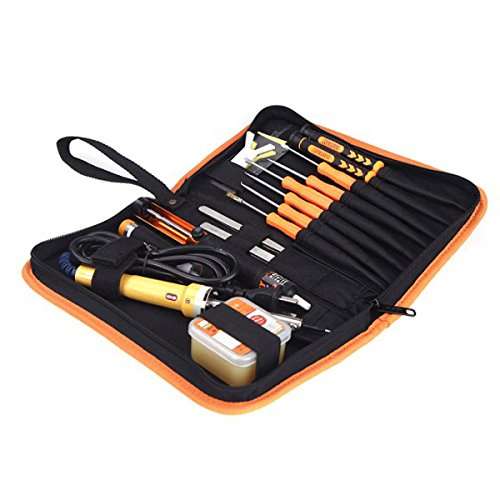

17 in 1 Primary D.I.Y Welding Tool Set JM-P03 with 30W 220V Electronic Solder - H10938

Features:

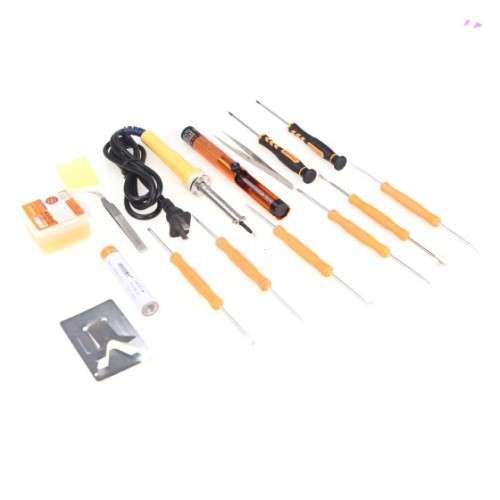

This set includes 16pcs useful accessories, common used in soldering components to printed circuit boards and soldering a spliced wire joint.

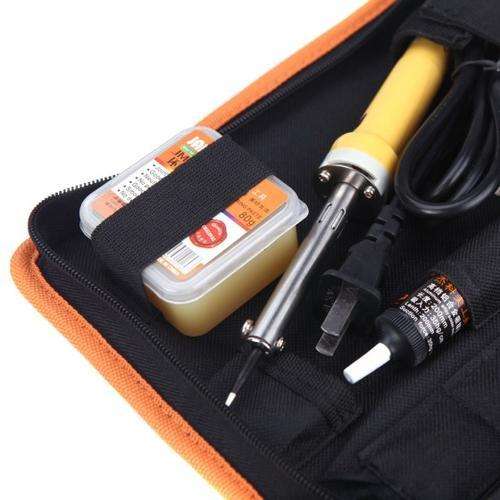

-Electronic Solder

Model: JM-SL O1

Power: 30W

Voltage: 220V

Plug: US

Max. temperature: 500 degree

Soldering iron length: 21cm / 8.3in

Power cord length: 130cm / 4.27ft

Operating under constant temperature is suitable for soldering mobile components.

Heat-resisting handle, safer and more durable.

-Soldering Thin Sucker

Model: JM-Z02

Length: 20cm / 7.9in

Suction force: 35hg / cm

Aluminum alloy material handle, better sealing and powerful suction.

Heat-resistant, unbendable with TPE material tip.

Design to remove the solder from the circuit boards and more.

Easy to use: Simply depress the plunger, place the tip of the nozzle against the solder you wish to remove.

-Solder Wire

Model: JM-SW-01

Wire diameter: 1.0mm

Total length: Approx. 2.8m / 1.1in

Flux: 1.8%

Melting point: 250-300 degree

Lower melting point, easier to use with rosin flux solder oil helps cleaning surface coating, protecting the tip.

-Soldering Paste

Model: JM-SW-03

Melting point: 60-80 degree

Weight: 80g / 2.8oz

Good immersion, good insulation, smooth welding surface.

-Tweezer

Model: JM-11 & JM-15

Quantity: 2pcs

High hardness tweezer set, durable and unbendable.

-Screwdriver

Model: JM-8119

Material: CR-V

Quantity: 2pcs

Length: 17cm / 6.7in

Disassembling tools.

Non-slid handle design with PP & TPR material.

Rotating design on top, more flexible and durable.

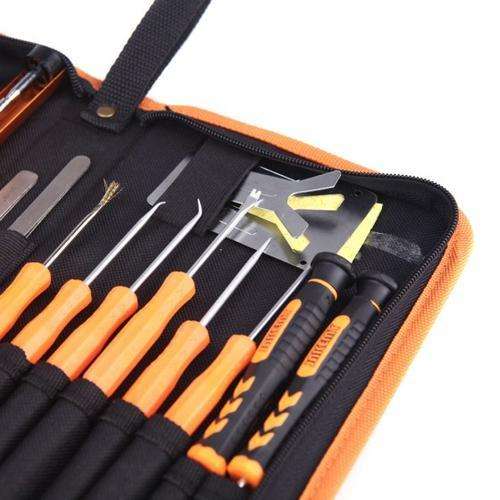

-Soldering assistant

Quantity: 6pcs

Material: Metal

Length: Approx. 18.5cm / 7.3in

6 different type of solder assist tools, convenient to operate on soldering, cleaning and  component hooking.

Double head, double use.

-Soldering iron stand

Easier to prepare space to work.

-Cleaning Sponge

Cleaning sponge for soldering iron tip, easy to clear when dipping the water.

Specifications:

Type: Primary D.I.Y welding tool set

Model: JM-P03

Quantity: 16pcs

Color: Black & orange & slivery

Total size: 26.5 * 15 * 4.5cm / 10.4 * 5.9 * 1.8in

Total weight: 651g / 1.44lb

Package List:

1 * Primary D.I.Y Welding Tool Set

1 * User Manual (English & Chinese)
