Name: 170° Fish-Eye Lens Universal AHD 1080P/CCD Car Camera
SKU: 7111844331
Price: 295.00 ZAR
Availability: InStock

170° Fish-Eye Lens Universal AHD 1080P/CCD Car Camera

New

1 available

Only 1 left – grab it before it’s gone!

R295.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Little Tokyo5297

96.81 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

7111844331

Bob Shop ID

642042693

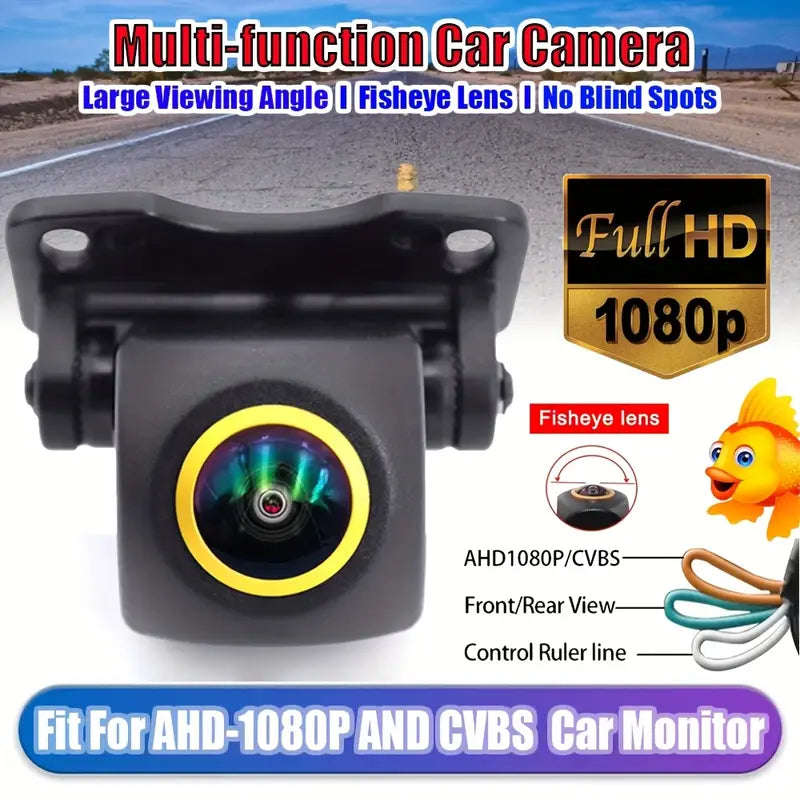

170° Fish-Eye Lens AHD 1080P/CCD Car Camera, a Versatile Backup Camera Suitable for Front, Side, And Rear Views, Compatible with All Vehicles

Capture all angles with this versatile 170° Fish-Eye Lens AHD 1080P/CCD Car Camera. No need for batteries, this camera is compatible with all vehicles, providing front, side, and rear views for enhanced safety and convenience. Expertly designed for a clear and accurate view.

USER MANUAL

Please be aware that the AHD-1080p signal format is compatible only with AHD-1080p monitors. Ensure that your car monitor can handle the AHD-1080p signal. If it cannot, switch to CVBS and restart the camera's power.

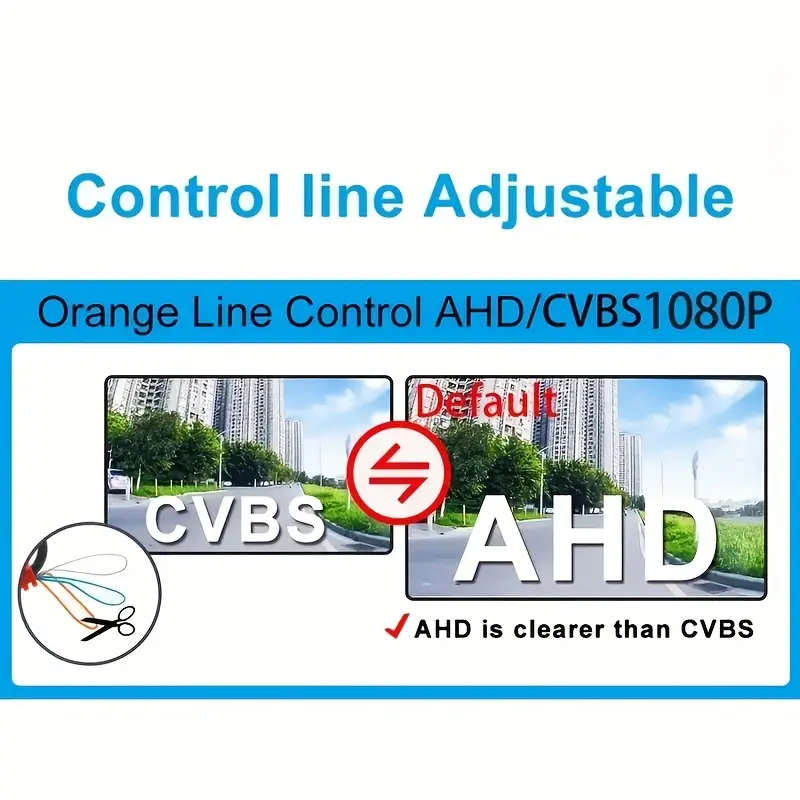

If your vehicle's display is incompatible with the AHD-1080p camera, the AHD-1080p signal will fail to function. Please cut the orange loop to switch to CVBS signal and restart the camera's power.

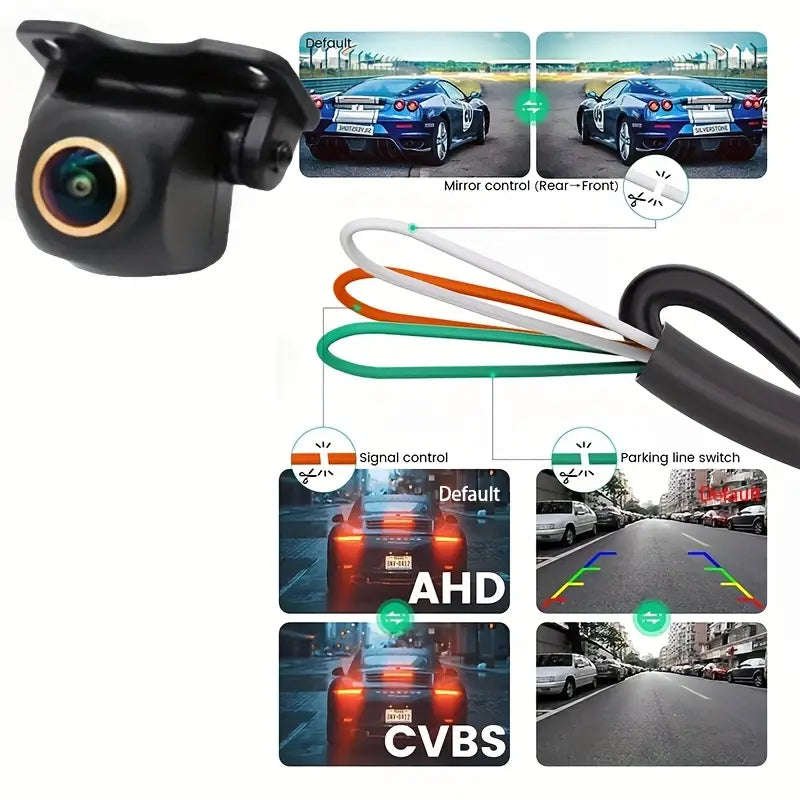

The three features that are operated by cables

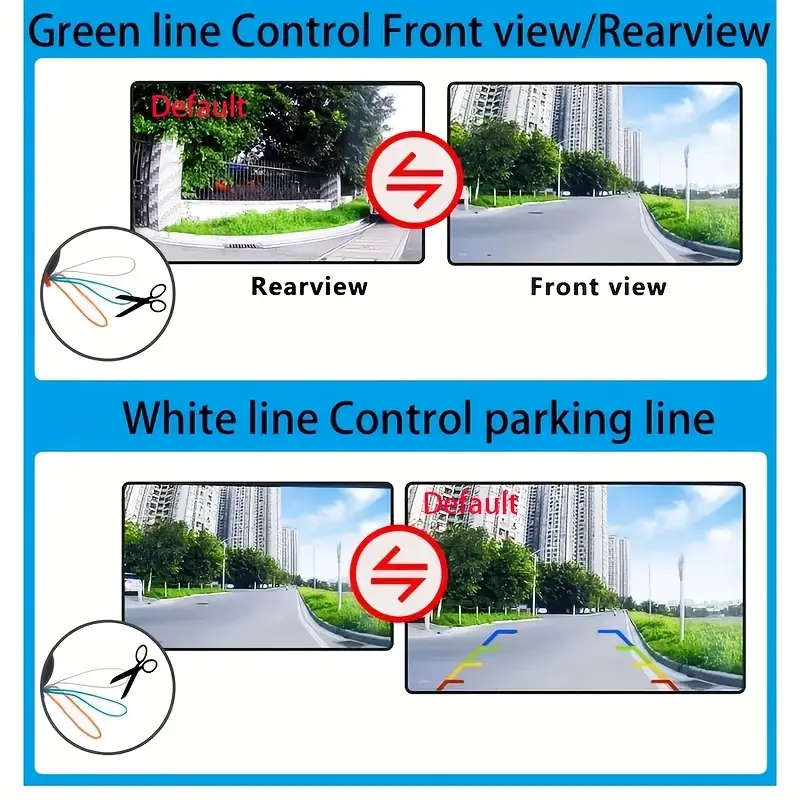

Orange wire: AHD-1080p output (standard) To change to CVBS output (disconnect) Green wire: Mirror function (standard) To change to Front view (disconnect)

White: Guideline active (standard) To change to guideline inactive (disconnect)

What steps should I take if the rear view camera is connected but the display shows a gray screen with no signal or image?

A) Verify the format of your signal (AHD-1080p/CVBS) and select the appropriate signal to operate the camera.

B) Ensure your connections are correct; the red trigger wire must be linked to your reverse light and the monitor's reverse-in cable.

C) If your monitor supports AUX-IN, you can connect it to the AUX-IN port.

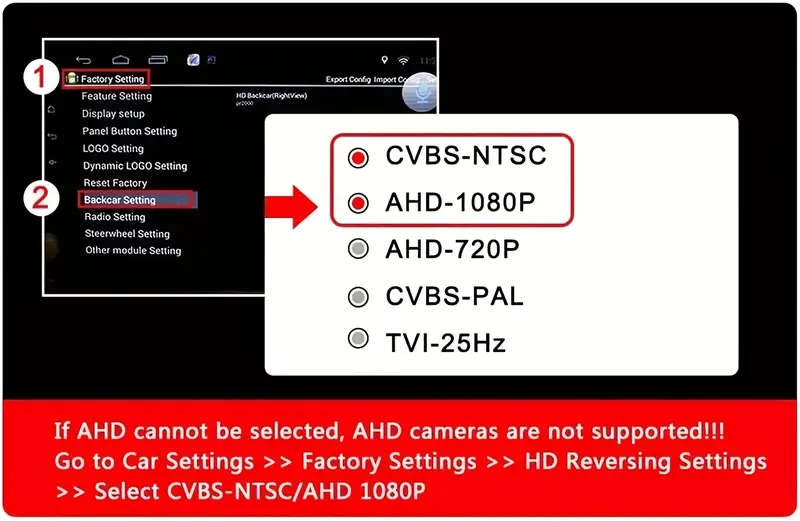

Selecting an incorrect signal standard (like PAL or NTSC) will result in a gray and white screen. Please choose the correct signal standard to operate the camera and then restart the camera's power. The CVBS camera uses the NTSC standard, while the AHD1080P camera operates on the PAL standard.
