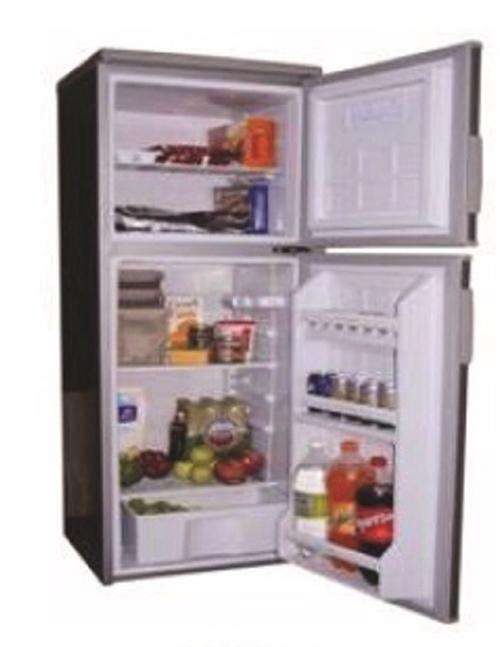

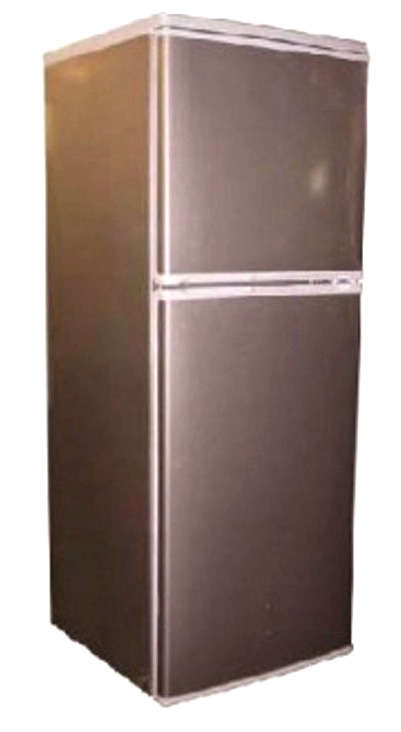

176L Battery Solar Fridge/Freezer Zero Appliance- Metallic

176L Battery Solar Fridge/Freezer Zero Appliance- Metallic

SPECIFICATIONS

Features

ETS 180 DC (Battery Solar Fridge/Freezer)

• Model ReferenceETS 180DC
• Doors/Lids*S*2

Specifications

• Total Capacity (L) 176L
• Total Capacity (CuFt.)6.2
• Refrigerator Capacity (L)118L
• Freezer Capacity (L)58L
• Basket/Shelves Supplied2 X Glass
• H.S Code8418.10.90
• FZR Cap/24Hrs2.61Kg
• Footprint Area0.26 m²
• Electric ThermostatYes
• Cord LengthSee Optional Extras

Hot Zone Appliance (+43°C)NO
Temperate Zone Appliance (+32°C)YES

Climate ClassN
Star Rating3

Energy Source12V Battery Solar
Colour OptionsWhite & Metallic

System Requirements

• Minimum Panel Output180 Watts
• Minimum Battery Output200 Ah

Dimensions

• Boxed Dimensions (mm)(H) 1570mm x (W) 510mm x (D) 510mm
• Unboxed Dimensions (mm)(H) 1537mm x (W) 475mm x (D) 480mm
• Weight (Kg's) – boxed42kg
• Weight (Kg's) – unboxed40kg

Container Quantities

• 20'44
• 40'96
• 40'HC96

System Includes

• 180W - 250W solar panel
• 2 X 102 Amp Hour deep cycle batteries
• 20 Amp Solar Charge Controller
• Earth Rod (10mm X 1100mm)
• Connector box, commoning block, earth lug and pin lugs (for 10mm cable)

Optional Extras

• (Please note that both Black and Red will be required for the system)
• 4mm square cable – Red (this connects from the solar panel to the solar controller and then to the fridge or chest freezer) – standard requirement is approx. 15 meters but you may need more or less
• 4mm square cable – Black (this connects from the solar panel to the solar controller and then to the fridge or chest freezer) – standard requirement is approx. 15 meters but you may need more or less
• 10mm panel wire – Red (this connects from the solar controller to the battery system) - standard requirement is approx. 1,5 meters but you may need more or less
• 10mm panel wire – Black (this connects from the solar controller to the battery system) - standard requirement is approx. 1,5 meters but you may need more or less
• 6mm earth cable (length required is dependent upon distance from panel to the ground fixture to earth rod)
• Cable protector conduit to protect the cables from external elements
• Cable protector glands (2 required if cable protector is opted for)
• Adjustable solar panel frame made from Aluminium angle iron and includes 24 Stainless Steel bolts and 24 Stainless Steel Nyloc nuts

Please Refer to Shipping Charges
