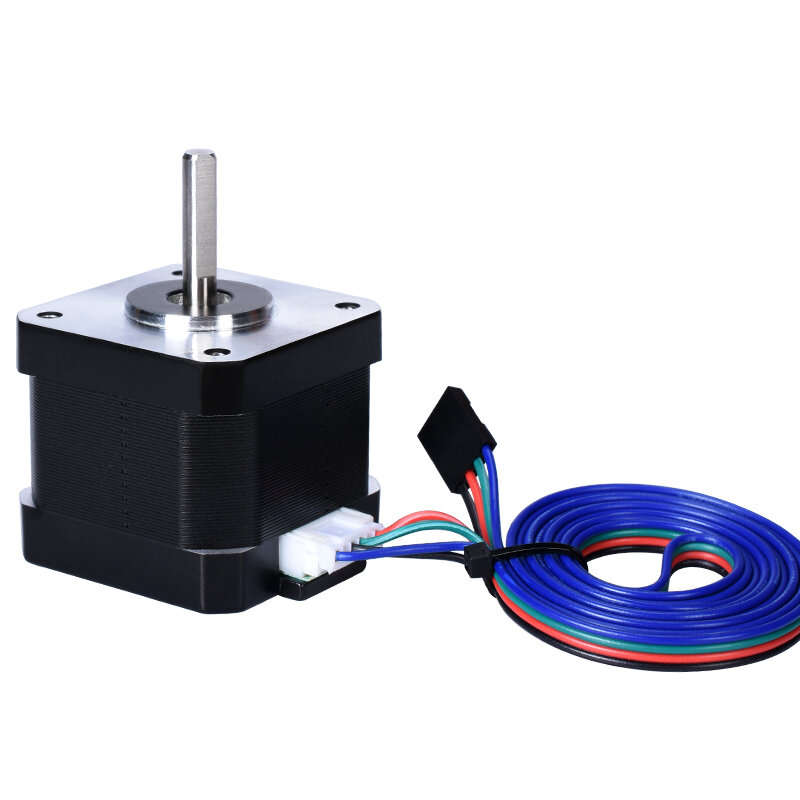

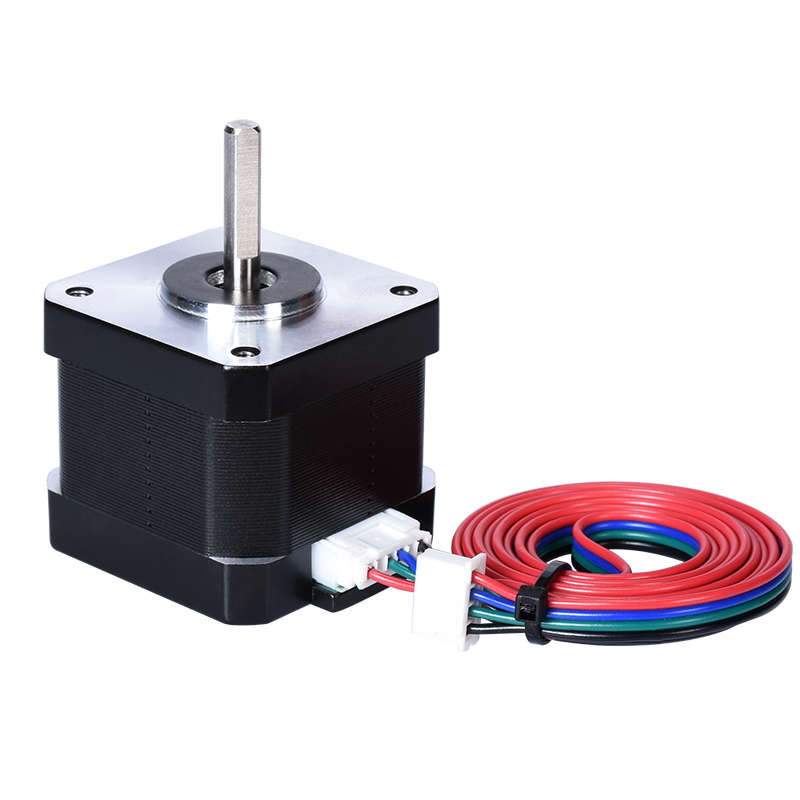

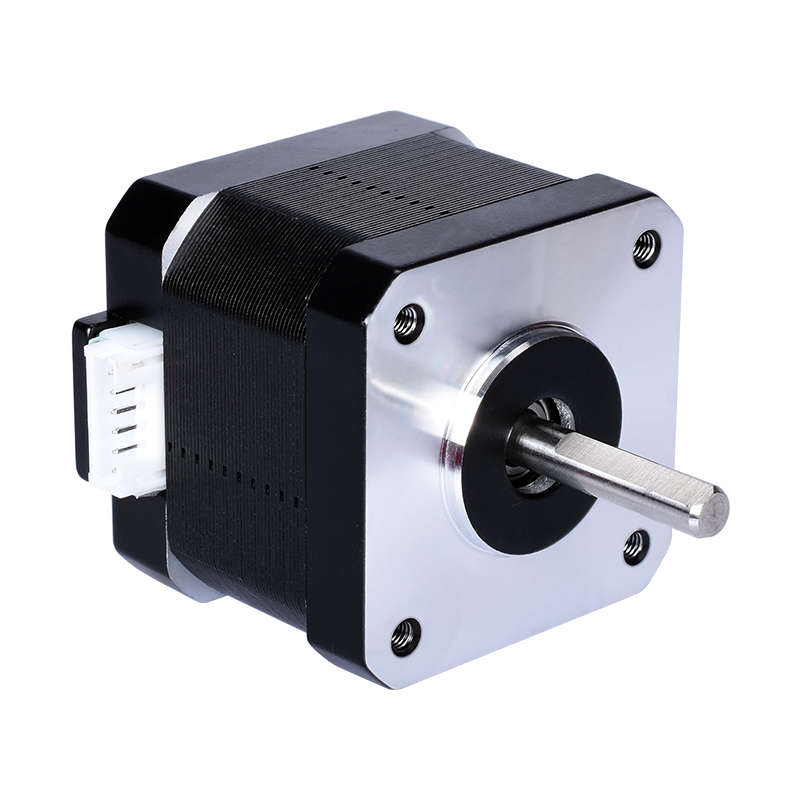

17HS4401-S 40mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.7A 40N.cm 4-lead Motor for 3D printer CNC La

New 1 was available
Indicative market price: R1,368.75
R825.00
40% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1760512
Bob Shop ID
647418709
Specification:
Model 17HS4401-S
Phase 2
Step Angle 1.8°
Motor Size 42 x 40mm
Shaft 'D' shaft 22 x Ð¤5mm
Outlet way '4' plug line
Motor leads Dupont line(1M)
Adapter drive Two-phase step drive
Scope 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Stage Lighting, Laser engraving, Automation
Equipment,  Non-standard Equipment, Placement machine ect.

Electrical Specifications:
Model No. Step Angle Motor Length Rated
Current
Resistance
/Phase
Inductance
/Phase
Holding Torque Detent
Torque
Inertia Of
Rotor
  Lead
( °) (L)mm (A) (Ω) (mH) (N.cm)  (N.cm)  (G. cm²) (No.)
17HS4401-S 1.8 40 1.7 1.5 2.8 40 2.2 54 4

General Specification:
Precision angle step ±5% (full step, no charge)
Resistance accuracy ±10%
Precision inductance ±20%
Temperature rise 80deg Max (rated current, 2 phase on)
Ambient temperature ( - 20°)-(+ 50°)
Insulation resistance 100MΩ Min, 500VDC
Insultion Force 500VAC for a minute

Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.
5. Black surface treatment.

Package Included:
1 X 17HS4401-S Stepper Motor
