Name: 18 CHANNEL 12V 20A POWER SUPPLY BOX 18 CHANNEL 12V 20A POWER SUPPLY BOX 18 CHANNEL 12V 20A POWER SUP
SKU: 18 CHANNEL 12V 20A POWER SUPPLY BOX 18 CHANNEL 12V 20A POWER SUPPLY BOX 18 CHANNEL 12V 20A POWER SUP
Price: 480.00 ZAR
Availability: SoldOut

18 CHANNEL 12V 20A POWER SUPPLY BOX 18 CHANNEL 12V 20A POWER SUPPLY BOX 18 CHANNEL 12V 20A POWER SUP

New

20 were available

Indicative market price: R999.00

R480.00

52% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

TECH WHOLESALE1159

85.71 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

18 CHANNEL 12V 20A POWER SUPPLY BOX 18 CHANNEL 12V 20A POWER SUPPLY BOX 18 CHANNEL 12V 20A POWER SUP

Bob Shop ID

564210047

Description

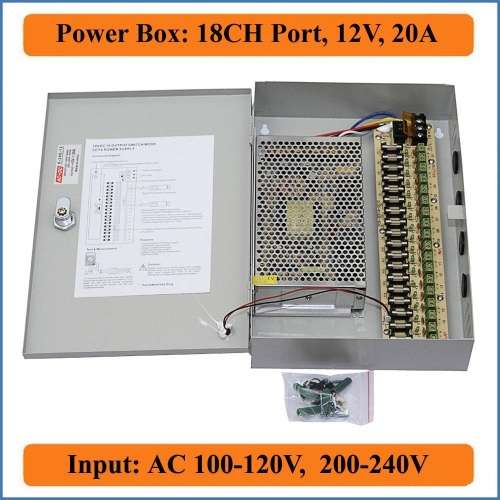

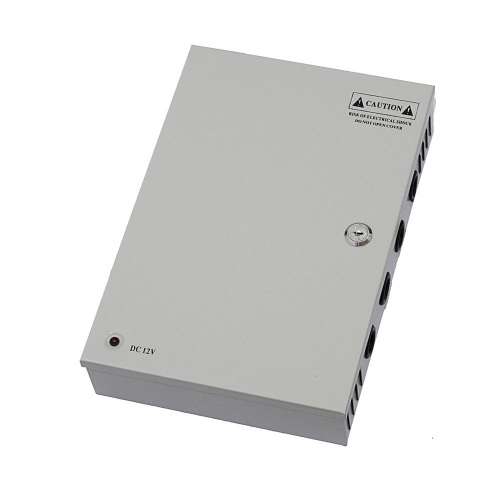

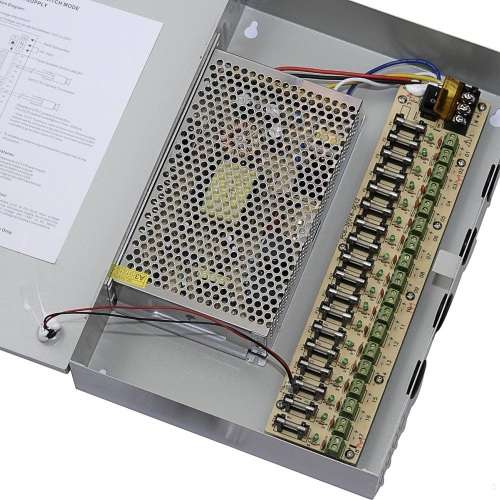

18 Port 12V 20A CCTV Camera Power Box 18CH channel Port CCTV PTC Fuse Distributed Power Supply Box for Security Video Cameras

Specification:

OUTPUT DC Port: 18CH Channel

OUTPUT DC VOLTAGE: DC 12V

RATED CURRENT: DC 20A

RATED POWER: 240W

Support to: 18PCS Cameras

RIPPLE&NOISE: 120mVp-p

SETUP,RISE TIME: 500ms,20ms/230VAC

HOLD UP TIME(TYP.): 30ms/230VAC 25ms/115VAC at full load

INPUT VOLTAGE RANGE: AC 110-120V 60Hz, AC 200-240V 50Hz

FREQUENCY RANGE: 47-63HZ

EFFICIENCY(Typ.): > 80%

LEAKAGE CURRENT: 1mA/240VAC

PROTECTION: OVERLOAD, 105-150% RATED OUTPUT POWER

Protection type: Hiccup mode, recovers automatically after fault condition

OVER VOLTAGE: 115-135% RATED OUTPUT VOLTAGE

Protection type: Hiccup mode, recovers automatically after fault condition

ENVIRONMENT: WORKING TEMP -10~+60°C

WORKING HUMIDITY: 20-90%RH non-condensing

STORAGE TEMP,HUMIDITY: -20~+85°C,10-95%RH

TEMP.COEFFICIENT: ±0.03%°C(0-50°C)

VIBRATION: 10-500HZ

WITHSTAND VOLTAGE: I/P-O/P:1.5KVAC

ISOLATION RESISTANCE: I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH

EMI CONDUCTION&RADIATION: Design refer to GB4943,UL60950,EN60950

EMC STANDARD: Design refer to GB9254,EN55022 Class A

DIMENSION: 315X220X60 mm

PACKING: 2.82kg, 10pcs/27kg

Package Content:

1*18CH 12V/20A Power Box
