NOTE: In fact, the Bluetooth module has been revised: the Bluetooth module has been integrated. The Bluetooth module cannot be seen outside, but the Bluetooth function is normal.
Software Download Way:
1, User manual, PC software installation instruction and PC software and Android APP download link :
2, IOS APP: search E_test on to download
3. Android APP: search E-test at Google play to download
Features:
- Compatible with four major online APPs (Android, Apple, PC all-pass kill) Simultaneously compatible with four major discharge modes (constant current, constant power, constant resistance, and constant voltage full coverage) At the same time compatible with both Bluetooth wireless and wired connection The high-power and large-discharge tube discharge test summarizes hundreds of large-scale instrumentation circuit principles and evolutionary extractions. All the major advantages are integrated into one screen. The discharge aging screen displays a variety of parameters. The test is convenient, fast and powerful! Play test diversification!
- With external wired NTC temperature probe to achieve internal and external dual temperature measurement, suitable for more occasions!
- Three intelligent safety protections, real-time monitoring of the status of the discharge tube, safe and reliable!
- Built-in intelligent temperature-controlled fan switch and temperature-controlled speed design reduce fan noise and extend fan life!
Specifications:
Power Supply: 12V DC
Test voltage: 2~200V
Working current: 0.2~20A
Condition of fan rotation: when the temperature is greater than 10W or the temperature is higher than 45°
DL24P Discharge power: voltage * current < 180 W
(The actual running current is limited by the maximum power, please adjust the current according to the law of energy conservation)
The built-in over-current, over-temperature, over-power safety protection functions, if the protection interface is popped up, please pay attention to the parameter adjustment, shall adjust to the maximum power, and then discharge, you can first slowly and smoothly adjust the preset value in the start and discharge, in order to adjust up to the maximum power for dischargin

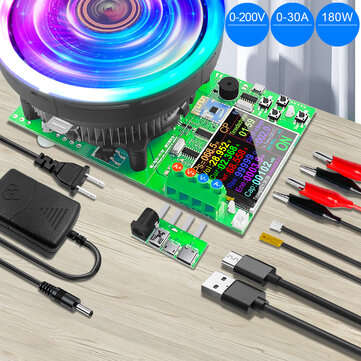

Product Included:
1 x DL24P Load Tester
1 x DC12V 1A Power Supply
1 x PC Computer Online Line
1 x Temperature Probe
1 x Red and Black Single Line Crocodile Clip Line
1 x US to EU Adapter
