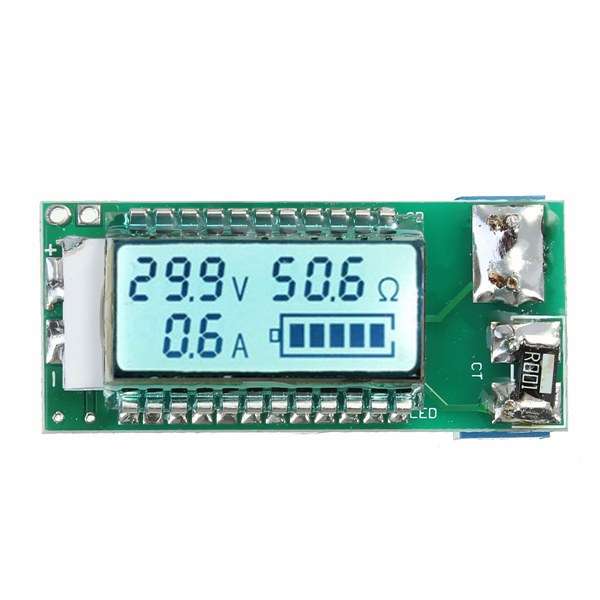

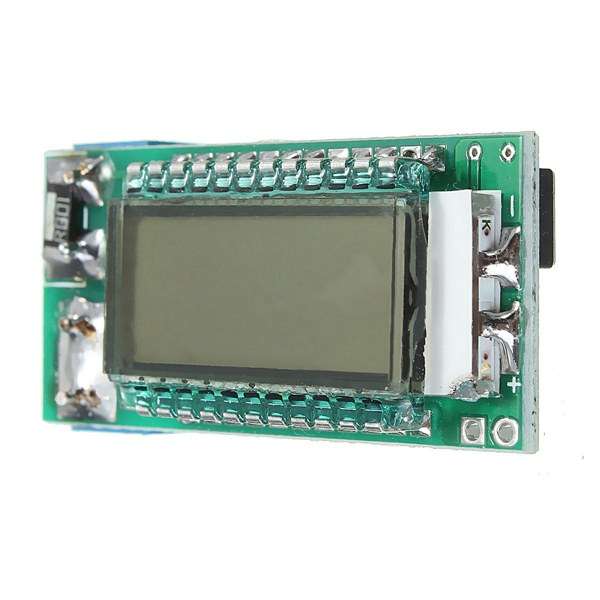

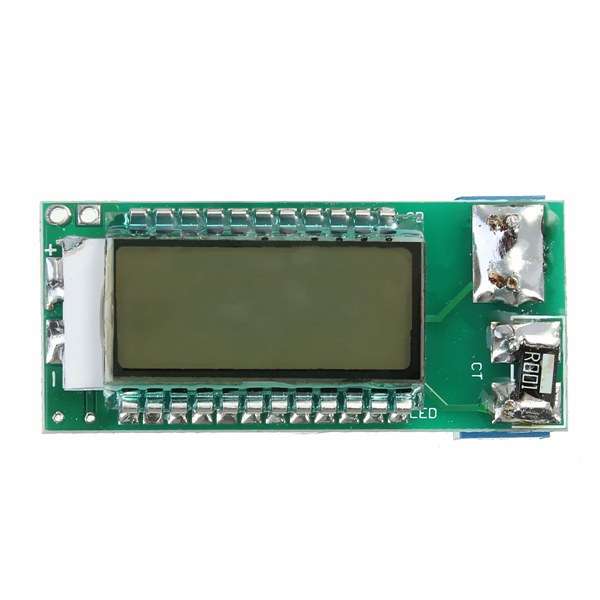

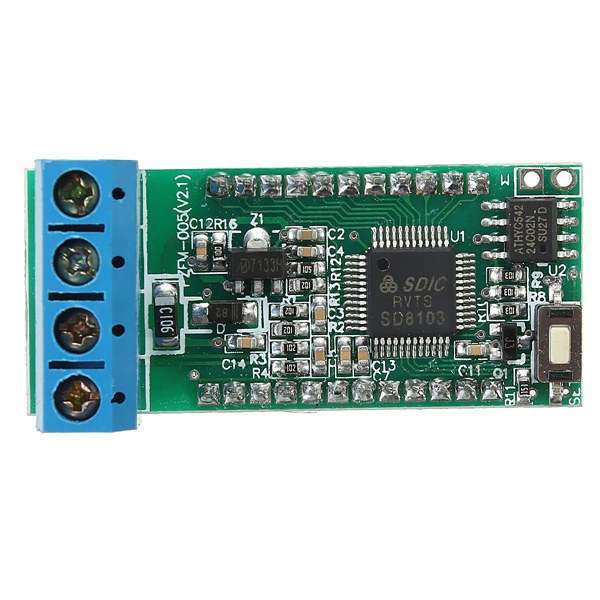

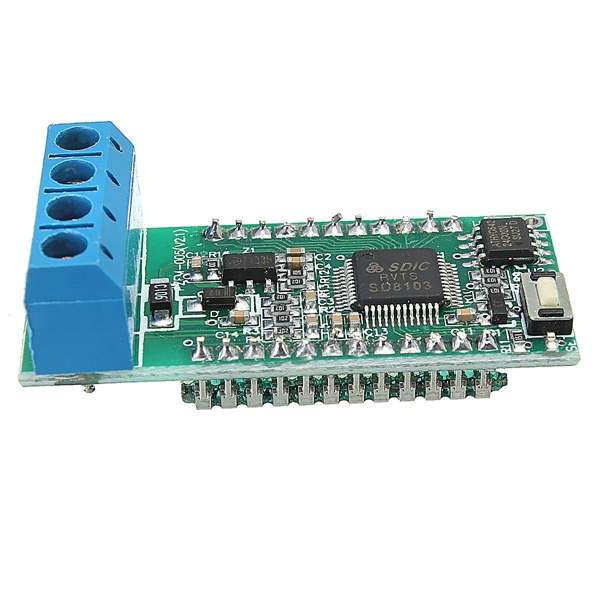

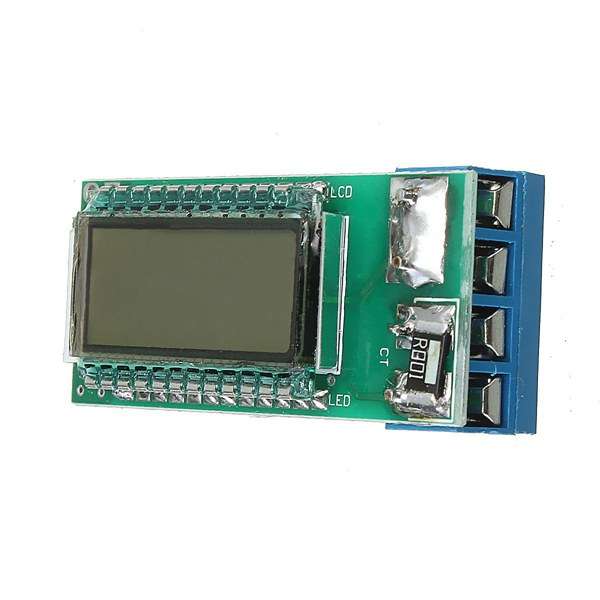

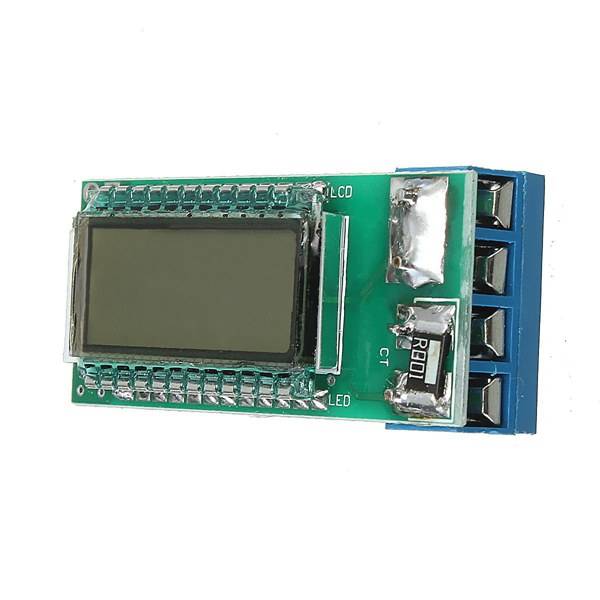

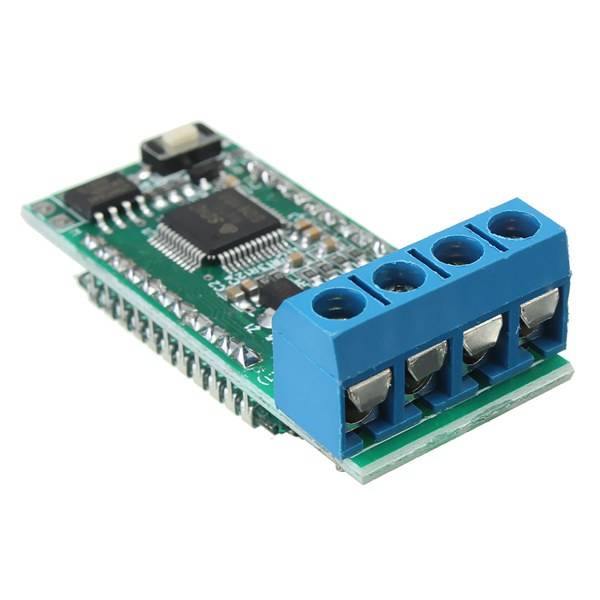

18650 26650 Lithium Li-ion Battery Tester LCD Meter Voltage Current Capacity

18650 26650 Lithium Li-ion Battery Tester LCD Meter Voltage Current Capacity
Features:
Voltage: 2.8-30.0V
Current: 0-10.0A
18350/18650/26650
Resolution: 0.1
Accuracy: ±2%
Measure: Voltage/current/capacity/the load resistance
All in one meter
Suitable for: 18350 18650 26650 lithium li-ion battery and other battery for DIY project
Function description:
Measure the battery voltage
Range: 2.8~3.0V
Resolution: 0.1V
Accuracy: 2%
Measure the battery capacity
Battery capacity is the battery grid form on the LCD display, a total of five girds.
Battery capacity is distinguished by the battery voltage
Displaying X0 grids stand for full capacity, X1 girds for 4/5 capacity, X2 grids for 3/5 capacity, X3 grids for 2/5 capacity, X4 grid for 1/5 capacity, X5 grid for 0/5 capacity.
(default:  3.7V full capacity, 2.8V is exhausted)
Can be set the full capacity 2.9v-30.0V, the exhausted 2.8V-29.9V
Measure the current:
Range: 0.0~10.0A
Resolution: 0.1A
Accuracy: 2%
Measure the resistance of the current:
Range: 0.0~10.0A
Resolution: 0.1A
Accuracy: 2%
Measure the resistance of the load:
Range: 0~999Ω, when over 999Ω display “OL”
Resolution: when less than 10Ω, resolution is 0.01Ω
When less than 100Ω, resolution is 0.1 Ω
When less than 1000Ω, resolution is 1 Ω
Accuracy: 2%
With Backlight, default off-backlight, you can turn on/off the backlight by button
Specifications:
Size: 42 x 19 x 12mm
Display size: 25 x 12mm
Note: battery: ≥2.8V
Working temperature: -10¿¿¿ to 40¿¿¿
Package included:
1 x Lithium Li-ion battery tester module
