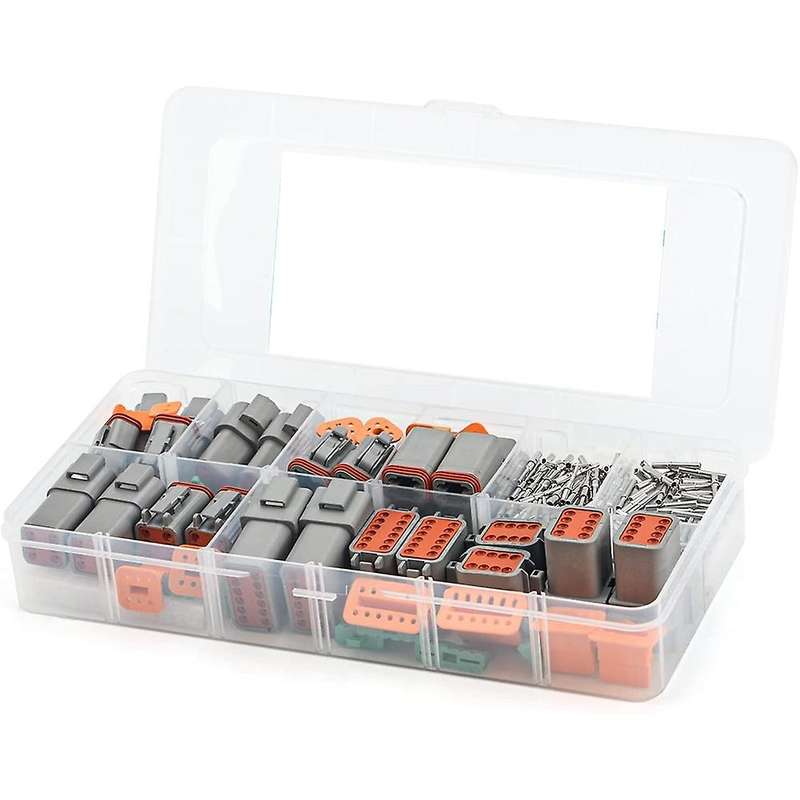

188pcs Deutsch Dt Gray Connector Kit Automotive Connectors

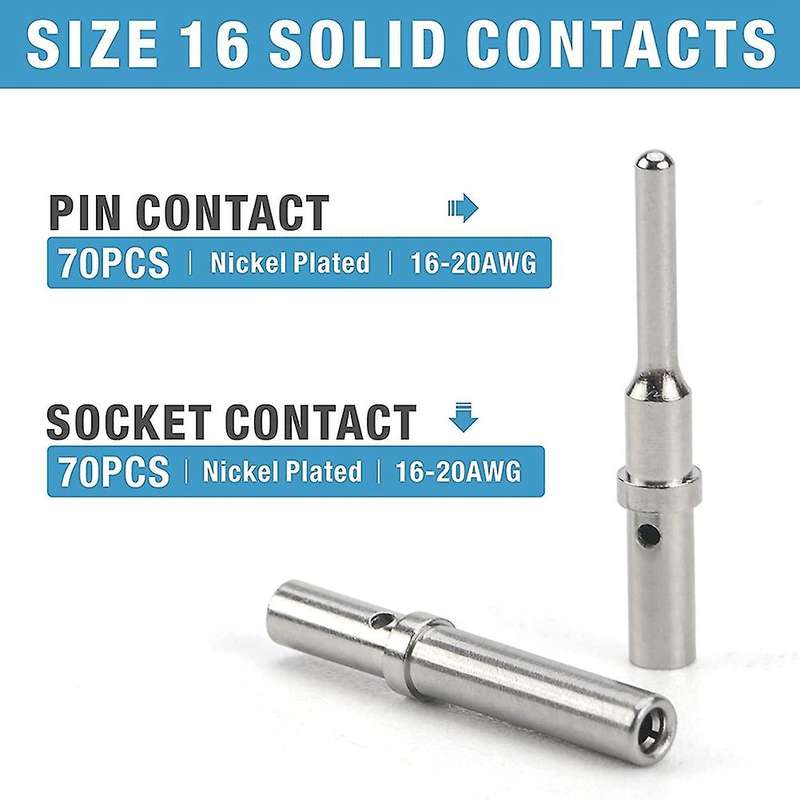

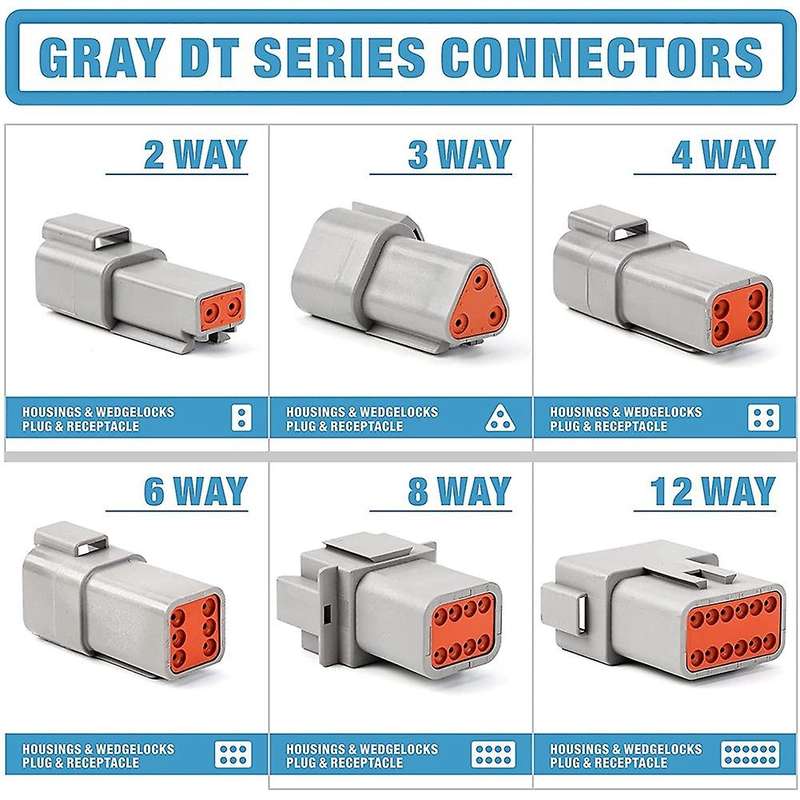

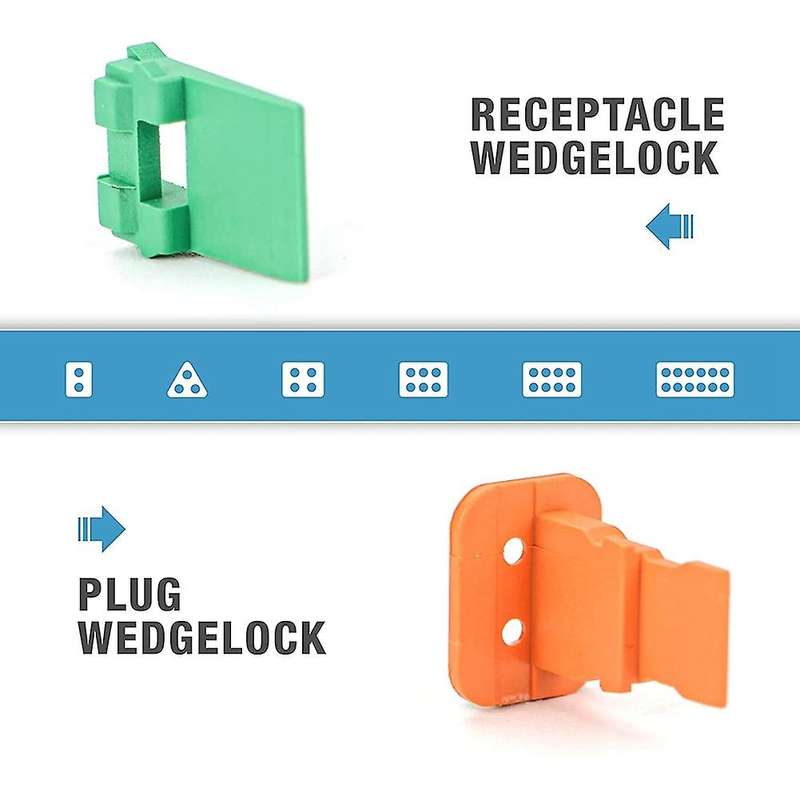

DT Series: Deutsch DT sealable housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.Sealable Housings: The plug and receptacle each consist of a housing and secondary wedge lock. The secondary wedge lock is used to ensure that the contact is fully seated and secure in the connector. The connector and the secondary wedge lock are shipped separately.Size 16 Solid Contacts: 0462-201-16141(socket) & 0460-202-16141(pin) - Deutsch Size 16 Nickel Plated Solid Socket for 20-16 AWG, nickel plated copper alloy. Max 13 amps. Crimps with a 4 way indent crimper. No soldering required.Wedgelocks: Maintains proper contact alignment inside connector housings. Can be removed with ET-01 removal tool.Applications: DT connectors offer field proven reliability and rugged quality. Widely used in Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle.Mating Pin Diameter: 1.59mm[.063in]Terminal Transmits: 0 - 24 A (Low Power)Wire Size(AWG): 20 - 16Wire Size(mm): .5 - 1.5Operating Temperature (Max): 125Celsius[257Fahrenheit]Operating Temperature Range: -55 - 125Celsius[-67 - 257Fahrenheit]Termination Method: 4-Indent CrimpColour:greyMaterial:plasticPackage Contents:188 x DT Gray Connector KitOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
