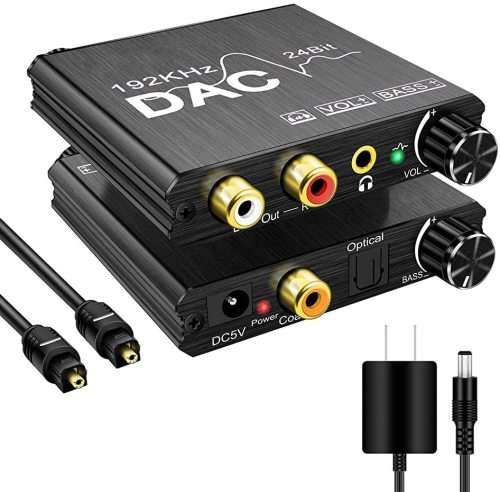

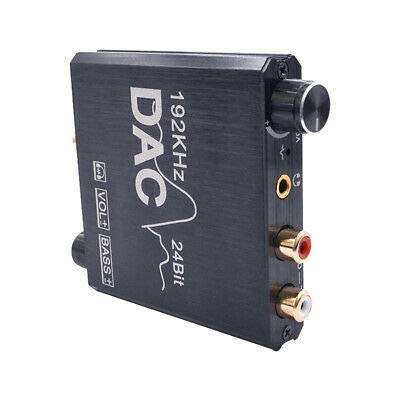

192kHz Digital To Analog Audio Converter

 Support 192Khz 24Bit sampling rate on the optical signal, built-in interference immunity, and no signal input squelch circuit

Designed for game players and music fancier, support all headphones within 32~600 Ohm

The 192KHz DAC innovatively designed bass adjustment function. Can provide stunning stereo sound, heavy bass effect, create the perfect environment different from the sound field, gain the effect was very obvious, which makes you revelled in a world by bass

Built-in volume adjustment circuit and control knob, completely solve the problem of low volume when using high-impedance headphones used in DAC products, with surging power

The design of portable and fashion aluminium alloy shell and gold-plated interface improved overall immunity, it makes the sound clear and pure

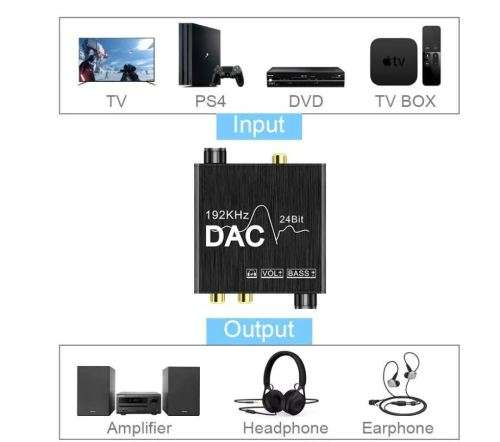

Widely compatible, can be used for PS3/PS4, Blu-way player, HD DVD, Home Theatre system, etc. Easy to install, plug and play

Features:

- 192Khz 24Bit sampling rate

- Widely compatible with 32~600 ? headphones

- Volume adjustment knob

- Bass adjustment knob

- The design is portable and fashion aluminium alloy shell

Specifications;

- Package Weight; 150g

- Package Dimensions; l=11.2cm x w=2cm x h=17.9cm

- Colour: Black

- Support audio format: PCM

- Resolution (1KHZ): 94DB

- Response frequency: 20Hz~20KHz -0.2db

- Signal to Noise Ratio (SNR):-100DB

- Total harmonic distortion (THD + N): 10Hz~20KHz 0.25-0.065%

- Block time: 0.577Fs

- Sampling rate: 32~192 kHz

- Bit rate: 16 to 24 bits

- Output electrical level: 7V

- Headphone output power: (RL = 32?)

- Output impedance: 47 ohm

- Working voltage: + 5V maximum voltage: 6V

- Maximum power consumption: 100mAh

- Operating temperature range:-10-70 degree C

- Storage temperature range:-60-150 degree C

What's in the box

1 x 192kHz Digital To Analog Audio Converter
