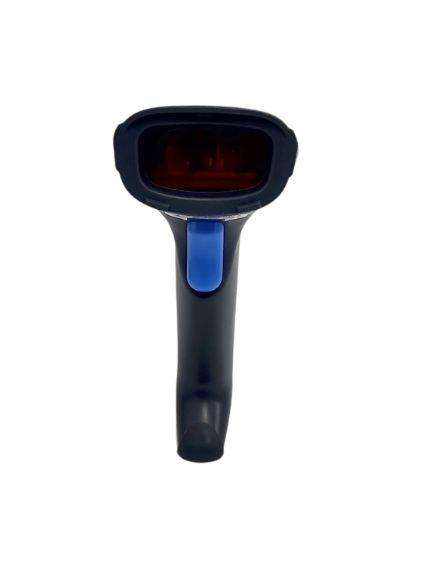

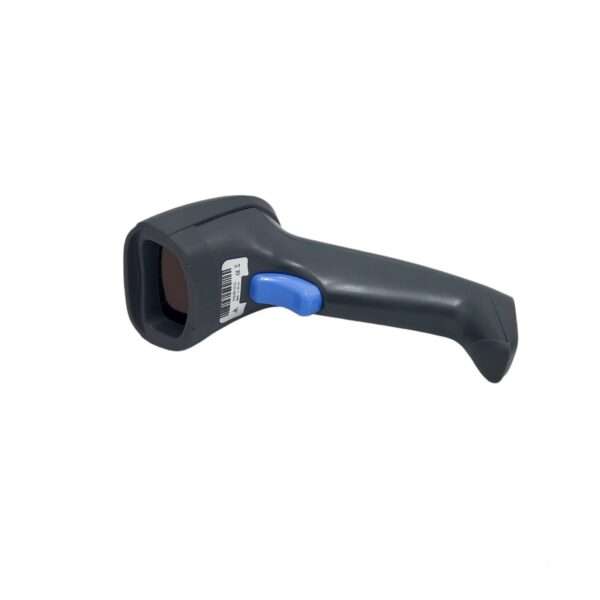

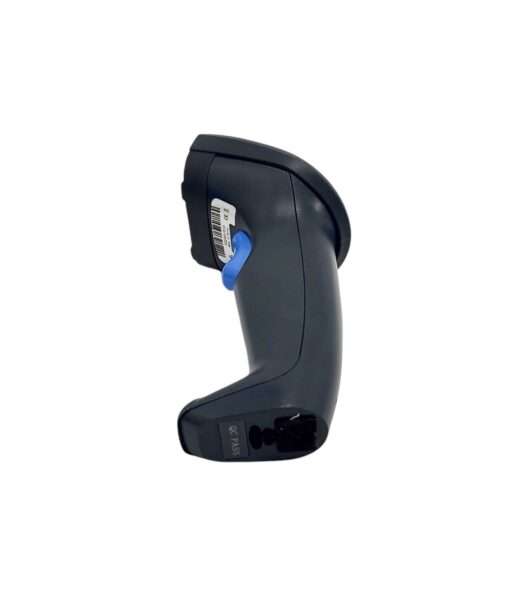

1D Wireless Laser Barcode Scanner

8901835275606

Data item:Performance

Parameters Light Sources: 650nm(Safe visible laser diode)

Supported Symbologies: UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5,? Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, ISSN, Code 32 (Italian pharm code), Code 39 extended, ITF-14, RSS 14

Resolution: 4mil(0.1mm)

Scan Type: Single Laser

Scan Speed: 2150 times/s

Scan Mode: Manual/Continuous/Automatic scanning

Scan Angle: Yaw 65 degrees, Rotation 30 degrees, Pitch 55 degrees

Depth of scan field: 10-250mm(0.33mm,PCS90%)

Interface: USB-HID

Error Rate: Less than 1/5 million

Cable Length: 1.2M

Material: ABS+PC

Current: 85mA

Voltage: DC5V+1%

Drop/Shock Resistance: With stands multiple times 3 meters drops to concrete

Operating Temperature: -20 degrees celsius - 40 degrees celsius

Storage Temperature: -40 degrees celsius - 70 degrees celsius

Relative Humidity: 5% - 95% RH(Non-condensing)

Package Weight: 250g

Package Dimensions: 10cm x 8 x 21 (L x W x H)

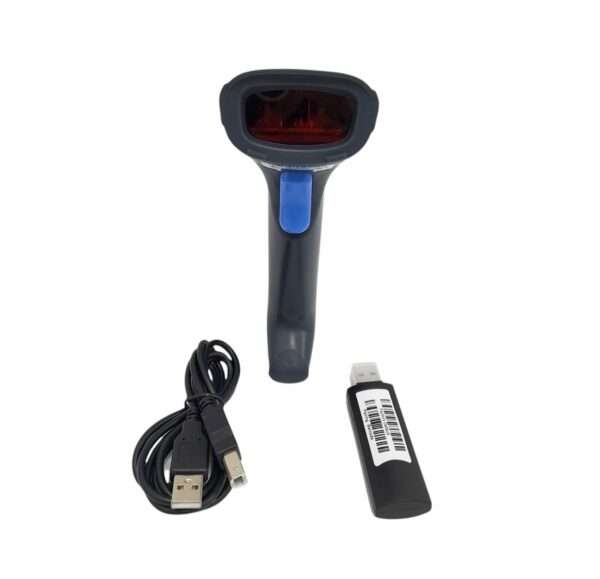

Package Includes:

1 x Wireless Scanner

1 x USB Cable

1 x Receiver

1 x User Manual
