Features: - Modular design makes it suitable for use with output modules, sensors and remote transmitters. - The use of advanced ultra-low power PIC microcontroller developed as the core, is the integration of display and integration of new intelligent instruments. - Multi-point coefficient correction function, a variety of output signal options. - Compact structure, intuitive clear reading, high reliability, free from external power interference, anti-lightning and other characteristics. - High-definition displays show both instantaneous and cumulative flow. - Easy to replace internal components, easy maintenance, lightweight, compact design easy to install. - Can be widely used in petroleum, medicine, transportation and commerce.

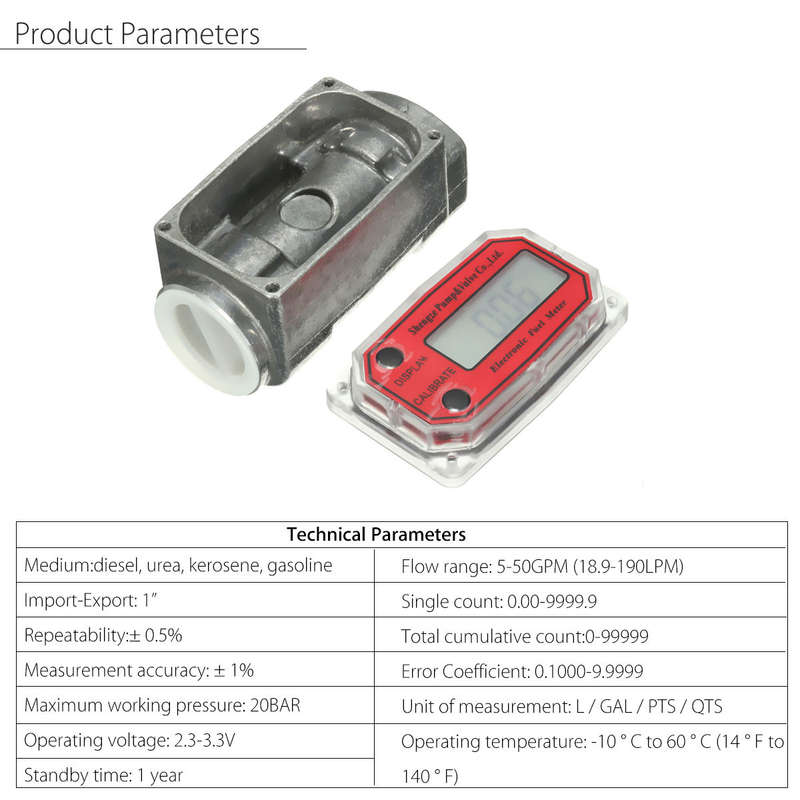

Specification: Material: Aluminium alloy Medium:
Diesel, urea, kerosene, gasoline Import-Export: 1a Repeatability:± 0.5% Measurement accuracy: ± 1% Maximum working pressure: 20BAR Operating voltage: 2.3-3.3V Standby time: 1 year Flow range:
15-120L/Min Single count: 0.00-9999.9 Total cumulative count: 0-99999 Error Coefficient: 0.1000-9.9999 Unit of measurement:
L / GAL / PTS / QTS Operating temperature:
-10 ﾣ C to 60 ﾣ C (14 ﾣ F to 140 ﾣ F) Battery Specifications: LRO3 x 2 (AAA Size)
Control panel Color:Red Sizes: About 10.5 x 6 x 5cm

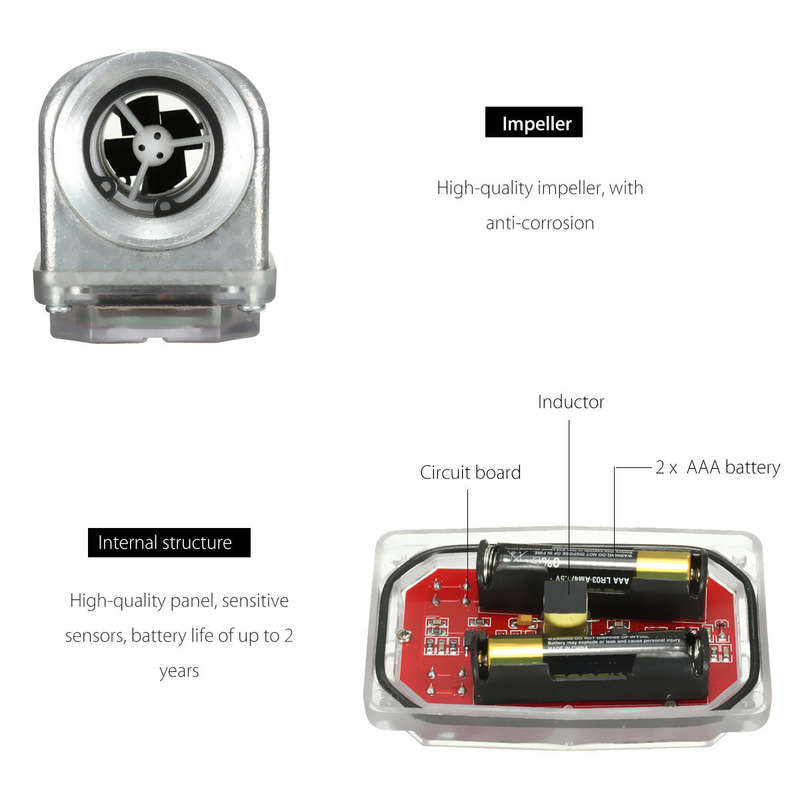

Battery and maintenance: 1. When the battery voltage is too low, LED display in the bottom of the 1bat appears to replace the battery (the user is recommended to replace the battery every year, once a year to check the battery electrode). 2. If there is corrosion should be promptly removed, a long time without the use of flow meter, the battery should be removed.

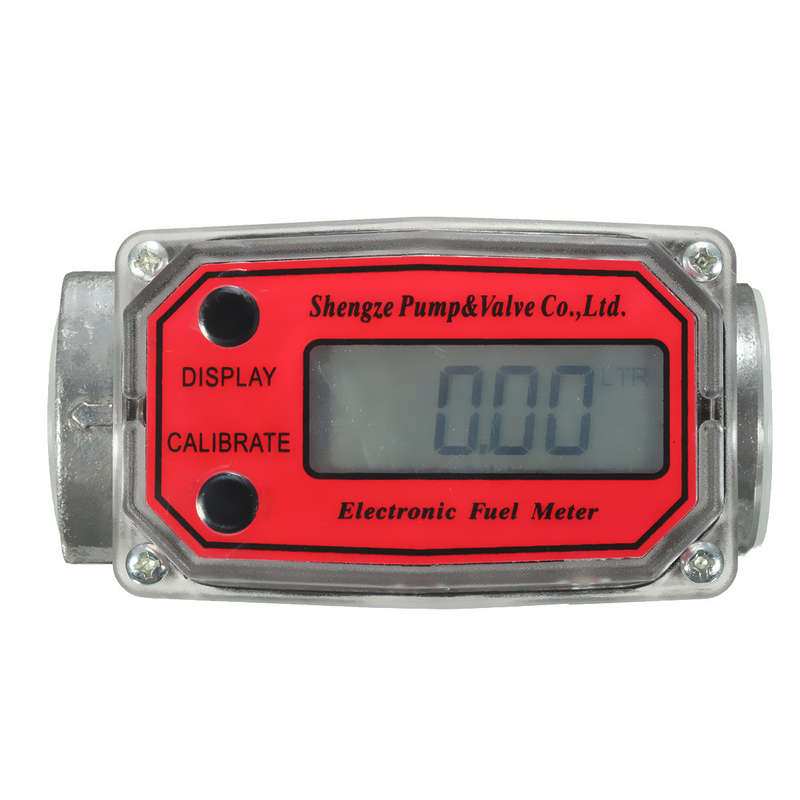

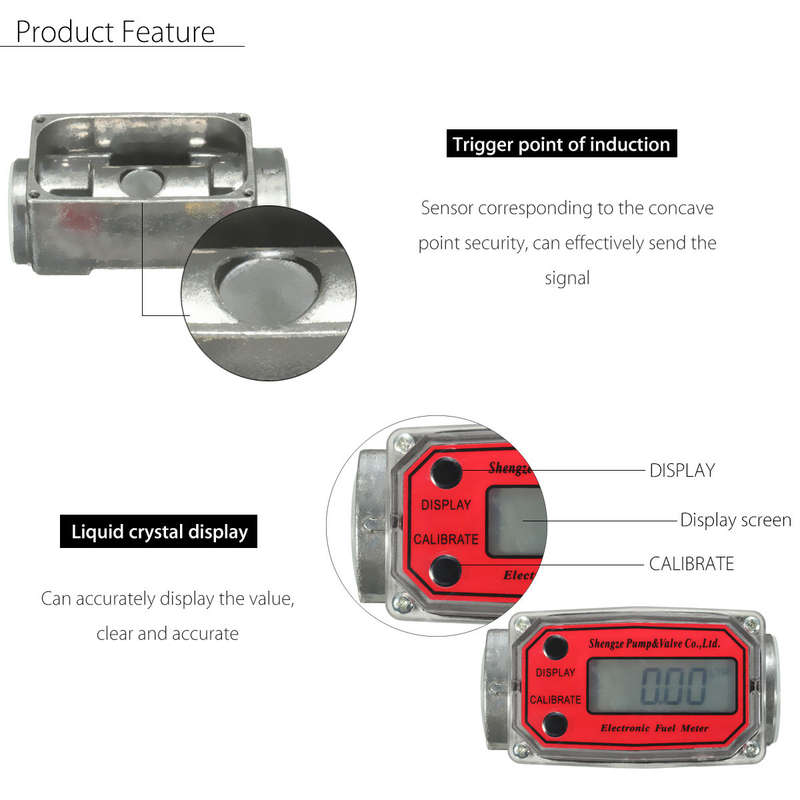

Product Setting Method: 1. Error coefficient and unit setting - Press the CALIBRATE button for 6 seconds in standby mode, the current coefficient and unit will be displayed, and flashing Enter manual coefficient setting and unit conversion setting - Press the DISPLAY button first to select the digit or unit to be set, and then press the CALIBRATE button to change the digit or unit (Note: The coefficient is set by the coefficient increases the actual number of the actual oil, the coefficient becomes smaller the actual increase in oil) LED display value Coefficient Actual oil volume 100L 1 100L 105L 0.95 100L Example: [Old error coefficient] 1.0000 [LED display value] 105L [Actual oil supply value] 100L [Error coefficient] = 100/150a0.9523 2. One-time metering clear setting Short press DISPLAY key, LED full screen display. The current fill level is cleared 3. Total cumulative query In standby mode, press and hold the CALIBRATE button (no more than 3 seconds) to query the accumulated fuel quantity (can not be cleared) 4. Restore the factory settings Press the DISPLAY and CALIBRATE buttons at the same time before powering on the control panel, and then power on the control panel, the LED display full screen (the current filling amount is cleared / the total filling amount is cleared and the error coefficient is restored to the factory setting)
Package included: 1 x Fuel flow meter

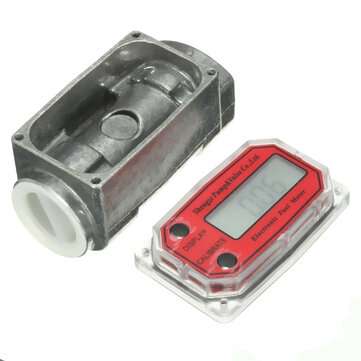

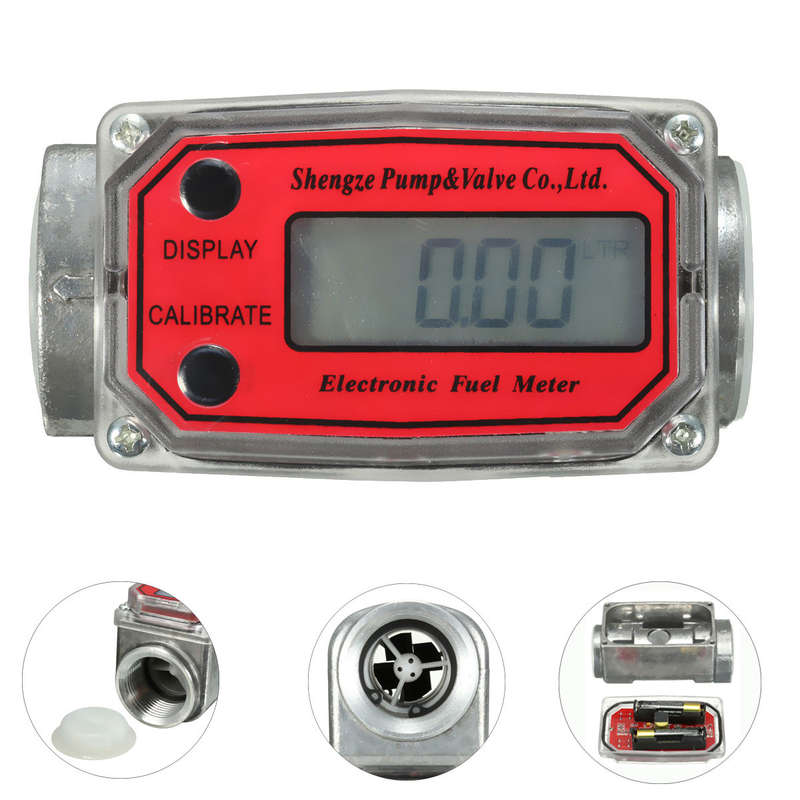

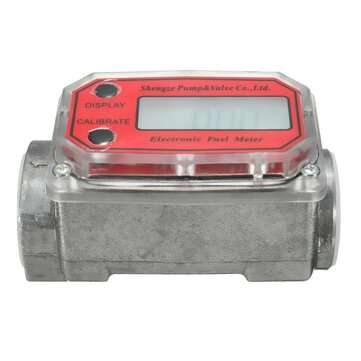

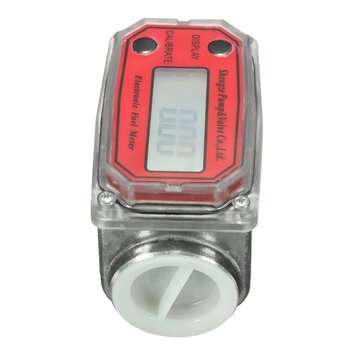

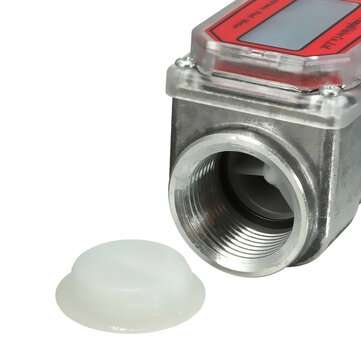

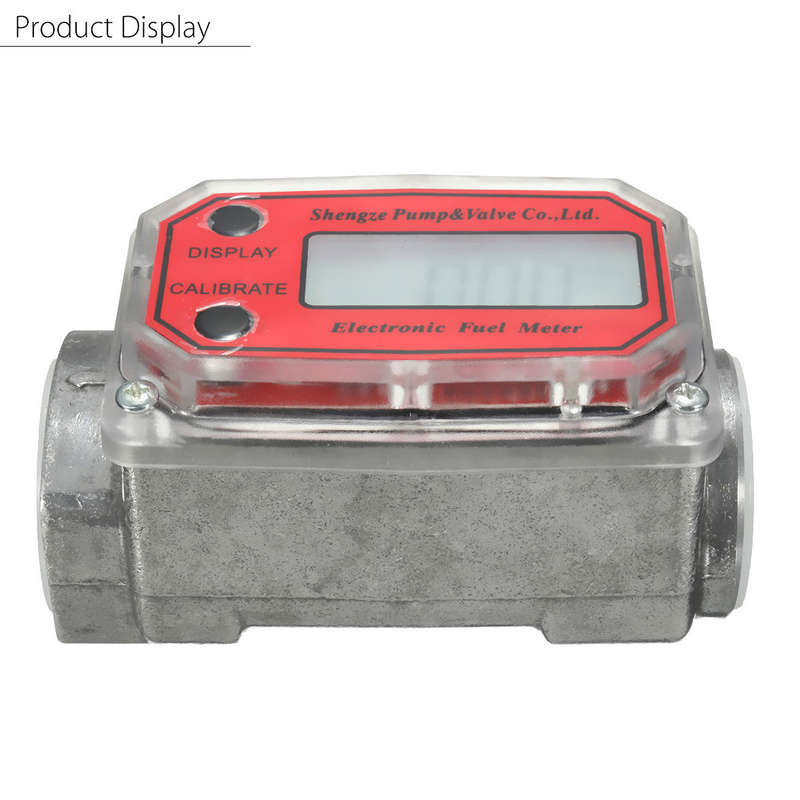

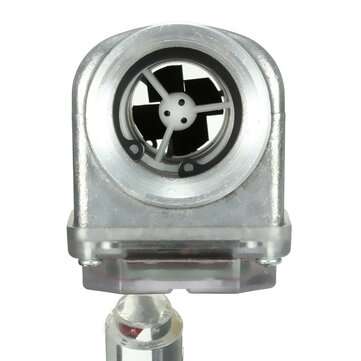

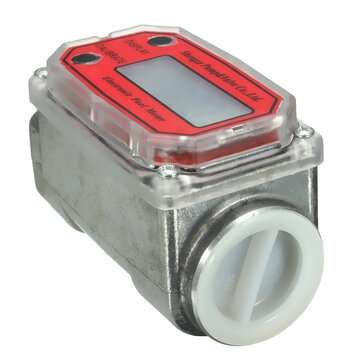

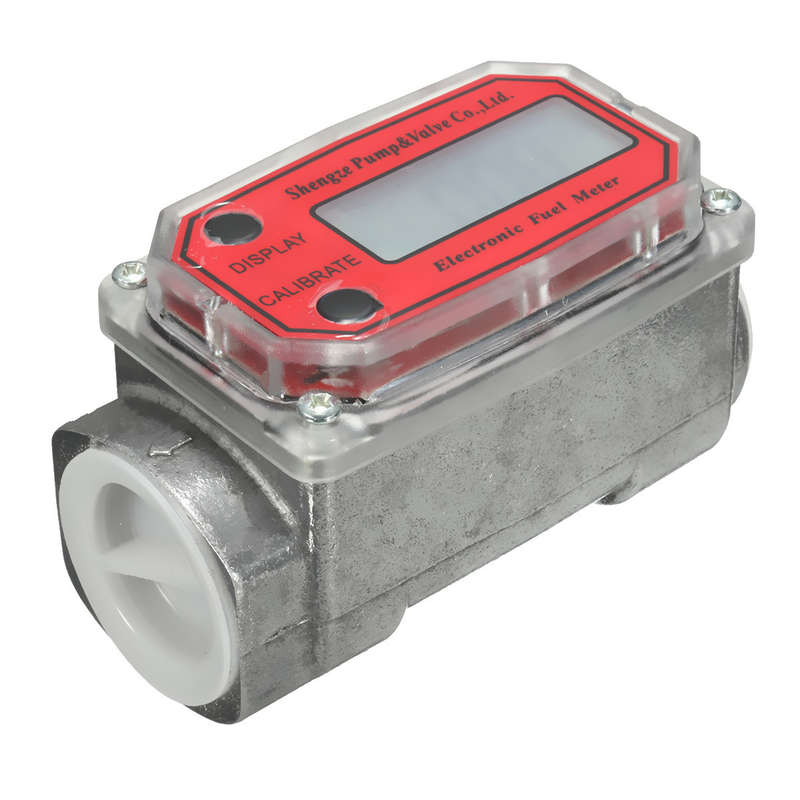

Details pictures:
