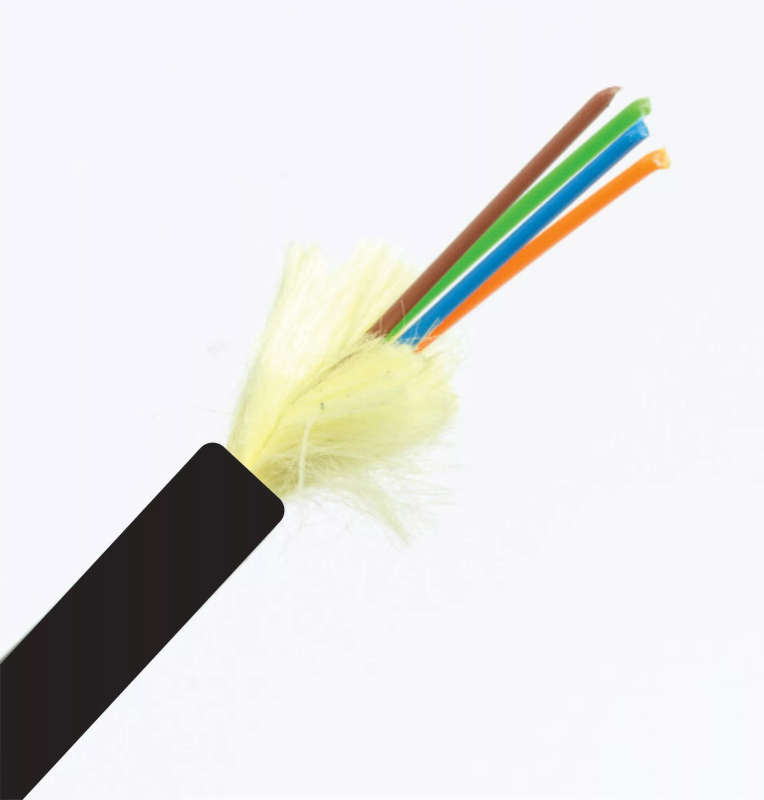

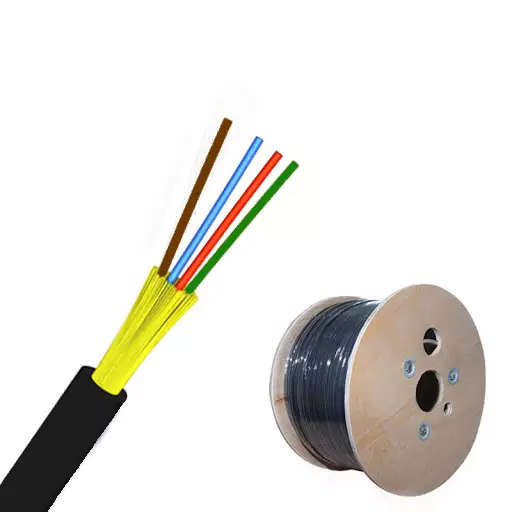

1km Roll | Single Mode Outdoor Fiber Drop cable 100Gbps OS2 | 4 Core w/Kevlar Strength Members

1km Roll | Single Mode Outdoor Fiber Drop cable 100Gbps OS2 | 4 Core w/Kevlar Strength Members

Single Mode fiber optic patch cables come with a 9 micron diameter glass core. With the cladding layer, they are 125 micron, and with the buffer layer they are 250 micron. To prevent excessive loss (attenuation), you should ensure that you only connect single mode cables to other single mode fibers already in your system.

This Fiber Cable exceeds OS2 100Gbps Rated Requirements which has a requirement of <0.40 dB/km signal loss at 1310nm and <0.30 dB/km signal loss at 1550nm. Please see technical product specifications for signal attenuation and compliance on pdf at 4 Core Fiber Optic Cable with Kevlar Strength Members

This cable is designed to sustain extreme tension and can support it's own weight hanging between poles / trees etc over long distances up to around 50 meter.

Specifications:

• Indoor/Outdoor Cable
• Diameter : 5mm with Outer PVC
• Kevlar strength member to enable extreme tension support
• 4 Fiber Cores
• G.657A2 Specification
• LSZH (Low Smoke, Zero Halogen)
• UV resistant
• Max Speed : 100Gbps OS2 Rated

G.657A2 Bend Ratio vs Other Specifications

The Connectors below can be used with this Fiber Cable

/lc-upc-fiber-optic-fast-connector-field-terminated-connector/

/fiber-optic-sc-connector-field-installable-for-125-micron-fiber-optic-ffth-fiber-to-the-home-fttp-fiber-to-the-premises-or-hdmi-over-fiber-extenders/

These Fiber Cables Are Commonly used with the Fiber SFP's below

/20km-single-mode-bidi-sfp-transceiver-module-set-cisco-huawei-dell-compatible-1000basebx-bi-directional/
