The perfect solution for load shedding!

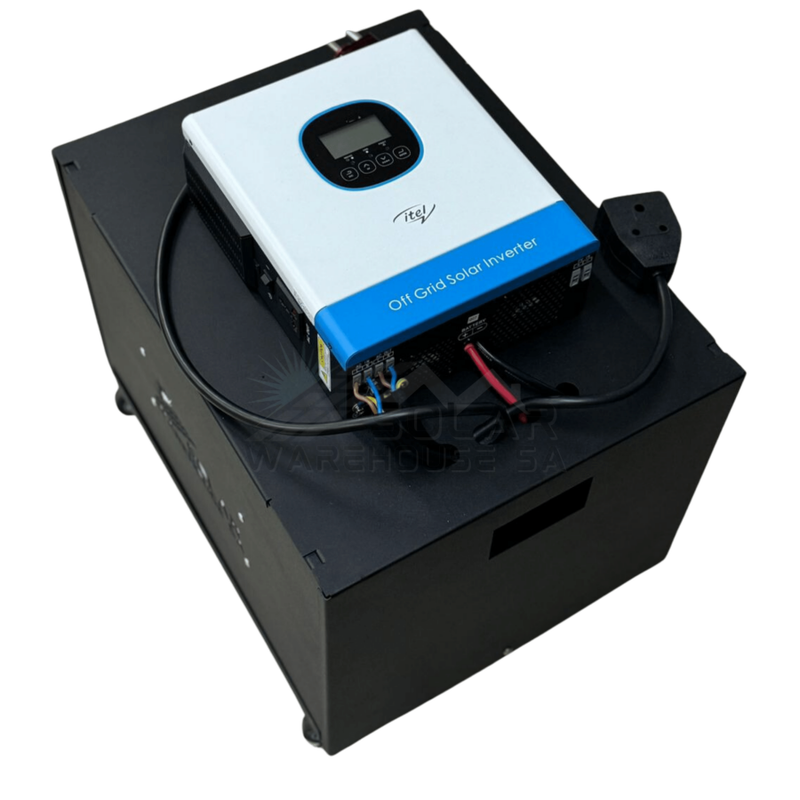

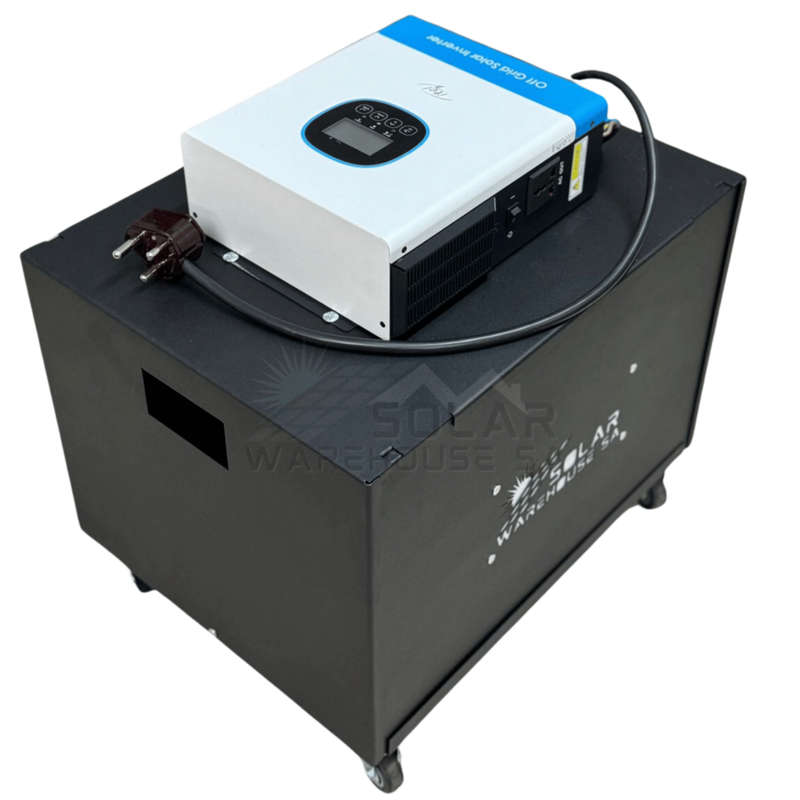

The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Eazy portable compact unit with lock wheels as well as handles to carry the system.
PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE
What is an all-in-one portable plug-and-play inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready: Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 100w which is usually a TV, Wifi, Lights, etc. This portable system will last 5-6 Hours.
Inverter Specifications & Fixtures:

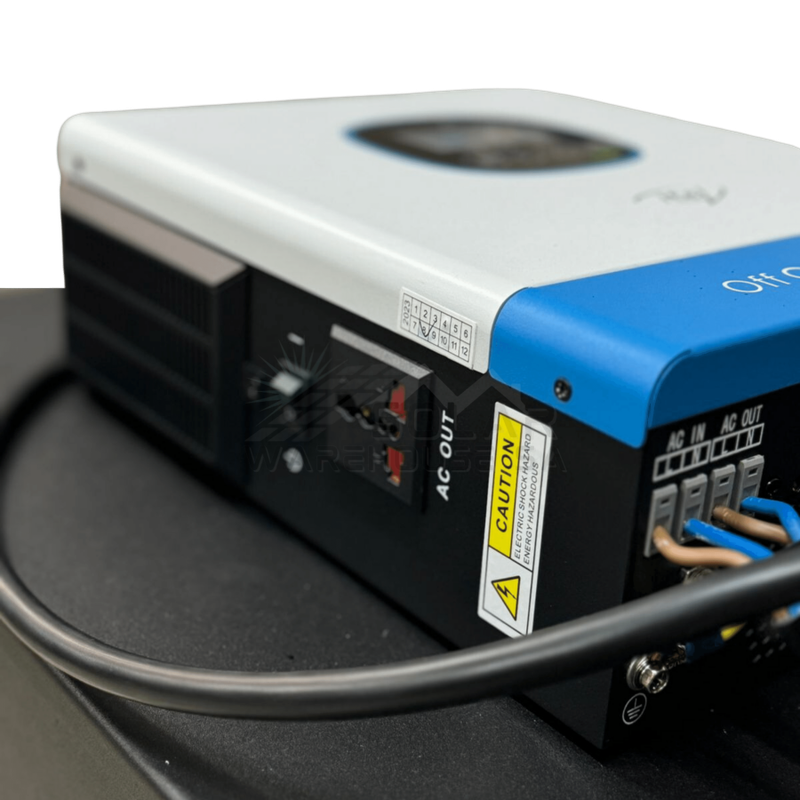

Itel Off Grid Solar Inverter 1KVA 1000 Watt MPPT 12V
Features:
-Intelligent battery charging design to optimize battery life
-High PV input voltage range (30-400V)
-Indoor use only, built-in dust protection One key to restore original settings
EFFICIENCY
- MPPT Tranking Efficiency 98%
- Max. Conversion Efficiency DC Input (PV) 94%
- Max. PV Input Power 600w
- Start-up Voltage/Initial Feeding Votage 20v/30v
- MPPT Voltage Range 20VDC-150VDC
- Number of MPPT Trackers/Max.Input Current 1/40A
- Number of MPPT Trackers 1X
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Input Voltage Range 90-280VAC or 170-280VAC
Maximum AC Input Current 10A
Nominal operating frequency 50/60HZ
Surge power 20000w/3ms
AC Output
Nominal AC Output Power 1000W
Nominal AC Output Voltage 230VAC
Output Voltage Range 195.5-253VAC
Nominal AC Output Current 4.34A
Max. AC Current 40A
Nominal AC Frequency 50/60HZ
Switch Time 10-20MS
Battery
Battery Type Lead-acid/Li-ion/User Defined
Rated Battery Voltage 12VDC
Battery Voltage Range 10-16V
Max. MPPT Charging Current 40A
Max. Mains/Generator Charging Current 40A
How to maximize battery life:
Keep your inverter system plugged in and switched on, this will keep your batteries at full charge.
Size & Weight:
50cm (H) x 55 (L) x 45 (W)
+-30 KG
This all-in-one system Includes:
1x Itel Off Grid Solar Inverter 1KVA 1000 Watt MPPT 12V
(2 Years Repair Warranty)

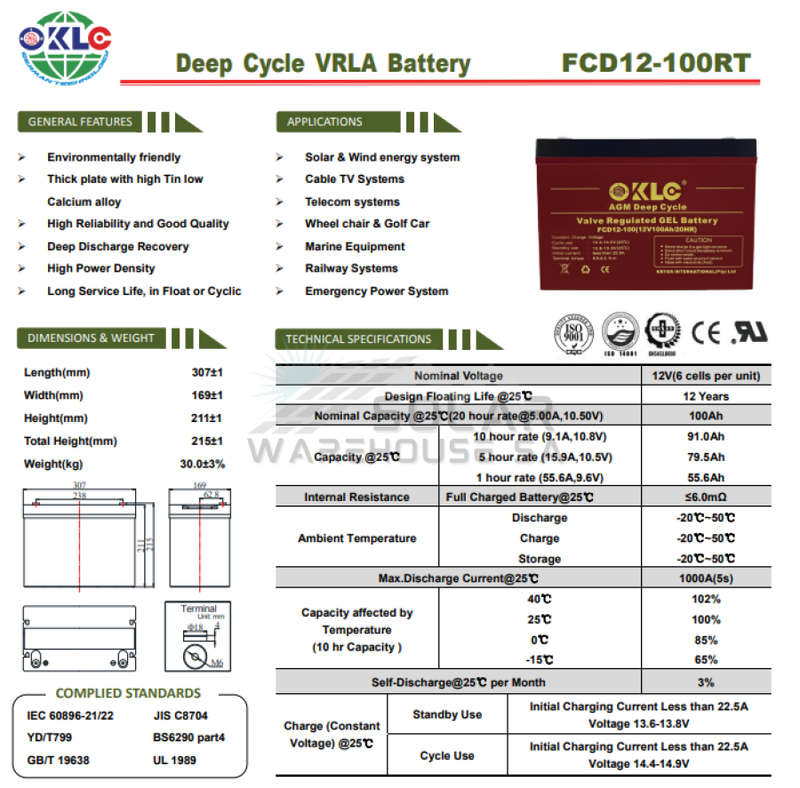

1x AGM KLE 100AH Deep Cycle Battery
1x 1m Power Cable With Wall Plug
1x Multi Plug
1X Battery Fuse

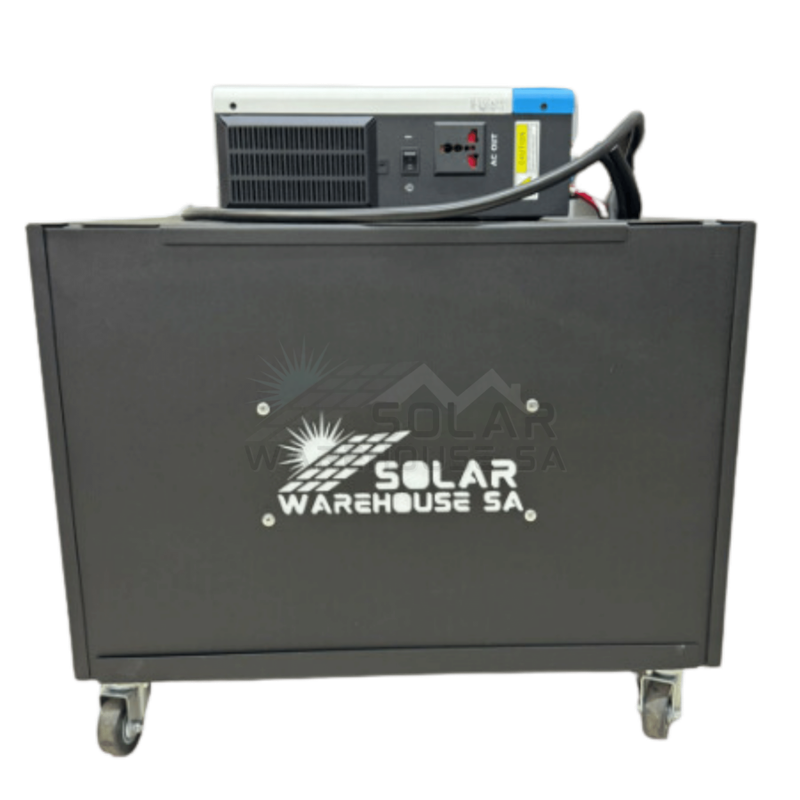

1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
