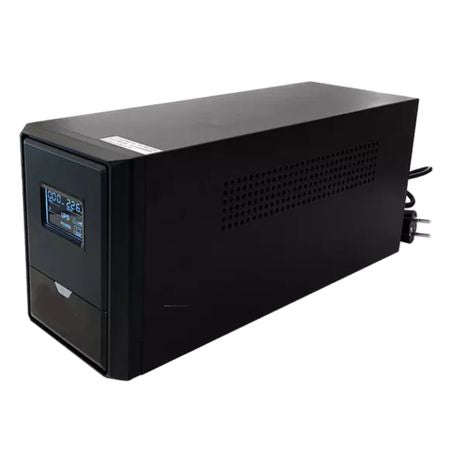

Indigo Line interactive UPS-AK LCD series New design classic LCD line interactive UPS 1kVA with built in batteries, ideal UPS for PC and peripherals, POS Machines, Printers, Security Systems, Modems routers and etc. An elegant designed and reliable line interactive UPS.
Product Features:
- LCD Display that provides real time input and output voltage, battery capacity and load level
- Built in *Boost and Buck True Automatic Voltage Regulation (AVR)
- Solid metal cabinet with vents allows the UPS to cool down faster
- Simulated Sine Wave Output

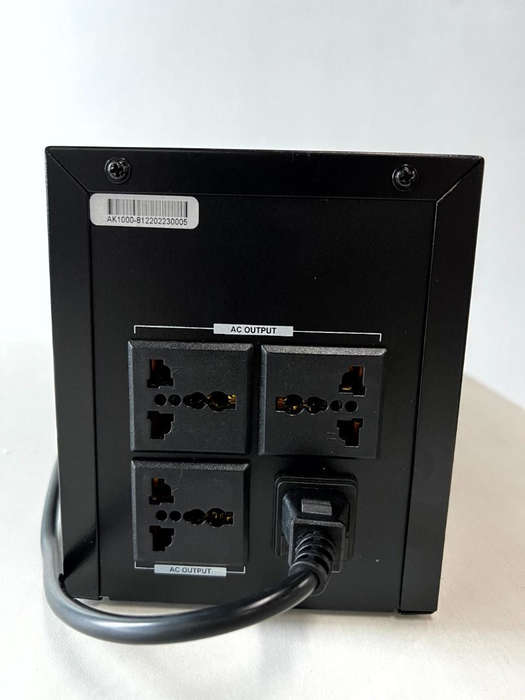

- Universal Socket Output so that you don't need a convertor to plug in the output
- Protection from power surges or sag, power failures, under or over voltages *(Boost: When input power is too low the UPS automatically increate the voltage to optimal voltage, Buck: When input power is too high, the UPS will reduce the power to optimal voltage)
Specifications:
Model: AK1000- 220v Power 600watt, Capacity: 1000VA
Input Input Voltage: 110VAC/120VAC/220VAC/230VAC
Input voltage range: 67V-137VAC OR 175-265VAC
Input Frequency: 50Hz or 60Hz (auto-sensing)
Input connector: C13 Power plug Output
Output voltage: 110/120VAC or 220/230/240VAC
Output voltage precision: ±10%
Output frequency range: 50Hz or 60Hz ±10%
Transfer time: Typical 6-10ms
Waveform (battery mode): Simulated sine wave
Battery Battery type: AK650 12V/7AH x1 AK800 12V/9AH x1 AK1000 12V/7AH x2 AK2000 12V/7AH x4 AK3000 12V/9AH x4
Typical recharge time: 8 hours recover to 90% capacity
Protection : Full protection: Automatic detection, discharge, short circuit and overload protection
Alarm: Battery mode (beep every 4s), Low battery/ Overload (beep every second), Fault (continuous beep)

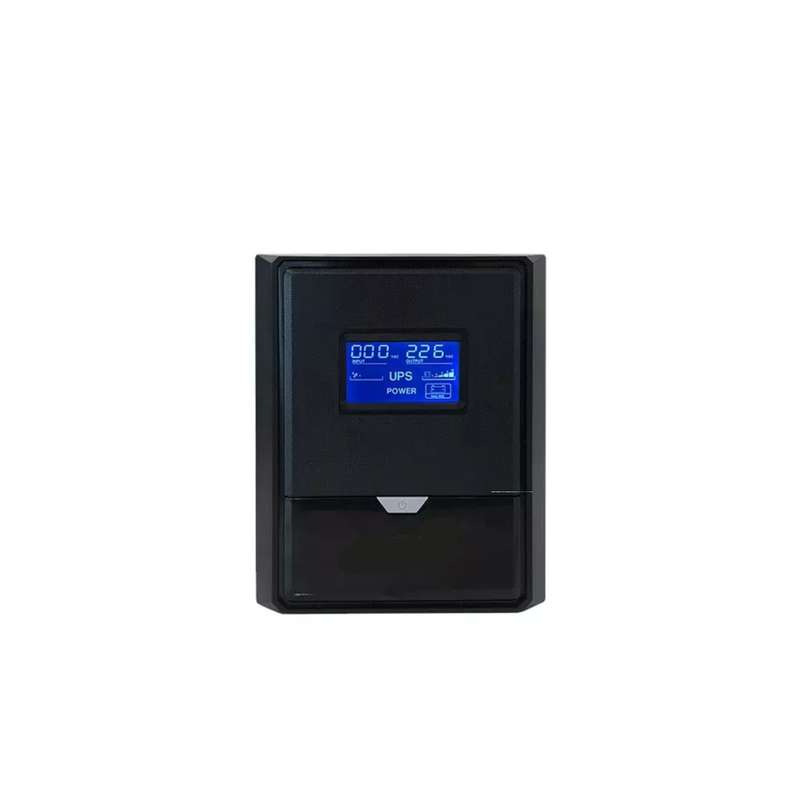

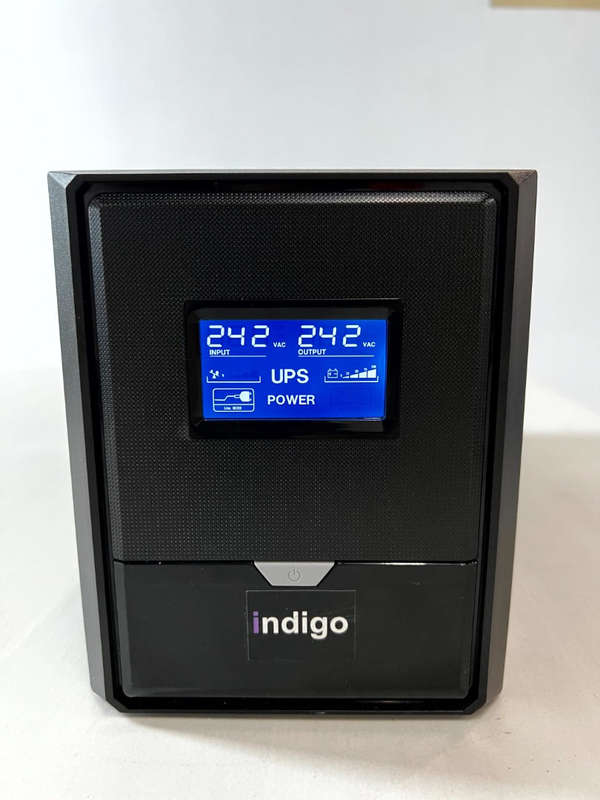

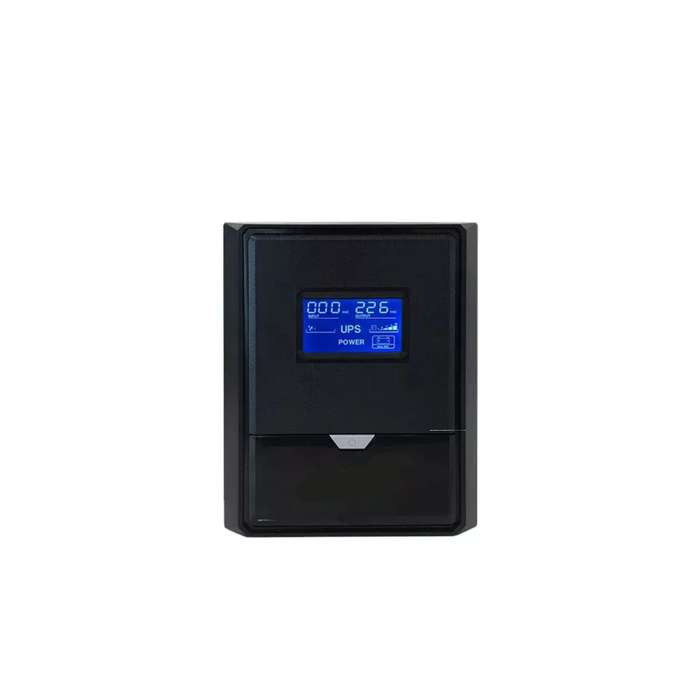

Display & Indicators LCD display: AC mode, battery mode, load level, battery level, input voltage, output voltage, overload, low battery
Physical Operation Temperature: 0-40
Optimal Operation Temperature: 25
Operation Humidity: Relative humidity 0-90%
Non condensing Noise: 40dB
Net Weight: AK1000: 10KG
Dimensions (LXWXH)mm: AK1000: 365x138x165
Model: AK1000- 220v Power 600watt
Capacity 1000VA
