Product details

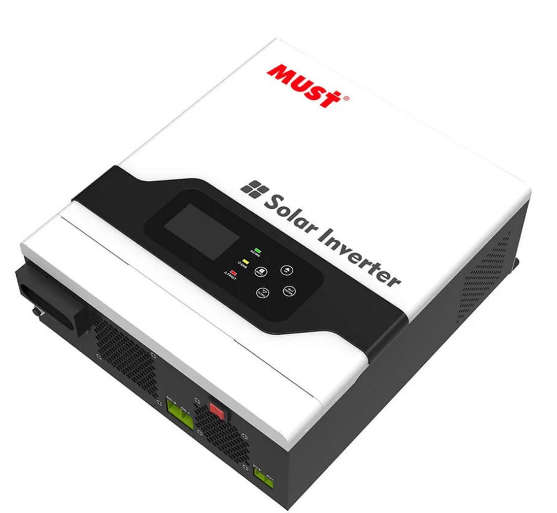

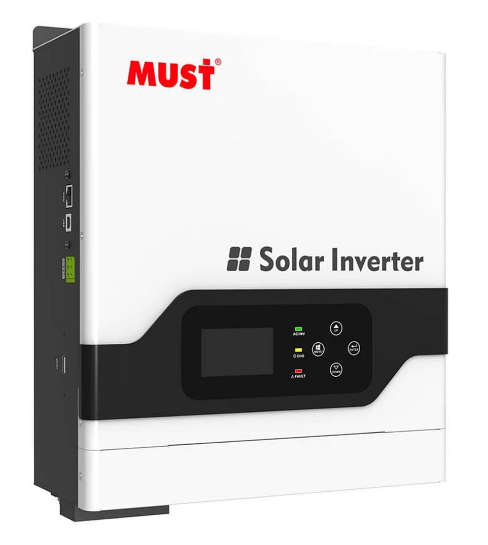

PV1800 VPM is the latest multi-function inverter/charger model from MUST, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
-Pure sine wave output
-Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc.)
-Built-in MPPT 50A/60A solar charge controller
-New SUB working mode (Solar-Utility-Battery working mode)
-Combining solar system, AC utility, and battery power source to supply continuous power
-Overload, short circuit and deep discharge protection
-Parallel operation with up to 3 units (Available for 4KW/5KW only)
-Cold start function
-Support USB, RS485 monitoring function
-WIFI remote monitoring (optional)
-Compatible to generator
Specifications:
Solar Inverter:
-Model Name: PV1800
-MD: PV18-1012 VPM
-Operating Temperature: 0 ~ 50`C
-Protection Class: Class I
Protection Degree: IP 20
Inverter Mode:
-Rated Power: 1000VA/1000W
-DC Input: 12VDC, 125A
-AC Output: 230VAC 50/60Hz 4.35A
AC Charge Mode:
-AC Input: 230VAC 50/60Hz 6.54A
-DC Output: 13.5VDC 20A/10A
Solar Charger Mode:
-Rated Current:60A
-System Voltage: 12VDC
-MPPT Voltage Range: 15-105VDC
-Max. Solar Voltage (VOC): 105VDC
-Max. Charge Current: 70A
-Max. PV Input Current: 20A
What's in the Box:
1x 1KW 12V/70A Pure Sinewave Hybrid MPPT Inverter - MUST (Excluding Solar Batteries and Panels)
1x User Manual
What's in the box
1x 1KW 12V/70A Pure Sinewave Hybrid MPPT Inverter - MUST
1x User Manual
Warranty: 12 Months Repair Warranty
Warranty Condition:
A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
