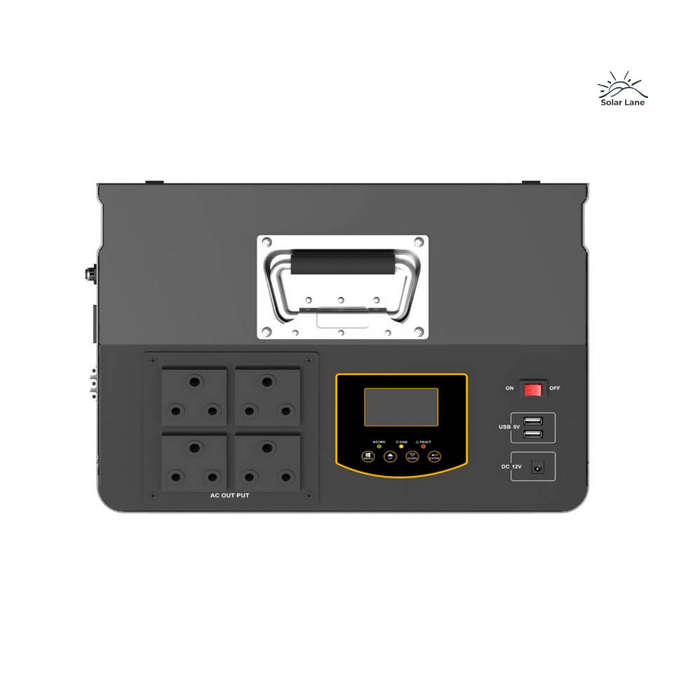

NavaSolar BP18-1012 1kW 960Wh 12Vdc LifePO4 Trolley Inverter
HBP1800 series all-in-one energy storage solution, support 1KW, 2KW, 3KW output for different load appliances. It's based on the original cabinet design, stacked with solar energy storage lithium battery 960wh~3072wh, and built in battery protection system, fully retain the use of load power in applications of residential, school, commercial and public utility area.
- Pure sine wave inverter - 1000W
- Energy storage - 960wh
- Charge cycle - 4000+
- UPS Plug & play use - 24/7
- 2 USB ports - for DC load
Features higher capacities for greater compatibility with more power-hungry devices, and the latest in USB-C Power Delivery capable of
charging larger USB devices like laptops.
Includes pre-installed solar charging optimization module that functions as a maximum power point tracker (MPPT), resulting in up to 40%
faster charge times.
With LiFePO4 lithium cells, known for stability and safety, monitored by a state-of-the-art battery management system that prevents overcharge, over-current, and short circuiting.
Built in Multi safety protection that include short circuit, overload and over-temperture and error code reportingTechnical Specification
Rated power: 1000W
Output voltage waveform: Pure sine wave
Output voltage regulation: 230Vac ±5%
Output frequency: 50Hz / 60Hz (±0.2Hz)
Peak efficiency: 90%
Nominal DC input voltage: 12Vdc (±0.3)
Standby Consumption: < 25W
Max solar power input: 900W
PV max charging current: 60A (±3A)
Combined charging current: 70A (±4A)
PV array open circuit voltage: 105VDC
PV Array MPPT Voltage Range: 15~105V
AC input voltage: 230Vac ±5%
Acceptable input voltage range: 90-280VAC
Nominal input frequency: 50Hz / 60Hz (Auto detection)
Transfer time: 10ms typical (UPS, VDE); 20ms typical (APL)
Charging current - Nominal input voltage: 10/20A (±4A)
Charging Algorithm: 4-step (Li)
AC output: 230Vac (Socket *4pcs)
USB (5V 2.4A): DC output*2pcs
USB (12V 1A): DC output*1pcs
Lithium Battery Energy: 960Wh
Nominal voltage: 12.8V
Battery capacity: 75Ah
Protection board: 100A
Standard charging & discharge current: 50A
