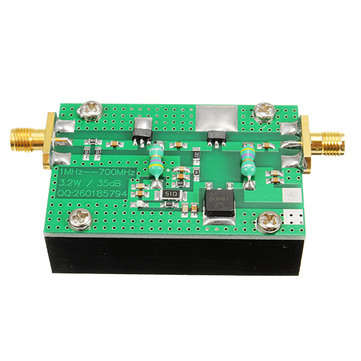

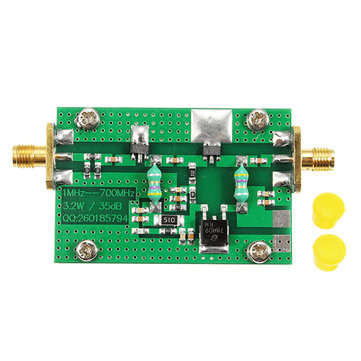

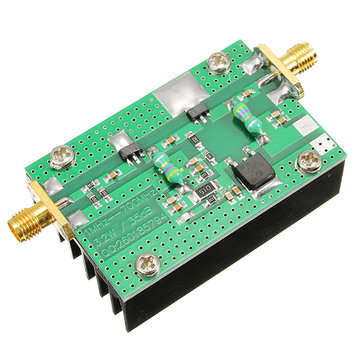

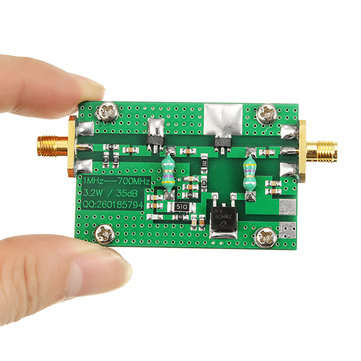

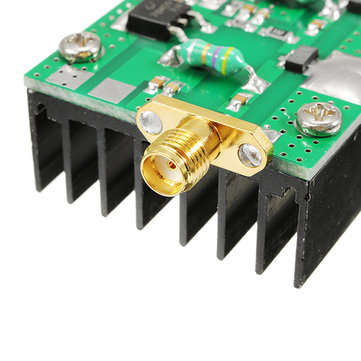

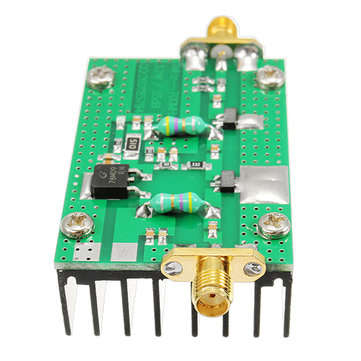

1MHz-700MHZ 3.2W HF VHF UHF FM Transmitter RF Power Amplifier For Ham Radio

New

12 were available

R761.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3800

92.89 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

612374630

Application:

Broadband RF power amplifier for all types of wireless applications, FM shortwave radios remote control toys, digital radio, etc., enter 1 milliwatt (0DBM) maximum output of 3 watts, 15V voltage supply, broadband work 1MHZ to 700MHZ can be work. As a result of well-designed, low end that can reach 35DBM (3W), at 500M, the output power can reach 32DBM (1.6W), please refer to the specific parameters S21 and point frequency test chart.

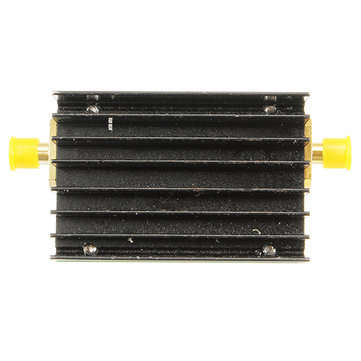

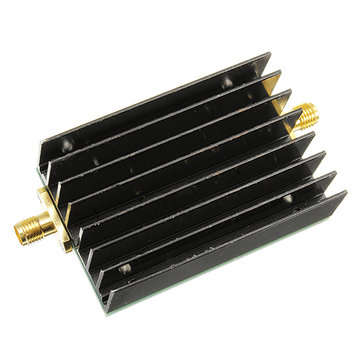

Amplifier size 37MM * 56CM * 1.5CM (behind with a large heat sink).

Technical indicators:

1.?supply voltage: + 15V DC (typical current 450mA / gain maximum output)
2.?the operating frequency: 1MHZ-700MHZ, input and output impedance: 50 ohms
3.?the maximum output amplitude: 35dbm (3.2W / 50 Ohm)
4. Gain: 35 dB (see specific curves S21 curves, different frequencies are different)
5.?the input signal Size: low frequency (0DBM / 1 mW), high frequency (2DBM)

Note:
?
Do not power it when there is no signal input or output is not connected to load.

Package included:

1 x 1MHz-700MHZ 3.2W HF VHF UHF FM Transmitter RF Power Amplifier For Ham Radio
