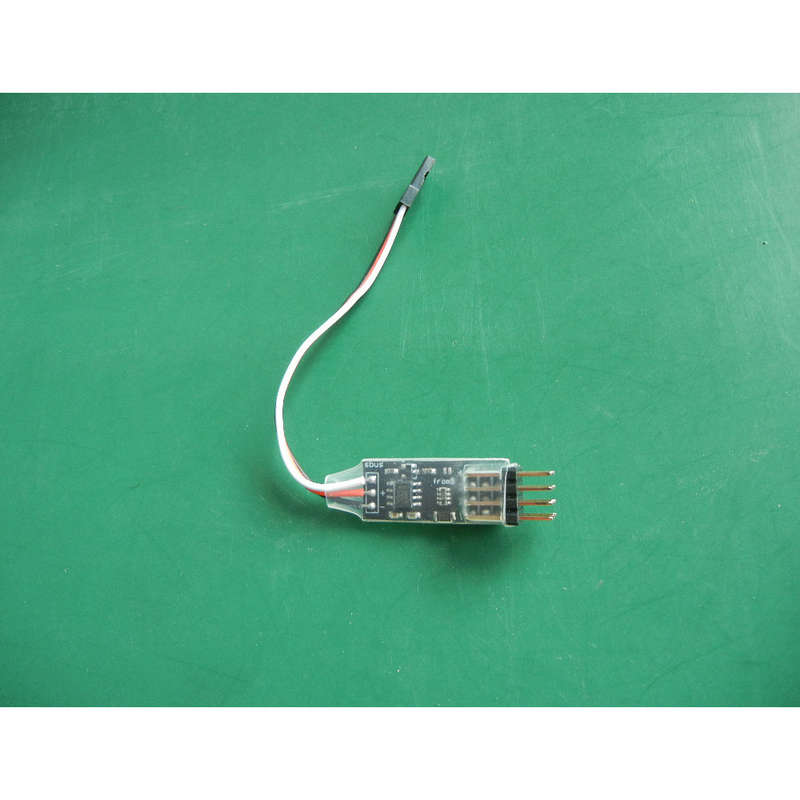

1PC 3.3v-5.5v SBUS to PWM Servo Decoder Signal Converter Conversion Device for RC Receivers with SBU
12 were available / new
R491.00
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 12 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
Replacement Guarantee:
7 Days: We stand by this guarantee
Get it now, pay later
Product details
Condition
New
Location
International
Bob Shop ID
604203155

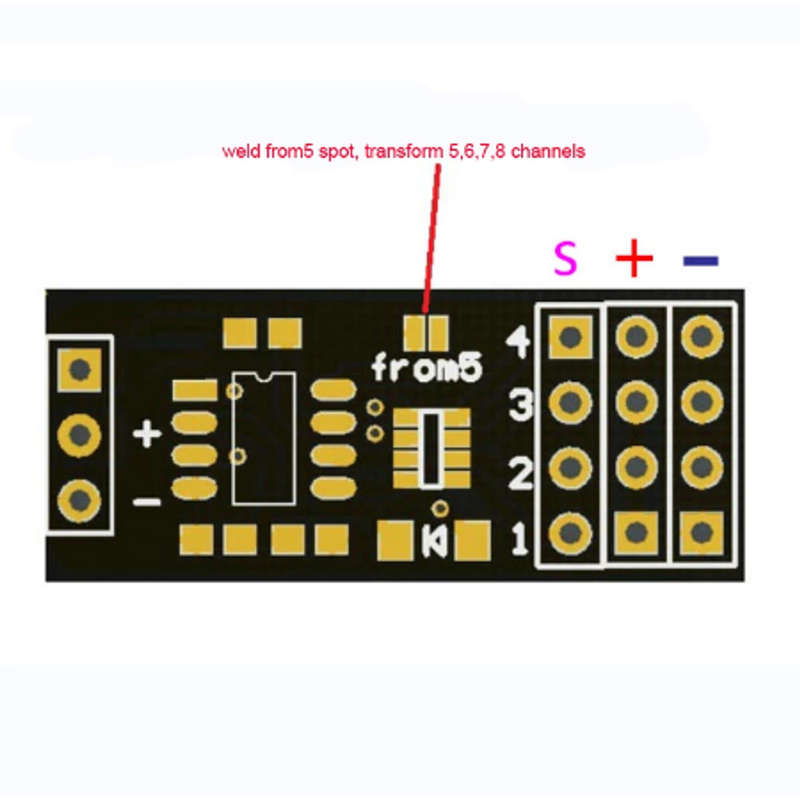

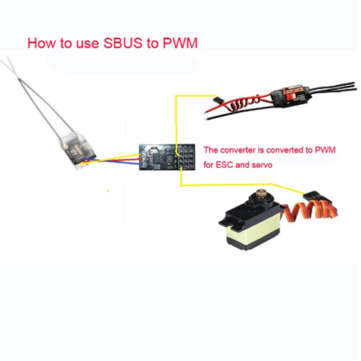

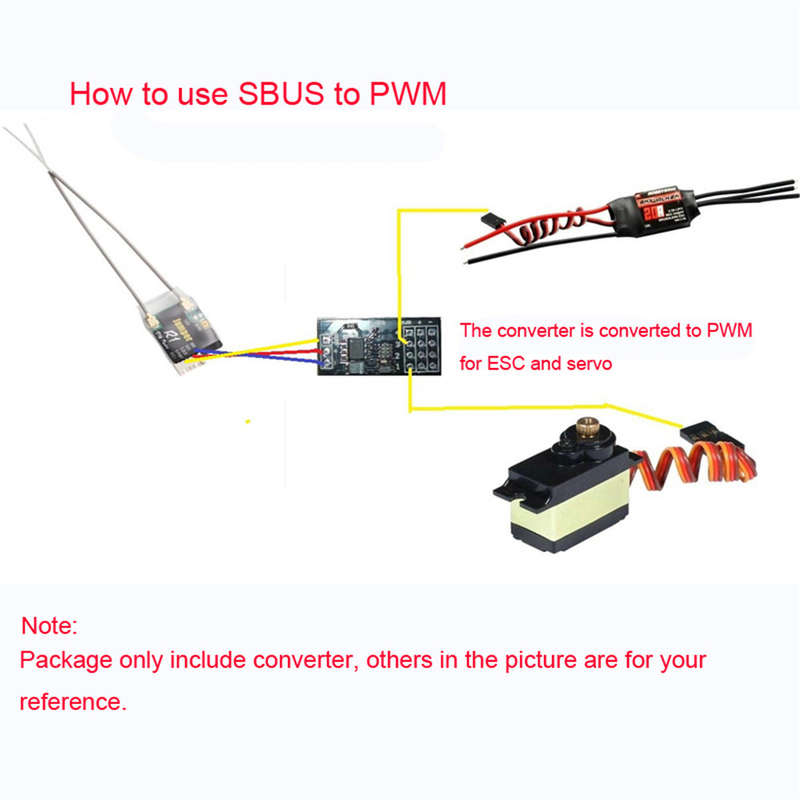

??? Description: Name:?SBUS to PWM Servo Decoder Signal Converter Conversion Device? Input: SBUS (Several SBUS receivers have been tested: JUMPER R1/R8, Radiolink,? compatible with Frsky D8) Output: 4CH PWM signals (according to the solder joint selection, whether to?output SBUS 1-4 channels or 5-8 channels) Voltage: 3.3V-5.5V Board size: 28x15mm Weight:3g When the failsafe bit of SBUS is set, the 4 PWM ports no longer output signals Features: High quality for professional use It is suitable for receivers with SBUS output. The signal can be converted to PWM for servos and ESC. In this way, receivers with SBUS output can also have multiple uses ? Principle:? Analyze channels 1-8 in the SBUS signal and convert them into servo signals (PWM) Note: 1.?Please?understand?the?product?might?have?some?colour?difference?due?to?different?monitors?and?scenes. 2.?Please?allow?slight?deviation?for?the?measurement?data.?
