Feature: Wiring type: Fixed terminal Standby current: <5MA Input power: DC10V-14V RF frequency: 433Mhz Receive sensitivity: >97dbm Output terminal: NO, NC, COM RF working mode: Superheterodyne Decoding mode: MCU software decoding Transmitting distance: >100m ( open space) Support remote type: Learning code, Fixed code(Rolling code can be design) Working mode: Momentary, Toggle, Latching Time delay (5s, 10s, 15s )
About Working mode: - Momentary: Push the remote button, the relay connects, release the remote button, the relay disconnects. - Toggle: Push once the remote button, the relay connects, push twice the remote button, the relay disconnects. - Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect. - Time delay mode: Push the remote control button, the relay connects, from when releasing the remote button, after 5s or 10s or 15s, the relay disconnect automatically.
Clearing the code: Push the learning button on the receivers for 8 times, the codes will be cleaned. After clearing the code, all the remote control cannot work anymore. 1. Learning the code: (Momentary) Push the learning key on the receiver once time, it comes into the momentary setting mode. Wait for a moment, the LED will be off , it comes into learning state. Push the remote button, LED indicator on the receiver board will flash then come off. After 3 seconds, the LED indicator will be on again, learning successfully. 2. Learning the code: ( Toggle ) Push the learning key on the receiver twice, it comes into toggle setting mode Wait for a moment, the LED will be off, it comes into learning state. Push the remote button, LED indicator on the receiver board will flash then come off. After 3 seconds , the LED indicator will be on again , learning successfully. 3. Learning the code: ( Latching ) Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learned is for ON, the second time learned for OFF. For example: button A = ON , button B = OFF Push the learning key on the receiver triple time, it comes into latching mode. Wait for a moment, the LED indicator on the receiver board will flash then come off. Push the remote button A. LED flash for 5 times. Push the remote button B. LED flash for 5 times. After 3 seconds, the LED indicator will be on again , learning successfully. A = ON , B = OFF. 4. Learning the code: (Time delay mode ) Push the learning key on the receiver forth time, the time delay for 5 seconds. Push the learning key on the receiver fifth time , the time delay for 10 seconds. Push the learning key on the receiver sixth time, the time delay for 15 seconds. The LED indicator will be off . Push the remote button, LED flashes and off. After 3 seconds , the LED indicator will be on again, learning successfully.

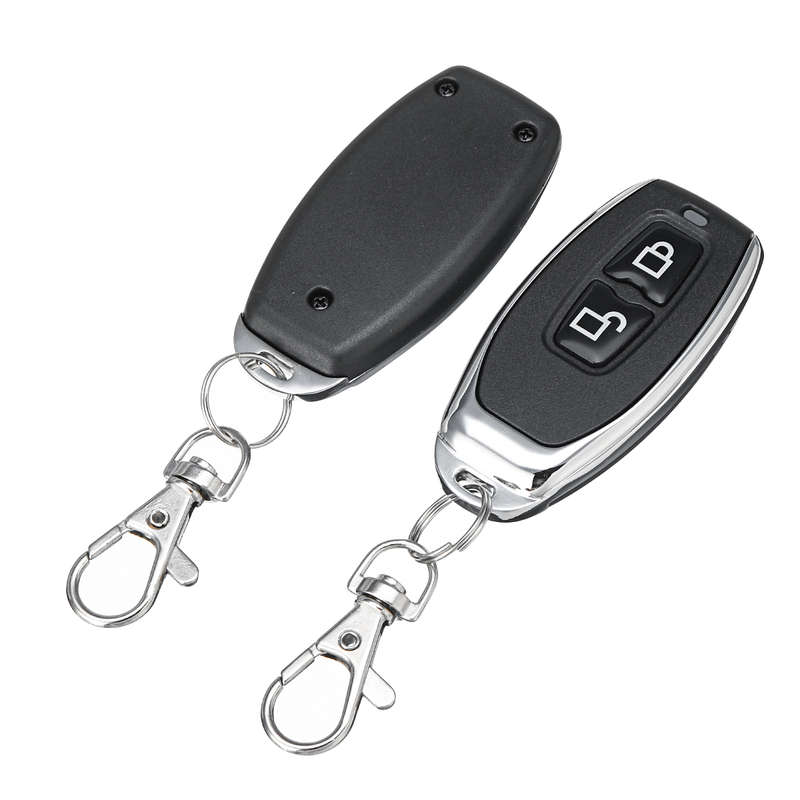

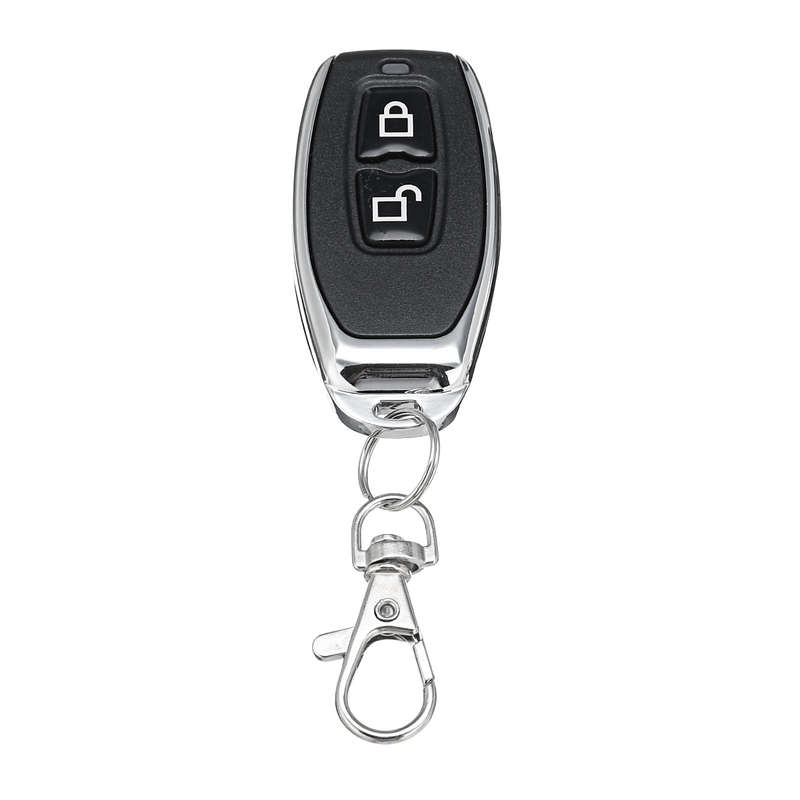

Package included: 1 x Remote ReceiverTransmitters(including battery)
Notes: 1. Manual measuring, please allow 1 ~ 3mm error, thank you. 2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the picture.
