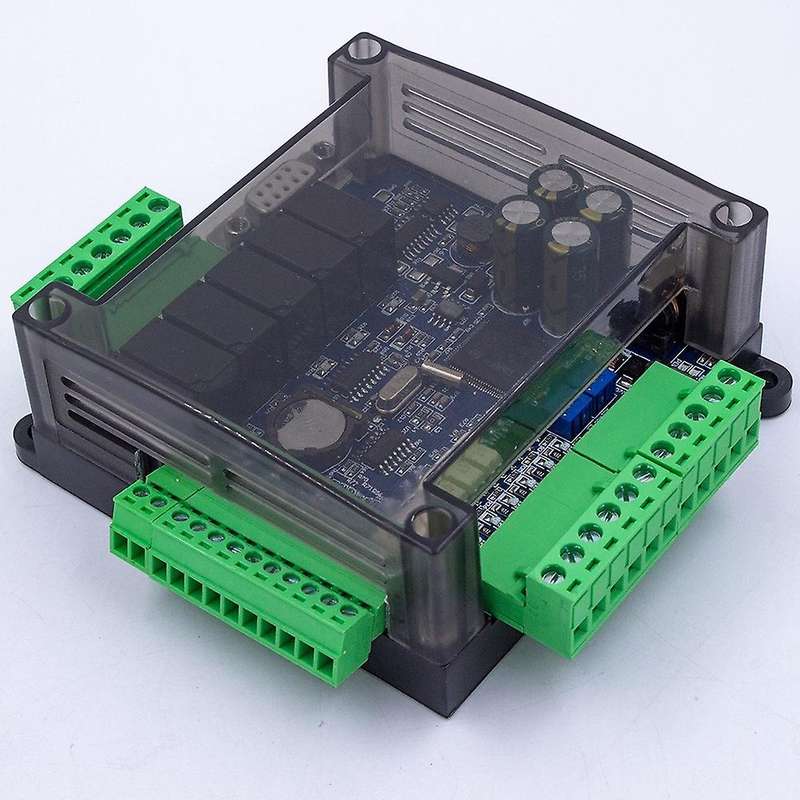

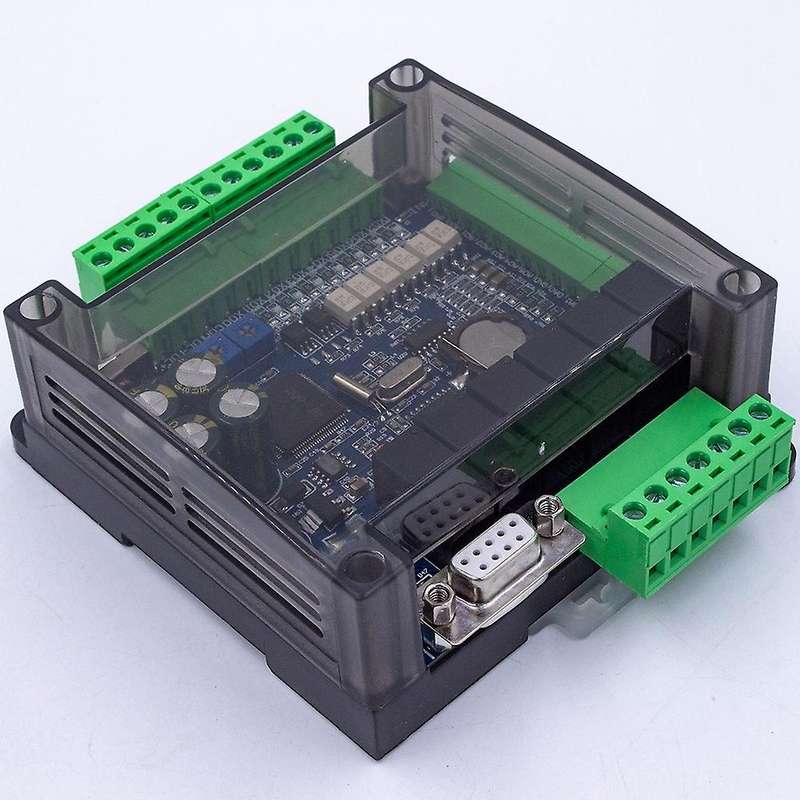

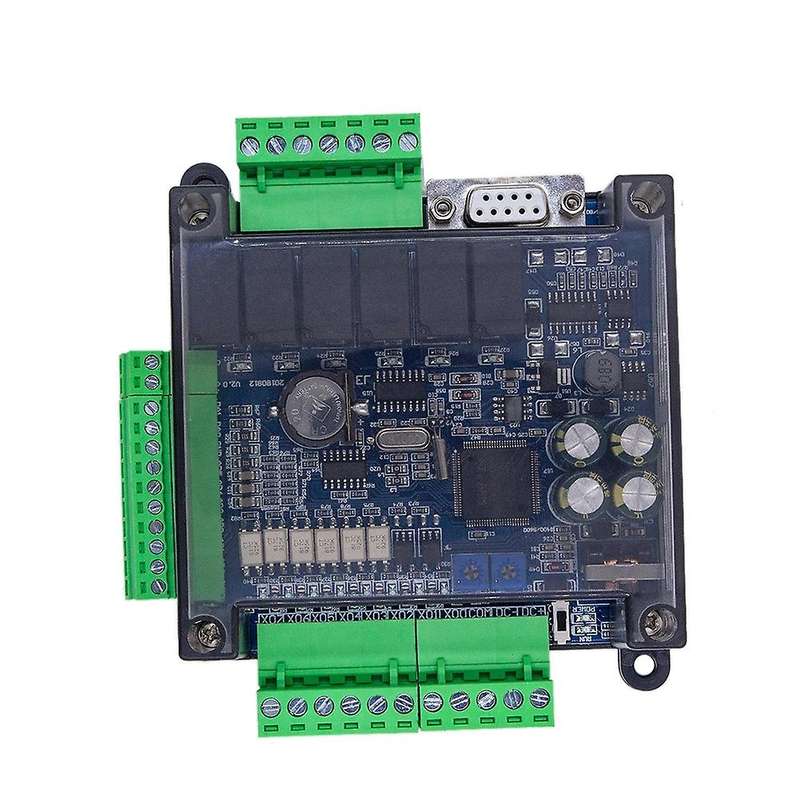

1pcs Fx3u-14mr Plc Control Board 8 Input 6 Output 24 V Plc Control

Input point X-elements x0-x7, DC24 input, low level valid.X0-5 is the high-speed count input (default: 12K, 100KHz).Analog input: six-way analog input, 12-bit accuracy, input voltage: 0-10V, 0-20mA;read the analog size with the RD3A guideline.The corresponding values 0-4095. Analog input of the two-way potentiometer, D8030, D8031.analog voltage WR3A command that corresponds to the value 0-4095.Analog Output: 2-Channel Analog Output, 12-bit Accuracy, Output Voltage: 0-10V.Analog Voltage Output WR3A Command, which is 0-4095.relay or transistor output, relay output current 5A. Transistor output DC24V has the current maximum 1A.Y0-1 is a high-speed output (maximum 100K). The PWM period is 0-32767US. The maximum speed current is 1A. External load common termination + 24, the other end received the PLC output connection Y.Intermediate relay M: M0-M3071, the power loss maintenance range can be adjusted.Material:plasticcolour:As ShownPackage Contents:1 x PLC Industrial Control BoardOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
