1S 18650 3.7V Lithium Battery Protection Board 4.2V C... (TYPE: WITHOUTNICKELSHEET | MODEL: 1S-5020)

1S 18650 3.7V Lithium Battery Protection Board 4.2V C... (TYPE: WITHOUTNICKELSHEET | MODEL: 1S-5020)

20 available / new
R356.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
szulou3466
93.38 % Positive ratings
Buyer protection
How you're covered
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641103101

SELECTED OPTION:
TYPE: WITHOUTNICKELSHEET
MODEL: 1S-5020

Specification:

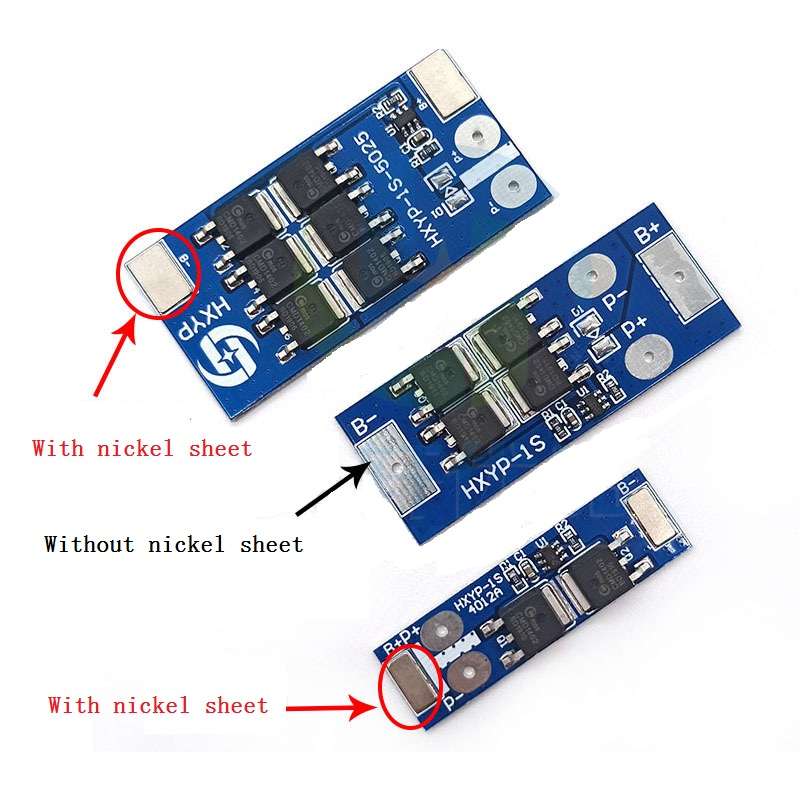

Model: HXYP-1S-5025 Size: 50*25*3.5mm Maximum operating current: 24A Upper limit instantaneous current: 42A Overcharge voltage range: 4.28V&pm;0.05V Over-discharge voltage range: 2.40V&pm;0.05V Quiescent current:< 30A Charging voltage: 4.2V Short circuit protection: can protect, delay automatic recovery
Model: HXYP-1S-5020 Size: 50*20*3.5mm Maximum operating current: 16A Upper limit instantaneous current: 34A Overcharge voltage range:4.28V&pm;0.05V Over-discharge voltage range:2.40V&pm;0.05V Quiescent current:< 30A Charging voltage: 3.7-3.9V Short circuit protection: can protect, delay automatic recovery

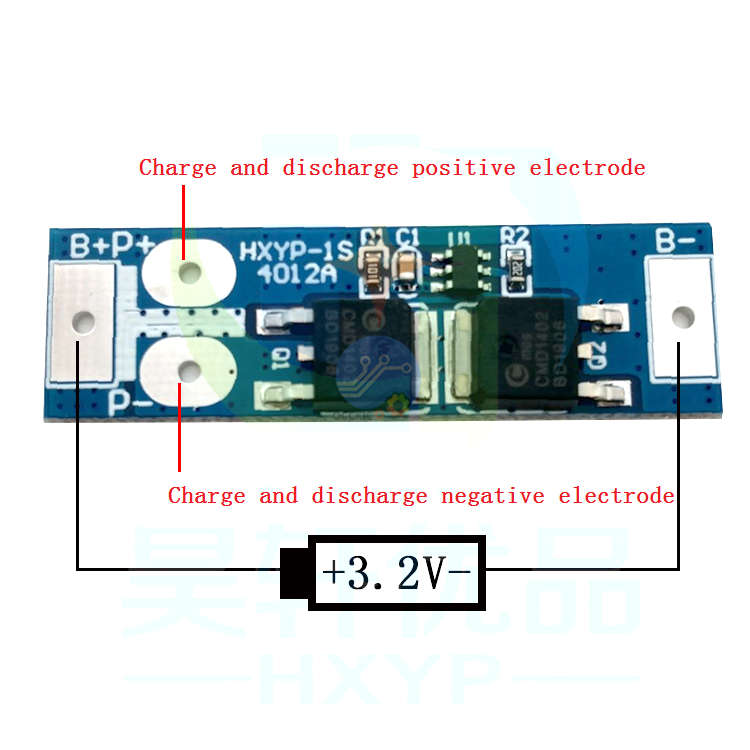

Mode: HXYP-1S-4012A Size: 40*12*3.5mm
Upper operating current:12A Upper transient current:17A Overcharge voltage range:4.28&pm;0.05V Overdischarge voltage range: 2.4&pm;0.05V The static current: Less than30uA Charging voltage: 4.2V Short circuit protection: Protected,delayed self - recovery
The main function: Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection.

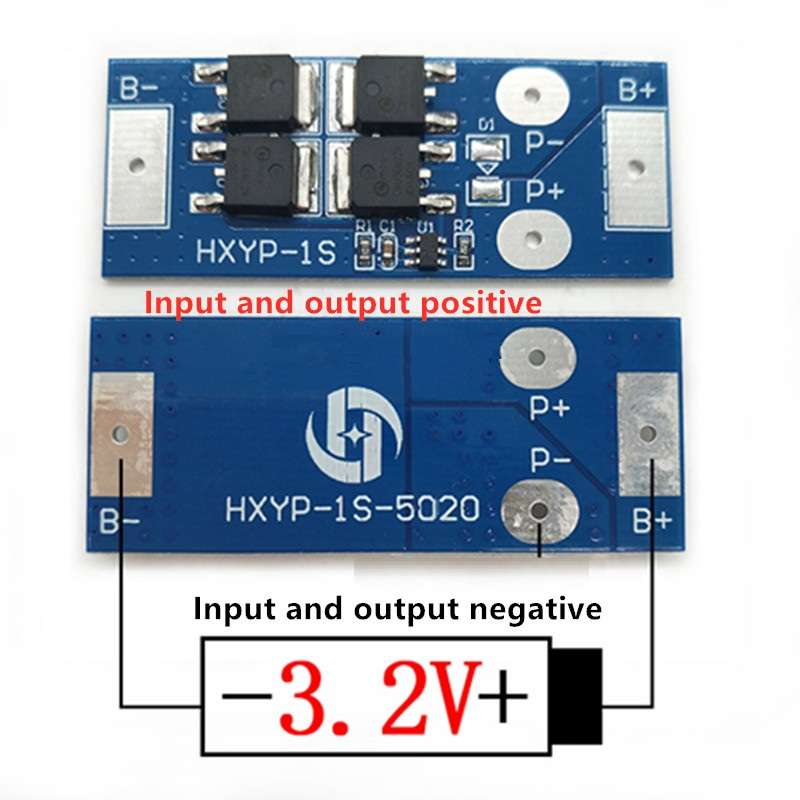

Wiring instructions: B+ is connected to the positive electrode of the battery. B- Connect the negative pole of the battery. P+ is the positive input of the battery pack output P- is the battery pack output and input negative
Package included:
1 X 1S 18650 3.7V Lithium Battery Protection Board


Note: Lithium iron phosphate protection board cannot be used for hernia lights, electric drill battery packs, power tool battery packs, electric fish machine battery packs, vacuum cleaners, sweeper battery packs, electric bicycle battery packs, children`s car batteries, motors or with motors This kind of product, 1W fisheye LED light
Precautions: 1. Please pay attention to the use conditions of input and output voltage and load current so that the power consumption in the protection board does not exceed the allowable power consumption of the electrical parameters. 2. The load current should not work for a long time between the upper limit continuous working current and the overcurrent protection current. 3. When the battery is connected, it may not be able to discharge. In this case, the charger can be connected to the normal working state. 4. Although this protection board has built-in anti-static protection circuit, please do not touch the board with your hands when the electric protection board is working, so as to avoid static electricity to damage the protection board.
