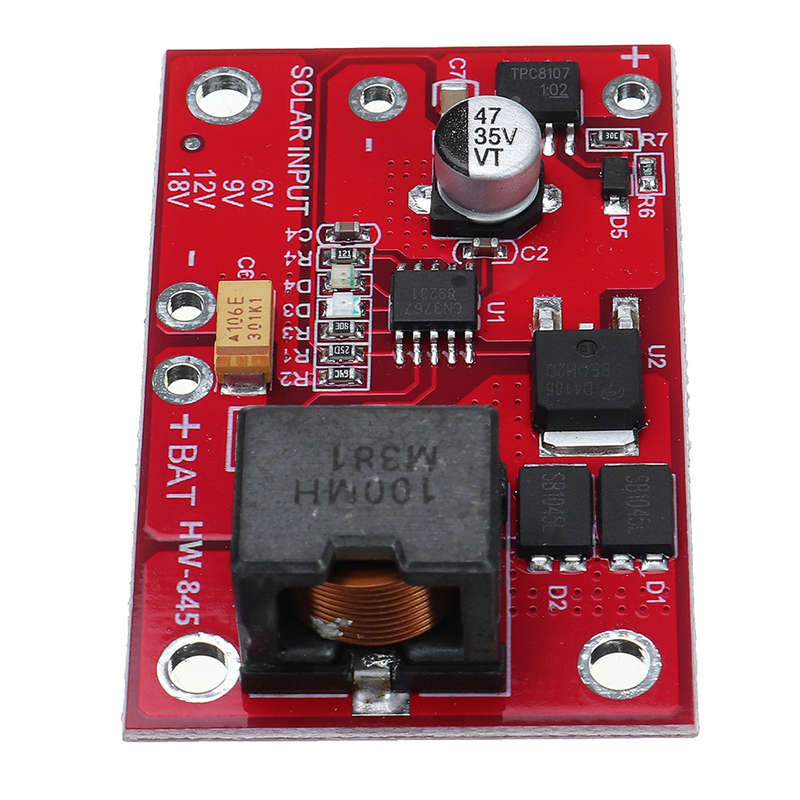

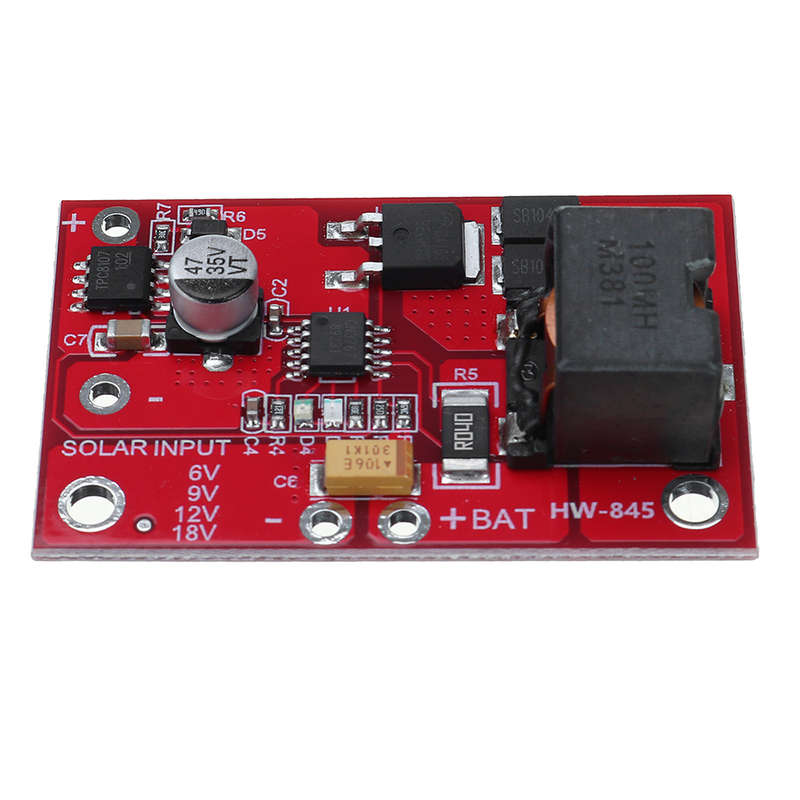

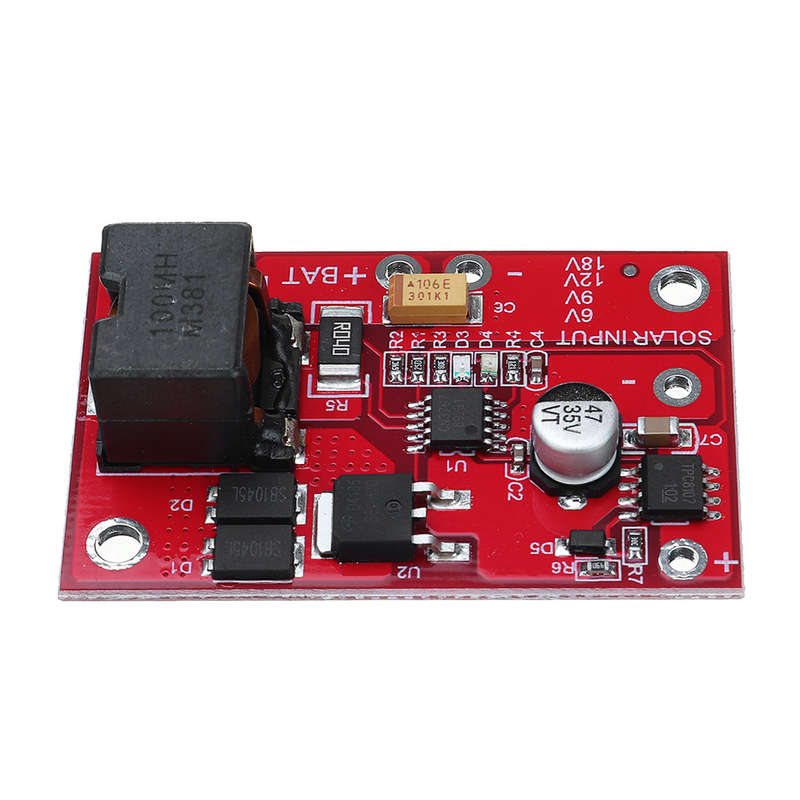

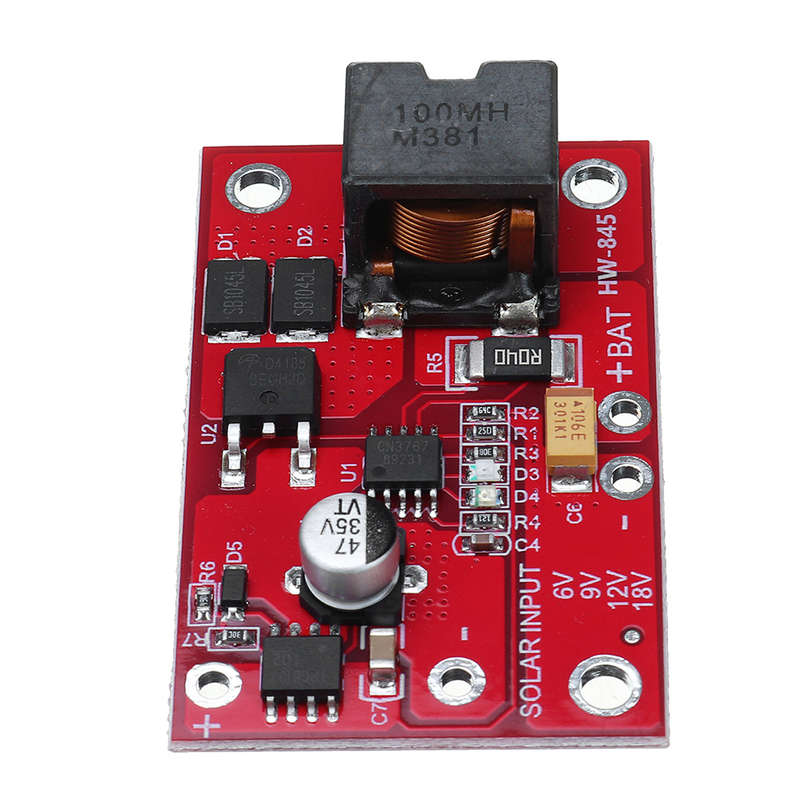

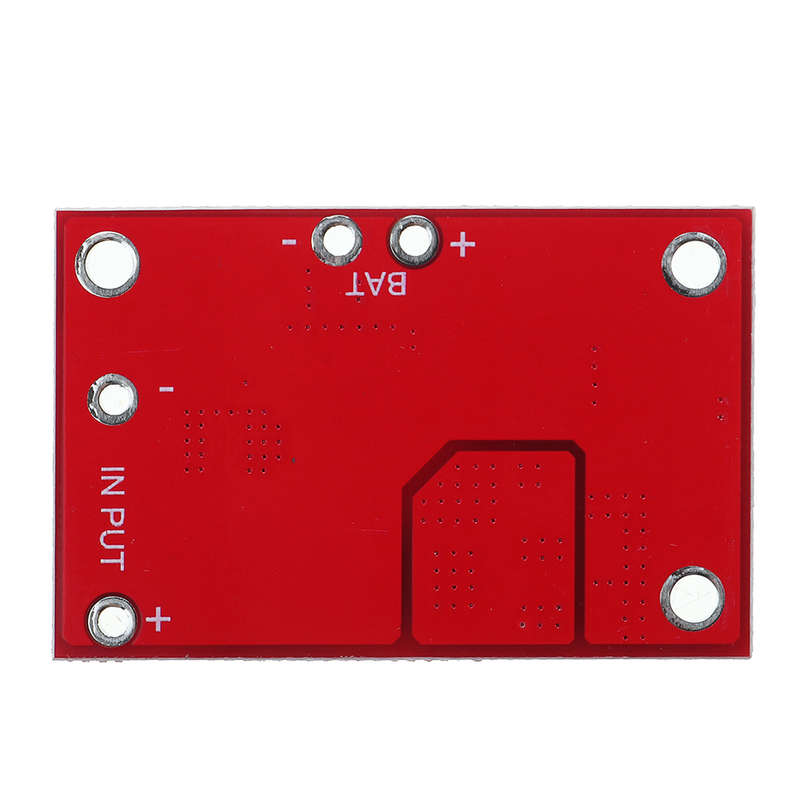

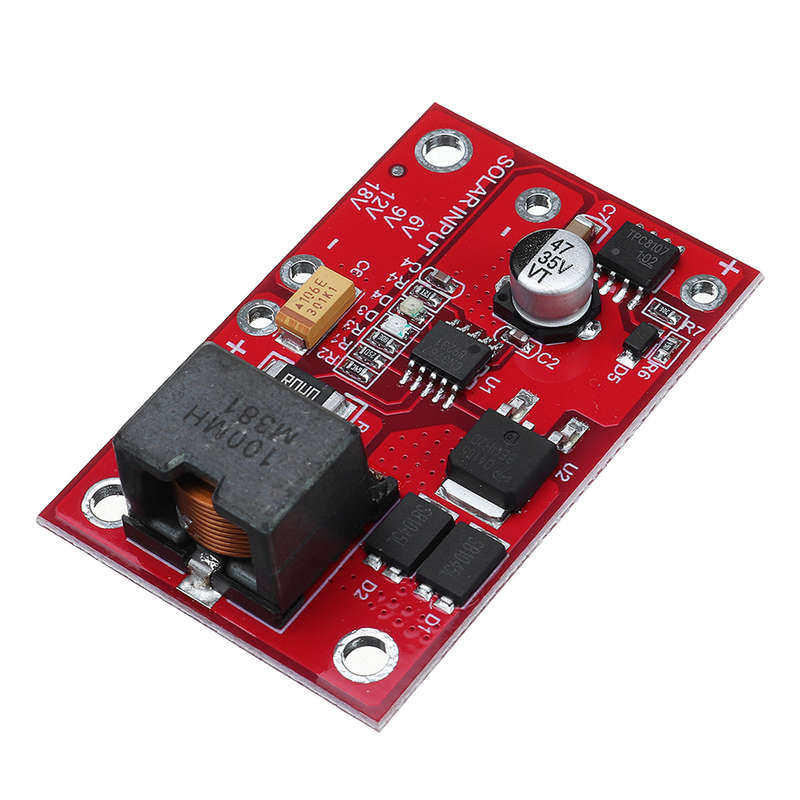

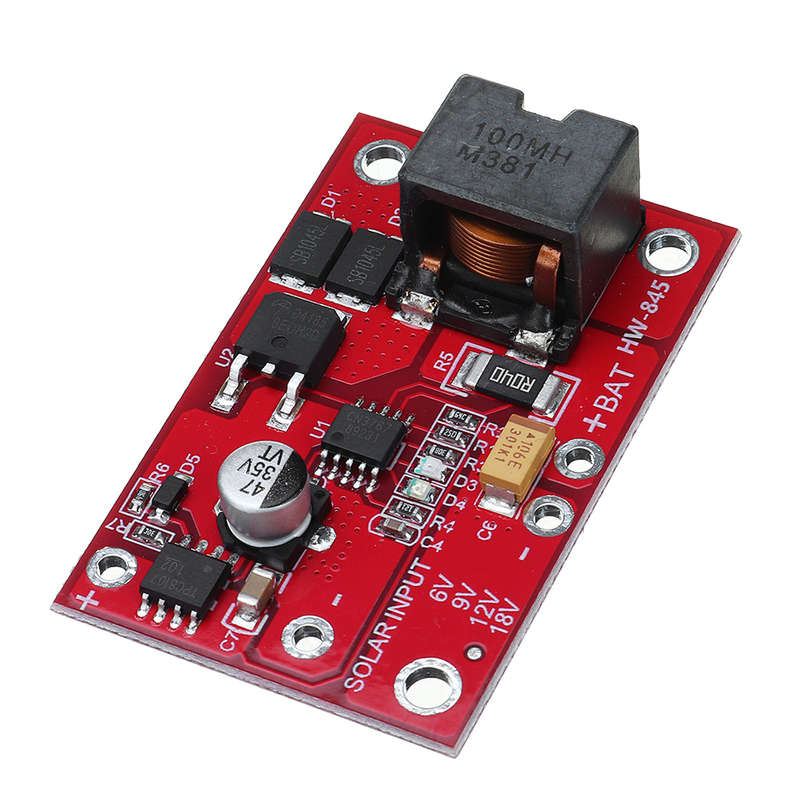

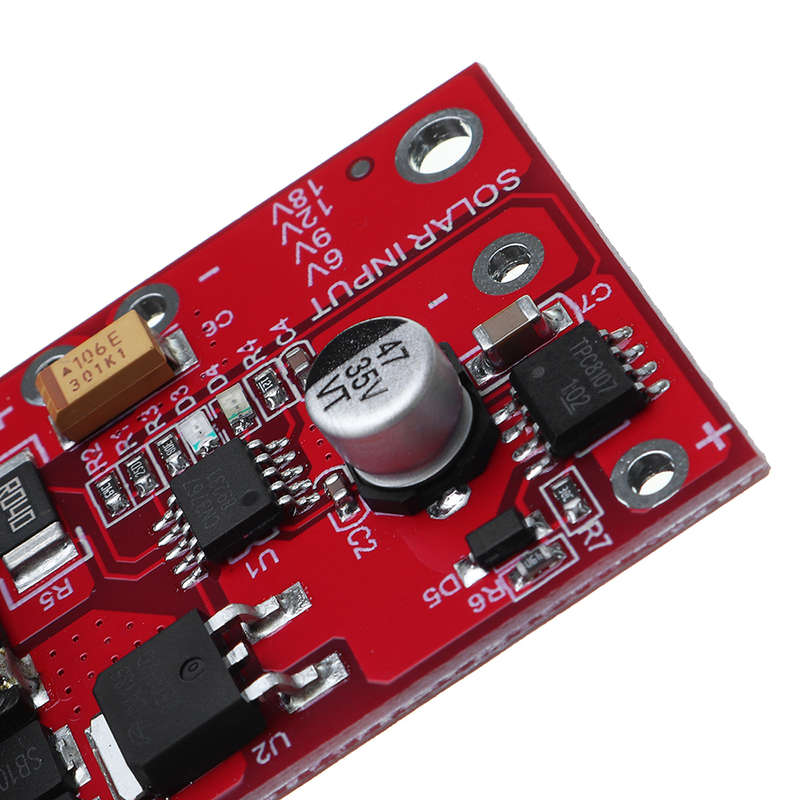

1S MPPT Solar Panel Controller CN3791 6V / 9V / 12V 3A Solar Power Manager Module 1... (VOLTAGE: 6V)

SELECTED OPTION:
VOLTAGE: 6V

Feature:
Maximum power points tracking (MPPT) of solar cells is to ensure that photovoltaic cells always output maximum power when the light intensity changes, so as to make full use of solar energy. In general, the MPPT function needs to be realized by using a switch-mode DC-DC converter to maximize the product (output power) of the output voltage and the charging current. The maximum power points tracking function of photovoltaic cells is realized by switching step-down mode dc-DC conversion. Its input voltage careach up to 28V, which is very suitable for applications with large difference between input voltage and battery voltage.
Description:
1. High-end mPpt solar maximum power tracking charging management chip, with trickle-flow, constant-current and constant-voltage charging management. 2. Adopt imported high frequency and low on-off internal resistance double mos tube, large current diode, high efficiency flat high power inductor, alloy current detection resistor. 3. Super large aluminum heat sink at the bottom to ensure the long time stable operation of large current. 4. High speed and efficient charging method 5. Dual status indicator the red light flashes and the green light is always on when the battery is not connected, and the red light is on when the battery is charging, and the green light is on at the same time when the battery full stop.
Functions:

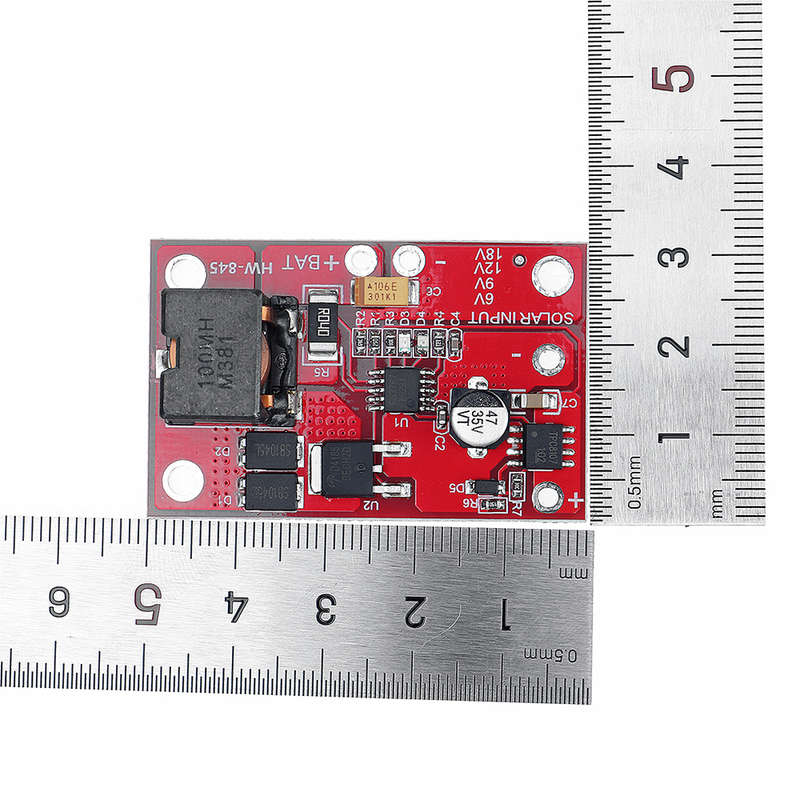

Input voltage: Select corresponding module according to the nominal voltage of solar panel Output voltage: Nominal 3.7V, full end voltage 42V lithium battery, single series lithium battery charging management Output current: Maximum constant current 3A Wiring: Welding IN+: Input positive pole IN-: Input negative pole (solar) OUT+: Battery positive OUT-: The negative end of the battery Size: 31* 49.5 mm
Package includes:
1 x1S MPPT Solar Panel Controller
