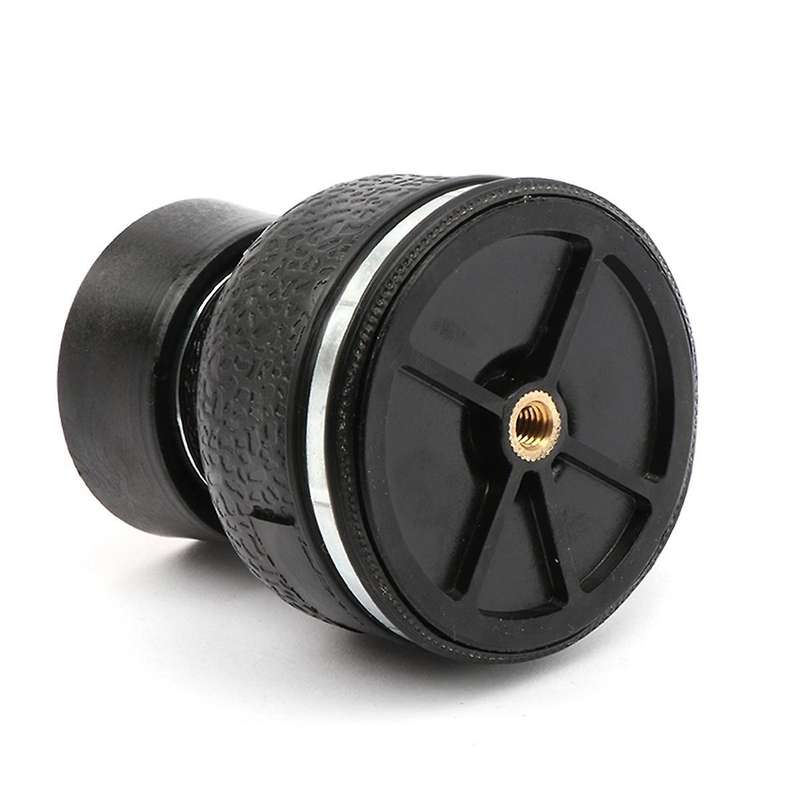

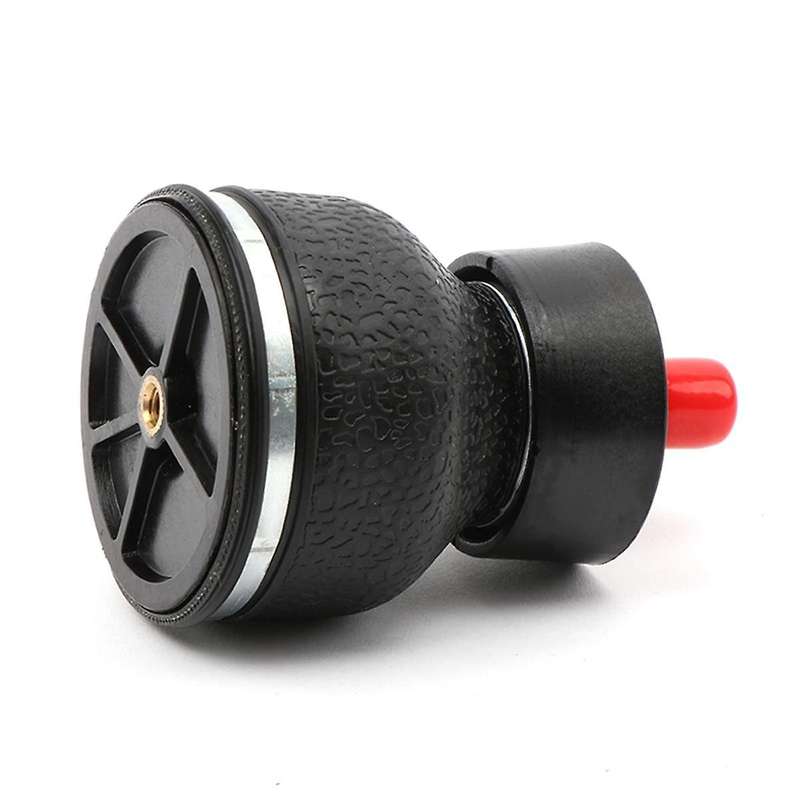

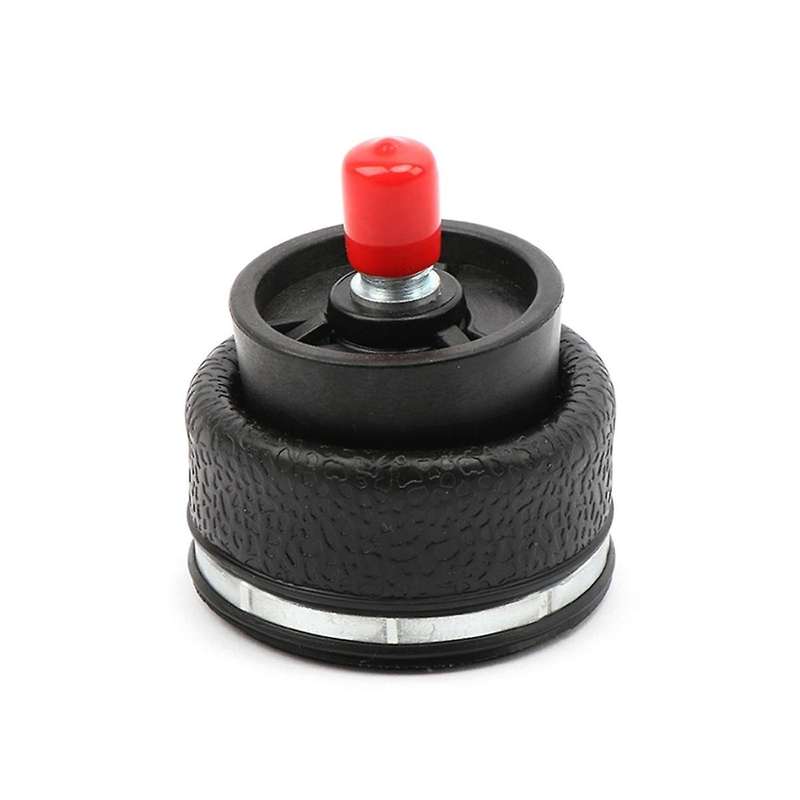

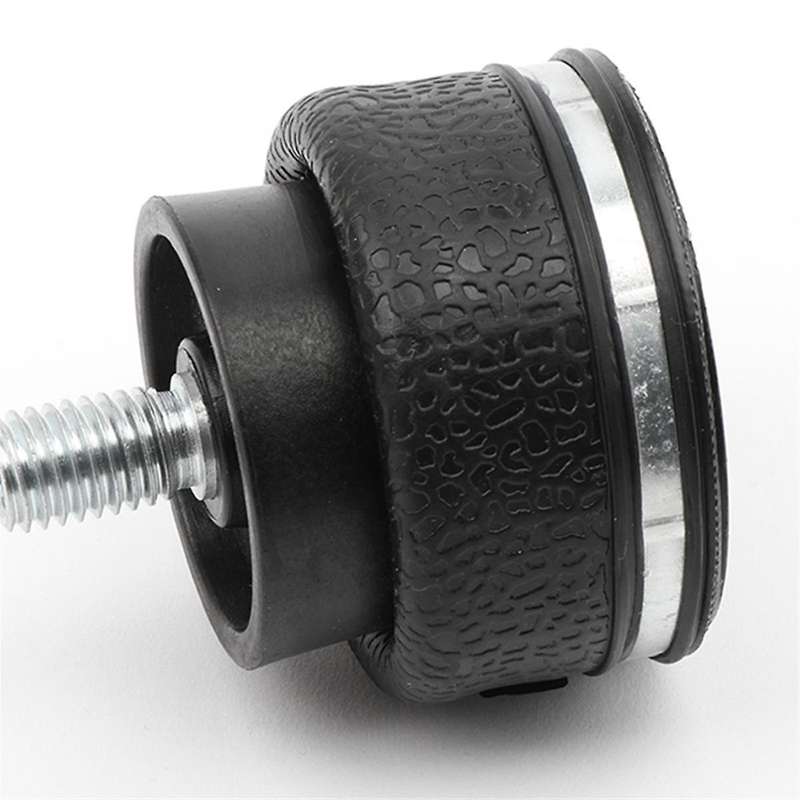

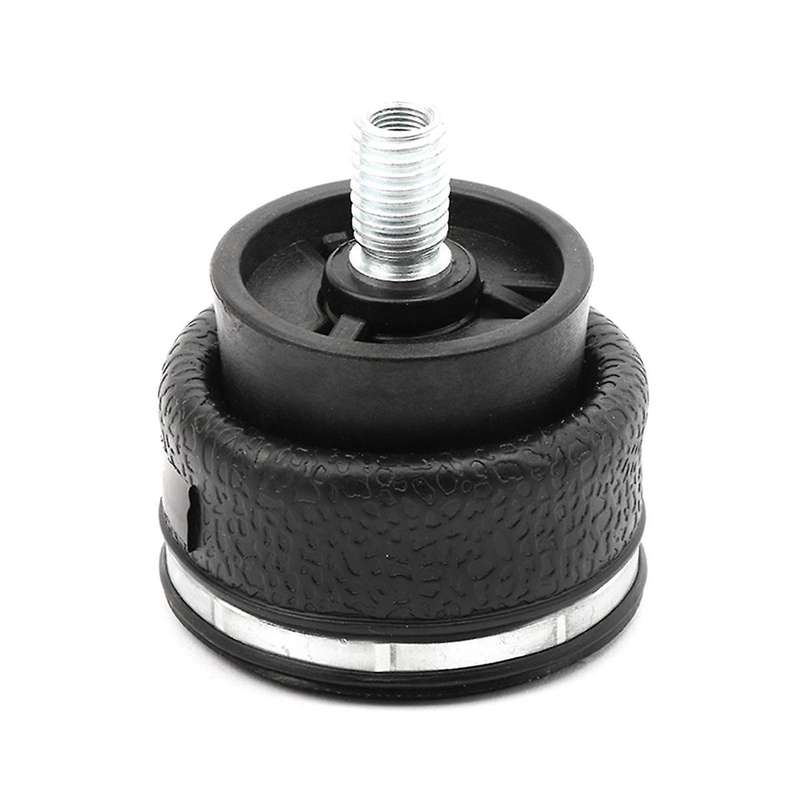

1S3-013 W02-358-3000 Super Cushion Mini Lobe Sleeve Seat Air Spring for Motorcycle

Type:Spring Type:Gas FilledApplication:Auto Suspension PartsApplication of 1S3-013 air spring: This air spring was designed to be used in the shock, the current amount is relatively large and motor.But there are many customers used in the relatively small force on the small machinery and equipment, there are precision instruments. Many customers respond to its shock absorption effect is very good.We designed G3014 this is completely replaceable 1S3-013.Description: NO.:1S3-013 \/ 1S3013 \/ 1S3 013 NO.:SZ37-6 \/ SZ37 6 \/ SZ376 NO.:W02-358-3000 \/ W023583000 \/ W02 358 3000Descripition and :G.Weight: 0.6 KGPISTON NUMBER: -06-7-017 \/ ASC067017 \/ 06 7 017Lower Plate OD : 2.40 (in.) \/ 60.96 MMExtended Height : 3.60 (in.) \/ 91.44 MMBumper Height : 1.50 (in.) \/ 38.1 MMUpper Plate OD : 3.2 (in.) \/ 81.28 MMLower Plate OD: 2.40 (in.) \/ 60.96 MMExtended Height: 3.60 (in.) \/ 91.44 MMBumper Height: 1.50 (in.) \/ 38.1 MMUpper Plate OD: 3.2 (in.) \/ 81.28 MMAir Spring Type: SleevePartType2: Air Spring SleeveNUM_CODE: 800001Detailed parameters:Vibration isolation - dynamic characteristic valuesDesign height H: recommended 2.37 inchPressure p [psi]406080100120Vol.V [in.]Force (Load) [lbf]2313274395536779Spring rate [lbf\/in]1742413123784429Natural frequency [Hz]2.82.72.72.62.69Pneumatic application - static characteristic valuesForce F [lbf]Pressure p [psi]406080100120Vol.V [in.]Height H [inch] 3.002.23.144.85.712Height H [inch] 2.502.73.64.65.66.59.8Height H [inch] 2.003.14.15.16.27.37.3Height H [inch] 1.503.44.55.66.77.94.9Material: ABScolour: blackPackage Contents:1 x Only the above package content, r products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
