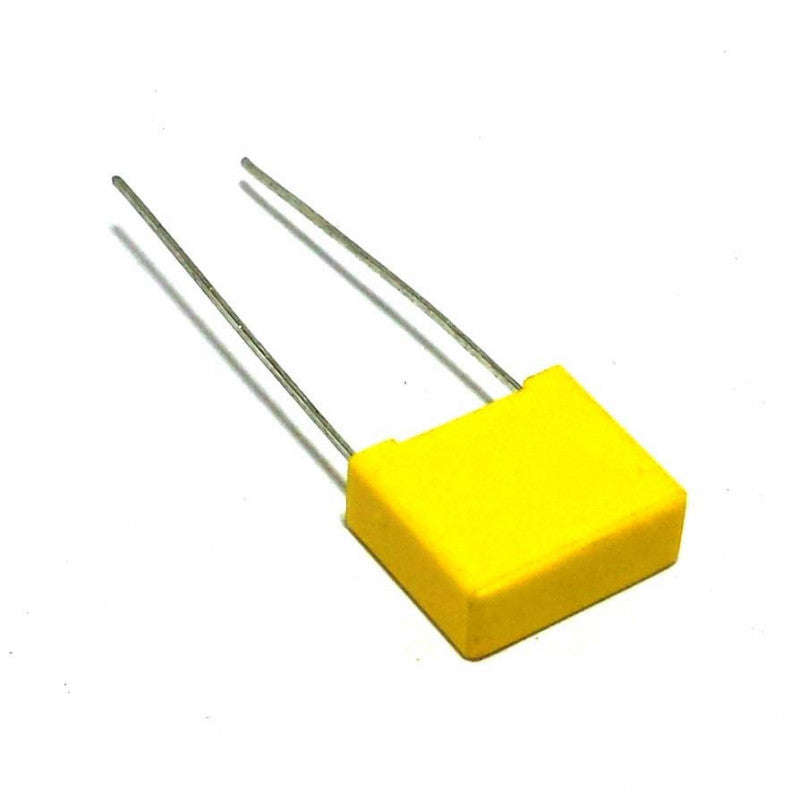

1UF CAP 275VAC

Unlock the power of the film capacitor, a versatile component widely used in electrical and electronic devices. Also known as plastic film capacitors or film dielectric capacitors, this reliable and cost-effective technology offers a range of benefits.

Key Features:

• Non-Polarized: Suitable for AC signal and power applications.
• High Precision: Designed with extremely accurate capacitance values, ensuring a longer shelf life and service life.
• High Tolerance: Handles kilovolt-range voltages and robust surge current bursts.
• Low Failure Rate: Boasts a very low average failure rate over time.

Construction and Properties:

• Thin Film Design: Created using a sophisticated film drawing technique, resulting in thin ribbons that are assembled into rolls.
• Materials: Available in various materials, including polyester, metalized film, polypropylene, PTFE, and polystyrene.
• Capacitance Range: From less than 1nF to 30F, with voltage ranges from 50V to over 2kV.
• Versatile Applications: Ideal for high-frequency filtering, bypass, voltage smoothing, filters, audio crossovers, and more.

How it Works:

• Electric Charge: Stores electric charge and energy on electrodes, operating in conjunction with an inductor to create LC oscillating circuits.
• Electric Field: Charge travels under the electric field when a medium is present, inhibiting flow and causing charge accumulation.

Applications:

• High-Frequency Circuits: Used in circuits for high-frequency filtering, bypass, and first or second-order filtering.
• Wide Industry Use: Found in electronics, household appliances, telecommunications, electric power, hybrid cars, wind power, solar power, and more.
• Traditional Applications: Suitable for voltage smoothing capacitors, filters, audio crossovers, and energy storage.

In summary, the film capacitor is a go-to solution for stability, cost-effectiveness, and low inductance. Whether you're in need of high-frequency performance or traditional applications, the film capacitor delivers reliability and efficiency.

Technical Specifications
