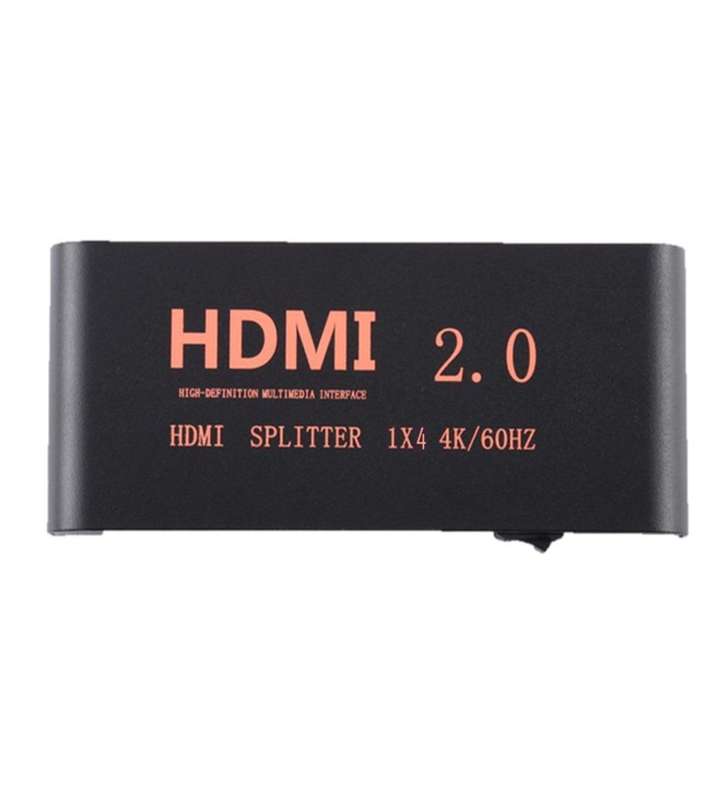

1x4 HDMI 2.0 4K/60Hz splitter

Support HDMI 2.0 ,HDCP2.2 Support 3D video format Support high resolution up to 3840X2160/60HZ Support the max baud rate of 6G and TMDS clock can be up to 600 MHz Support 8/10/12 bit deep color Support AWG26 HDMI standard cable: when the resolution is 1080p and below, input up to 8 meters, output to 8 meters. when the resolution is 4K, input up to 8 meters, output up to 8 meters. Support single HDMI source, accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc. Built-in IR extension function.( it can work with our HDMI 2.0 repeater which has IR-RX to receive the IR command to remote control the source) Support serial port online upgrade Support EDID management DIP EDID Switch Description? DIP 1 2 3 4 X 0 0 0 :Copy output1 EDID only X 0 0 1 : EDID MIX X 0 1 0 : EDID Download (RS232) X 0 1 1 : 4K X 2K 30Hz X 1 0 0 : 4K X 2K 60Hz X 1 0 1 : 1080P 3D 2ch X 1 1 0 : 1080P 2D 2ch X 1 1 1 : 1080P 2D 5.1ch 1 is used for upgrades, 1 is upgrading mode, 0 is normal working mode (switch down is 1, otherwise is 0) Working Mode Description? There are two working mode for product, normal working mode and upgrading mode, which is decided by DIP EDID switch 1, 1 is upgrading mode?0 is normal working mode. IR Extension description: There is an IR TX Extension port, it can work with an optional HDMI 2.0 repeater which works as IR-RX and IR extended via HDMI cable Output port: Only output1 can support CEC function, output 2 support IR extension function

What's in the box
1x Splitter
1x Power Supply
1x Manual
