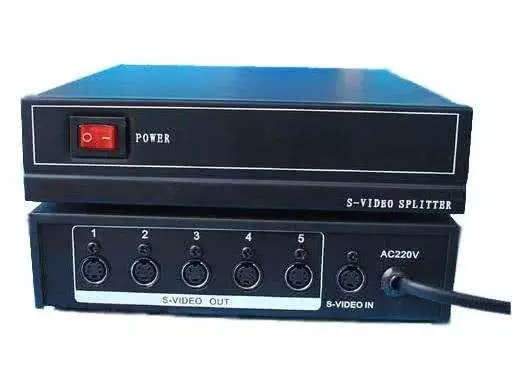

This Svideo signal splitter will split the input signal from a Svideo player / source to 5 identical outputs to be connected to 5 x Svideo displays. The outputs are synchronized.
Technical Specifications
Model SVSP4
Signal :S-video (4-pin Svideo connector)
Input port: 1 x S-video (4-pin Svideo connector)<
Output port : 5 x S-video (4-pin Svideo connector)<
Video input :1Vp-p
Video impedance :75
Video gain : 0dbDG1db
AC area:185V-250V 50Hz
Rated power : 5W
Operating Environment Temperature : -10-40
External Dimensions :167×180×45mm
Warnings :
To avoid Electrical Shock, do not open the splitter. Refer servicing to qualified personal only.
Put this device on a place with sufficient ventilation.
Do not expose the device to high temperatures, high humidity or direct sunlight.
Before cleaning, power off device. Don't use chemical wipes.
