2.0 Dual Channel TDA2030A Power Amplifier Board AC/DC Power Supply Module With Housing

20 available / new

R405.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3465

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641103361

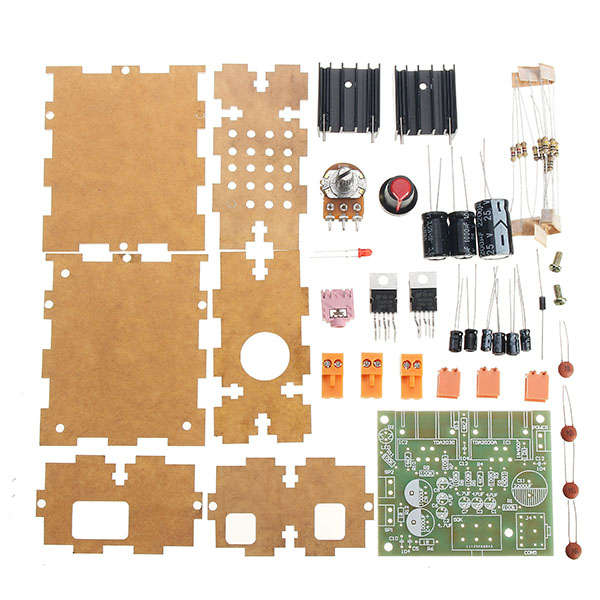

Note: This is a DIY kit, you need to assemble it. (No instruction supply)

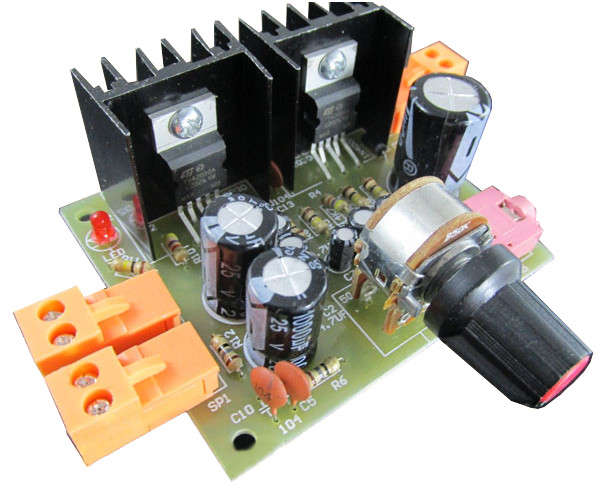

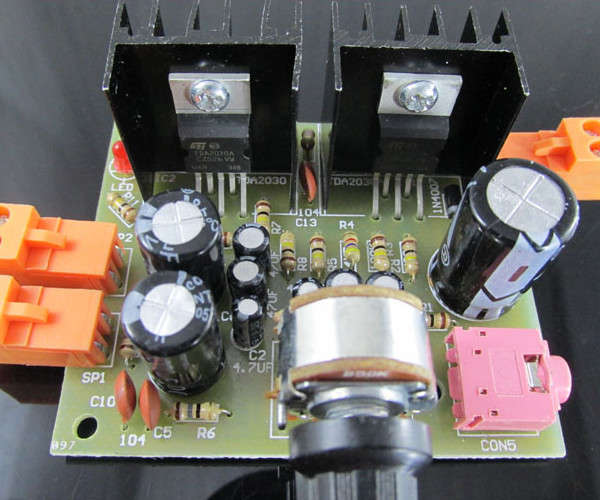

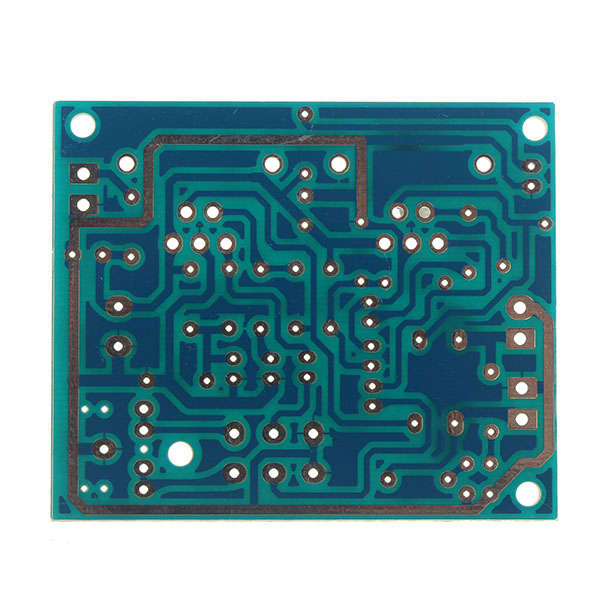

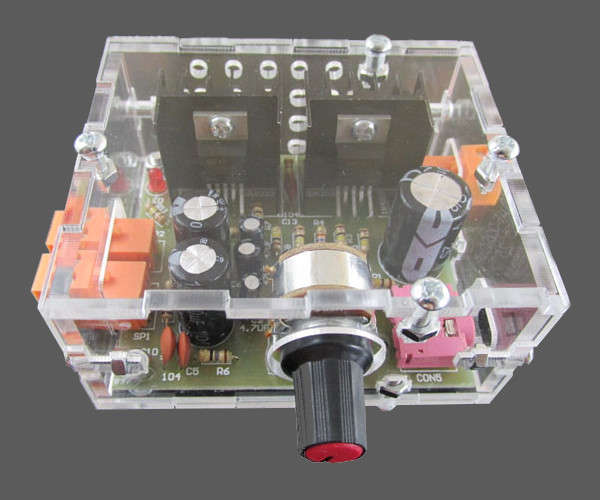

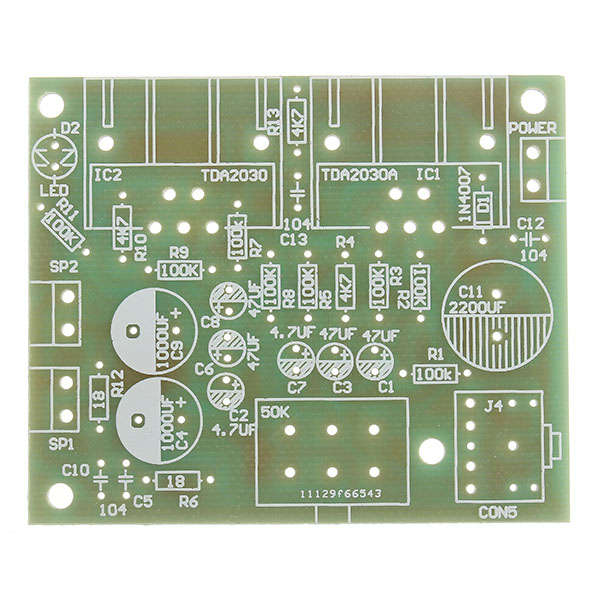

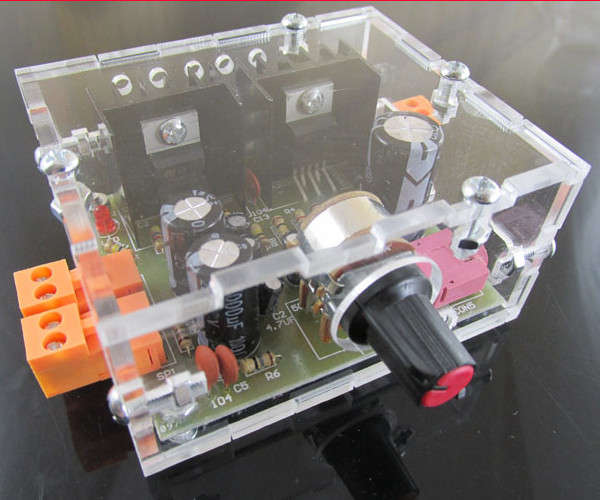

Performance parameters: Input voltage: AC9-15V or DC9-15V (DC input has polarity, AC input has no polarity) Output power: Po = 15W + 15W (RL = 4) Output impedance: 4-8 PCB size: 64x54mm, thickness: 1.6mm, material: FR-4 Shell size: 72mm x 61mm x 36mm (L*W*H) Feature: This module is a pure post-stage amplifier, which is a simple volume amplifier, the input audio source is not amplified by any modification and directly promotes the sound of the speaker. The sound is pure and natural. The power amplifier board is composed of two TDA2030 amplifier IC composed of pure post-amplifier, single power supply, the input voltage use a single power supply AC 9V-15V, component layout is reasonable, powerful 15Wx2, almost no static noise, Easy to install, very suitable for home audio system modification or installation, widely used in a variety of active speakers. Package includes: 1 x TDA2030A Power Amplifier Board
