2,000W Inverter Battery UPS Function Charger 25A 12v Power supply Double display DIY plug and USE

TBDEZ  2,000W, 12V DC-AC Inverter (Modified Sine Wave)
Twin LCD Display. Output 220Vac Input 12Vdc

Cables to connect the unit to a battery and 225vac to power outlet the 25 Amp smart charger Auto through switch (UPS Function) are included.

*External Batteries Required Recommended 200amp storage, AGM or lead acid Deep Cycle

MODEL: TBD-EZ2000Msw
CAPACITY:3,3KVA/ 2000W
Power Factor: 0.6
Intput voltage range: 90-280VAC

LINE MODE
Output Bypass mode: 0utput voltage same as input voltage

BATTERY MODE
Output voltage: 220Vac > Transfer Time: 10ms typical
Waveform: Modified Sine wave

OVERLOAD CAPABILITY
Bypass Mode (in VA and Watts): Load >110%15% , alarm 5 mins then fault Load >130% 15%, fault immediately.
AVR Mode (in VA and Watts)@ Input voltage > 170VAC: Load >100%15%, go to bypass mode
Battery Mode (in W): 1) Load>110% 15%, overload alarm for 15s, and then will switch to fault mode for 10s, Then unit will re-start 5 times. 2) Load>120% 15% , fault & cut off O/P immediately.

SHORT CIRCUIT PROTECTION
Line Mode: Breaker
Battery Mode: Current limit +Firmware Protection

BATTERY
Battery Voltage: 12VDC 25A
Acceptable Battery Type: Rechargeable AGM (Absorbed Glass Mat) or lead-acid battery, Deep cycle battery
Polarity Reserve Protection: Yes (fused)
Charger built-in I/P range: 280Vac auto switchover

SMART CHARGER
Constant Current Charger Voltage:14.7Vdc 2%
Floating Charge Voltage: 13.7Vdc 2%
Maximum Charge Current: 25Amp Auto controlled
DC Start Voltage: >10.8Vdc

PHYSICAL
Dimension, D X W X H (cms): 50 x 44.5x 42.3
Net Weight (kgs): 6

 Factory Limited Warranty 1 year

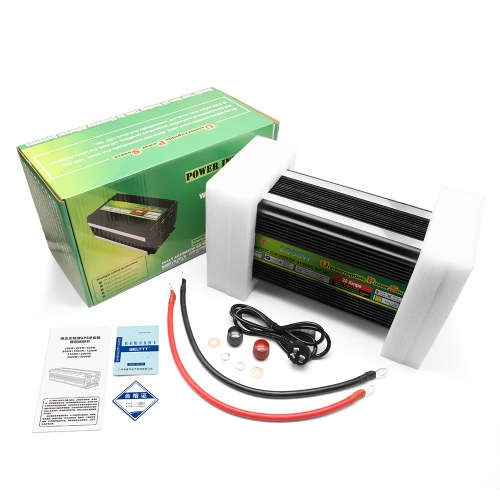

What's in the box
1 inverter model TBDEZ 2000MU
2 cables Battery (Positive Red Negative Black)
1 Power cord for recharging batteries and auto switch to AC power
