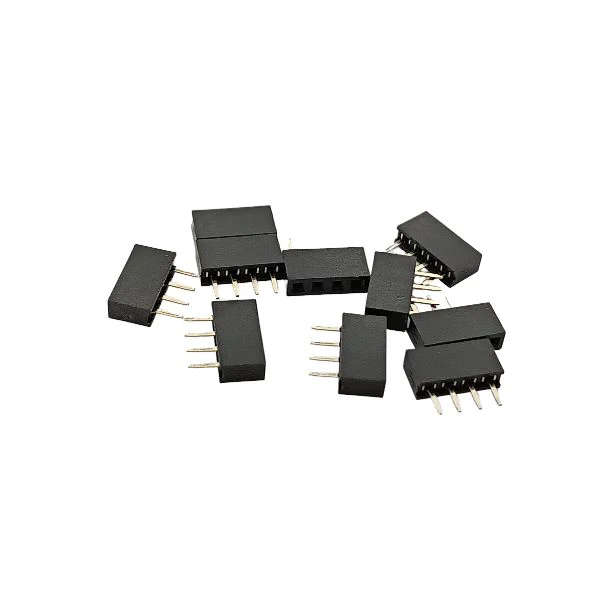

2.0mm 4 Pin Female Header Socket (Pack of 10)

Do you have a hobby project that requires reliable and durable components? Look no further than the 2.0mm Single Row Female Header Socket! Maximize your projects with the 2.0mm Single Row Female Header Socket—it's the perfect fit for any hobbyist! With a pitch of 2.0mm, rated current of 2AMP, and working temperature from -40°C to +105°C, it's designed to handle a large variety of projects.

Female headers are the corresponding parts of headers that mate directly to male pin headers. Female headers (often referred to as socket headers) are made of a plastic housing with many sockets where the male pins are meant to fit. These Female headers are perfect for when you have a project that does not require a permanent connection to a PCB board and gives you a more versatile project.

For the hobbyist who requires a small connector to save on space and that requires a small pitch as the microcontroller that's being used doesn't use the standard 2.54mm pitch. These connectors are perfect for those power-hungry projects that need to take up as little space as possible. They can handle a good amount of current and volts, they also have a good amount of heat dissipation, and they are also very small so they don't take up that much space.

2.0mm Single Row Female Header Socket Specification

• Pitch 2.0mm
• Rated current: 2AMP
• Working temperature: -40°C to +105°C
• Contact resistance: 20m Max
• Insulation resistance: 1000M Min
• Withstanding voltage: AC 500V
• Housing: Plastic
• Pin: Brass
• Gender: Female
• Operating Frequency: High Frequency
• Mounting Type: Through Hole
