This audio amplifier module supports MP3, cellphones, computers, TV AUX audio input, pure HIFI audiophile sound quality, treble pure and transparent, gentle and delicate midrange, and bass surging shock. Support BT connection, support connect to the audio system, U disk, and sound card. With volumes adjustment function, support the left and right channel volumes adjustment, master volumes adjustment, and subwoofer volumes adjustment. Cellphone APP control supports both Android and iOS systems, APP visual operation, playing mode, volumes, sound, up and down song control, and playing pause.
Features:
Support MP3, cellphones, computers, TV AUX audio input, pure HIFI audiophile sound quality, treble pure and transparent, gentle and delicate midrange, bass surging shock.
Cellphone APP control supports both Android and iOS systems, APP visual operation, playing mode, volumes, sound, up and down song control, and playing pause.
BT connection, support for cell phones, tablets, laptops input, etc.
Support the connection of the audio system, you can plays music by connecting the audio.
Multiple connection design, support connecting U disk and sound card.
With volumes adjustment function, support left and right channel volumes adjustment, master volumes adjustment, and subwoofer volumes adjustment.
It adopts a rotary encoder knob which can achieve 360ￂﾰ stepless tuning, smooth and convenient operation.
With various protective mechanisms: overvoltage, under-voltage, overheating, direct current detection, and short circuit protections.
Specifications:

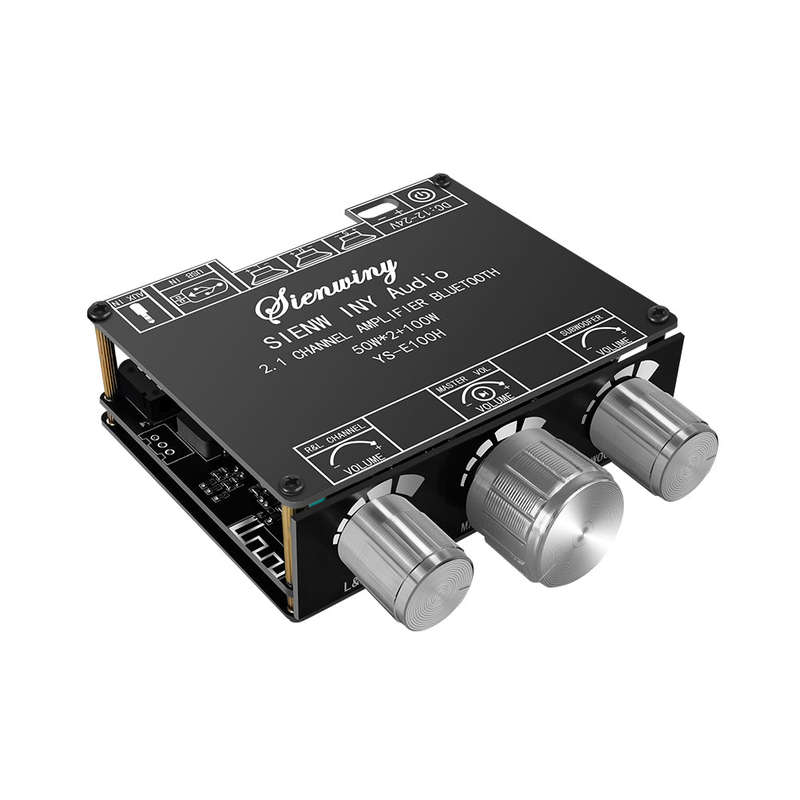

Name: 2.1 Channel BT Audio Amplifier Module
Material: printed circuit board
BT version: 5.1
Audio channel: 2.1 channel
Input mode: BT + AUX + U disk + USB sound card
Power supplies: DC9-24V/5A or more
Audio output: left and right channel + subwoofer
Frequency ranges: 20Hz-30KHz
Volumes adjustment: high-end encoder knob adjustment, smooth feel
Output power: 50W*2 (left and right channel) + 100W (subwoofer)
Satellite box (left and right channel) with speakers: 10W-100W /4ￎﾩ-8ￎﾩ
Subwoofer (subwoofer) matching speakers: 20W-200W /2ￎﾩ-8ￎﾩ
Special features: support APP control
Item size: 82 * 84 * 24mm / 3.23 * 3.31 * 0.94in
Item weight: 116g / 4.09ounce
Package size: 123 * 85 * 41mm / 4.84 * 3.35 * 1.61in
Package weight: 161g / 5.68ounce

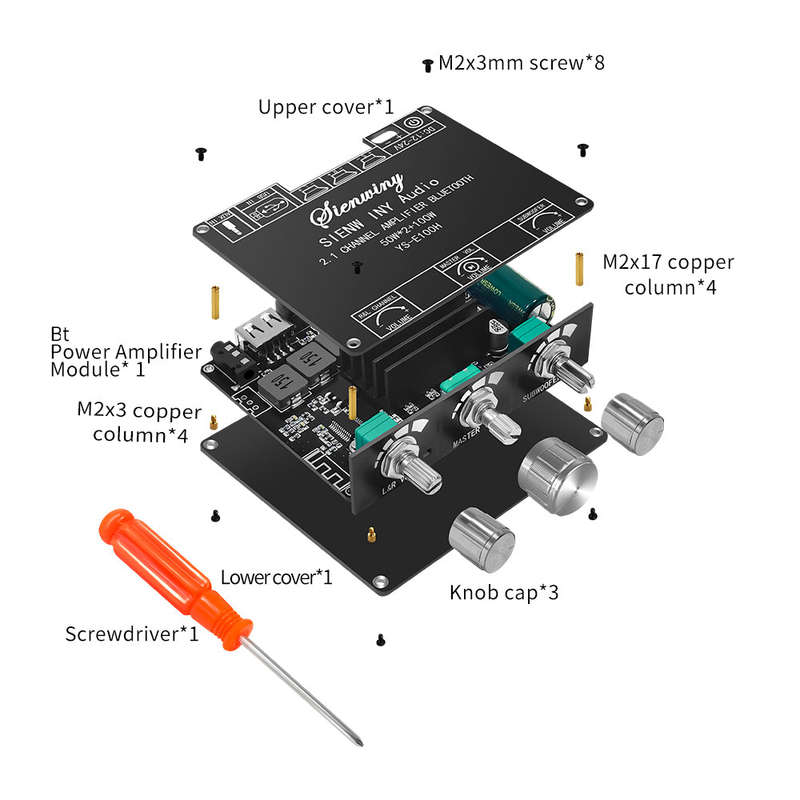

Packing List:

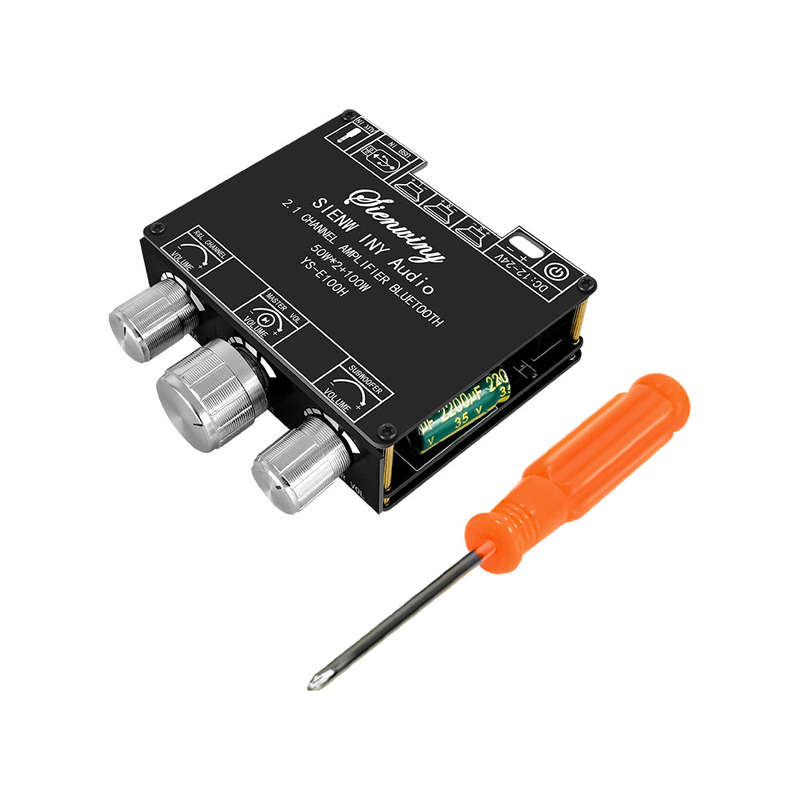

1 * BT Audio Amplifier Module
1 * Screwdriver
