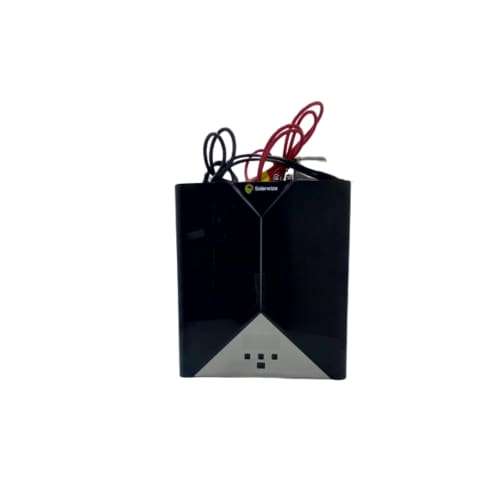

2,2kva / 1800w 24v Modified Sine Wave Inverter With Pwm Charge Controller Gf 5126

This is a Dc-to-AC inverter with integrated solar battery charger, which can be used as a long run-time UPS, an energy saving solution or an automotive inverter.

Features: Automatic Line-To-Battery switch over Built-In enhanced AC Charger Built-In solar charger controller Configurable output source priority, charger source priority and charger current High Efficient DC to AC conversion with minimized energy loss Rack design and wall mounted design for flexible Installation Intelligent 3-stage charger control for efficient charging and preventing overcharge Auto restart upon AC Recovery User-Friendly LCD and LED Indications with setting function Smart temperature compensation technology to extend battery life Multiple protection low battery alarm, low battery shutdown, over charger protection, overload protection, over temperature protection, short circuit protection Capacity :2200VA/1800W
Input Voltage:230V
Output Waveform:Modified Sine-wave
Nominal Battery Voltage:24V
Max.PV Input Voltage :32V-36V
Max.PV Input Current:65Amp
Dimensions (DxWxH):280mmx250mmx95mm
Net Weight (kg):2.38
Floating Charging Voltage:27.4V
WDA60
