Specifications:Color: White
Input: AC 200V-245V 50/60Hz
Output: 3 x 1500W(inductive 500w)
Material:ABS
Channels type:2 way/3 way
Launch battery:1 x 12V 23A(not included)

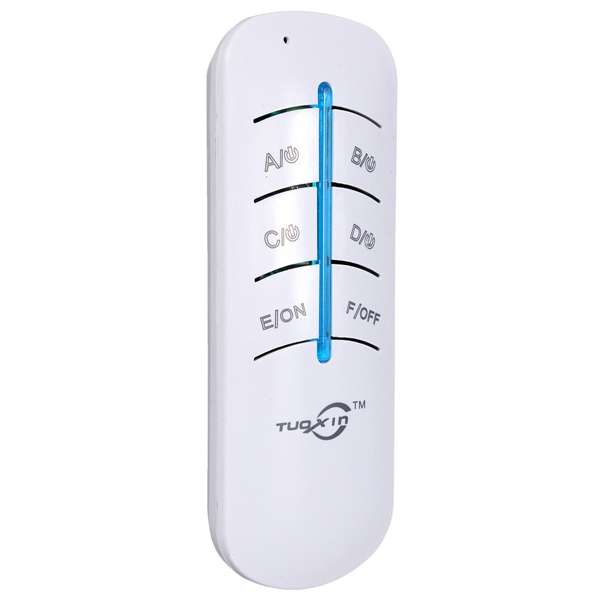

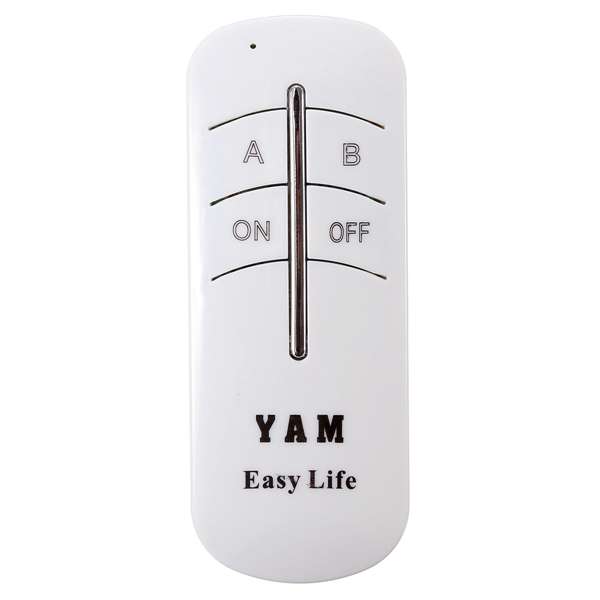

IR remote size: 110*42*15mm
Switcher size: 60*44*24mm
Remote distance: about 8-15 meters indoor,about 20 meters outdoors

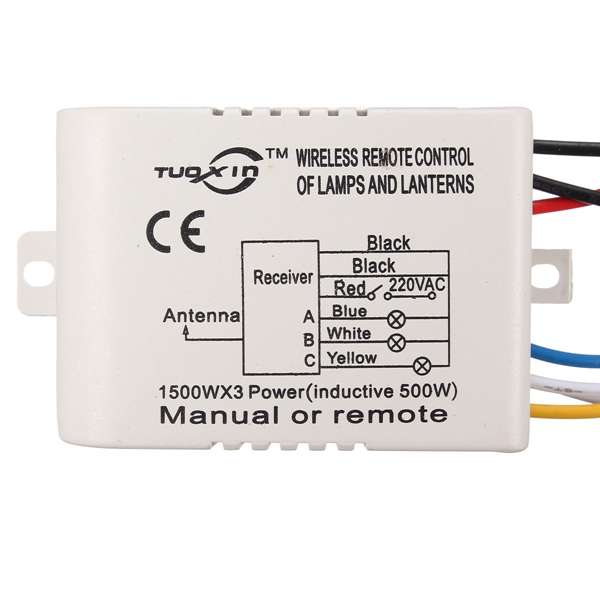

Features: 1.ON-OFF Digital Wireless Remote Control Switch .Apply electrical for drop light, crystal lamp, modern low-pressure lamp, absorb dome light,
ceiling lamp, fluorescent lamp, energy-saving lamps, exhaust fan, etc...
2. Each way loaded:Incandescent bulbs less than 800W (resistive load) energy-saving lamps less than 150W (inductive load) energy-saving lamps can not be more than 5xLED 50W and LED number can not more than five
3. Fast and easy installation, not obstructed by walls, capable of connecting any loads.
4. Remote controller and switch can be used simultaneously for ease and flexibility

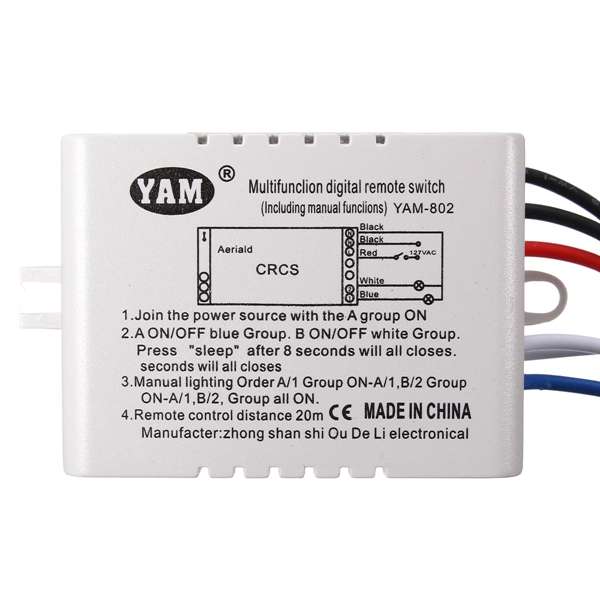

Operation Instruction:1.Join the power source with the A group ON
2.A ON/OFF blue group.B ON/OFF white group.Press “sleep” after 8s will all close.
3.Manual lighting Order A/1 Group ON,B/2 Group ON,C/2 Group ON,all Groups On

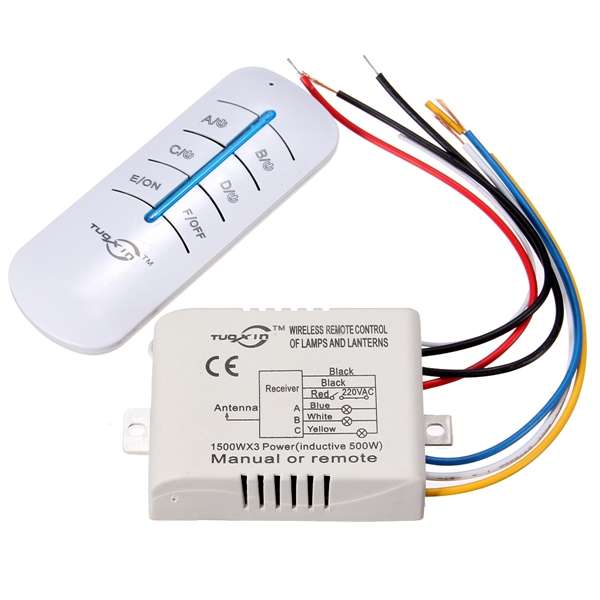

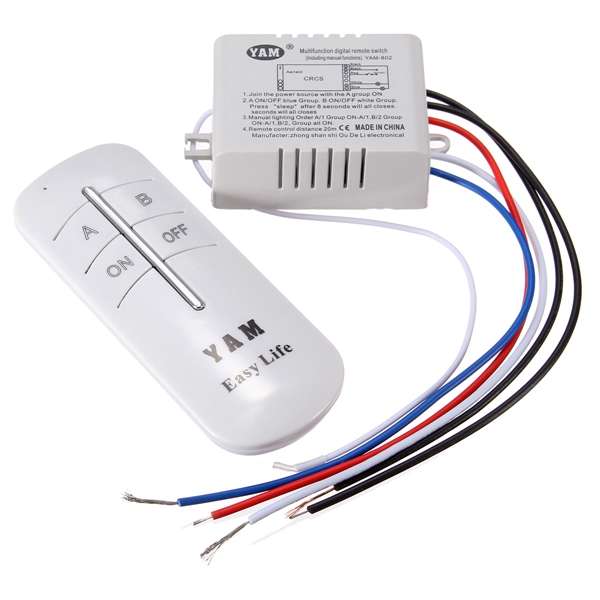

Package Included:1 x Switch
1 x Remote Control
