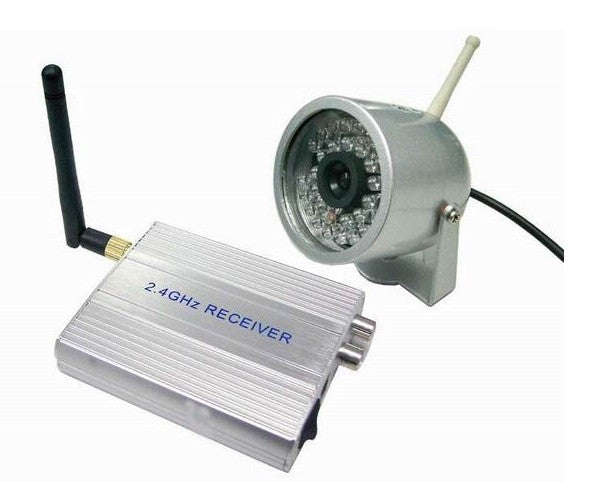

2.4 GHZ Night Vision Ccd Wireless Camera Kit

Feature:
2.4G Outdoor Night Vision CCD Wireless AV Color Camera
Wireless AV Color Transmission, Min 100m unobstructed transmission range
1/4 CCD, 420TV lines sharp picture display
Built-in IR lights, Night vision function
Alloyed shell, Weather-proof function for Outdoor usage
Specification:
Camera
Imaging Sensor: 1/4-inch CCD
CMOS Total Pixels: PAL: 512(H)*582(V)
NTSC: 512(H)*492(V)
Horizontal Resolution: 420TV Lines
View Angle: 39Degree
Minimum Illumination: 1.0Lux / F2.0 & 0Lux(IR ON)
Gain Control: Automatic
Frequency: ISM 2,400~2,483MHz 4CH*
Transmission Power: 2mW
Modulation Mode: FM
Bandwidth: 18MHz
Power Supply: +12VDC
Consumption Current: 120mA & 270mA(IR ON)
Operating Temperature: -10 ~ +50 / +14 ~ +122
Storage Temperature: -40 ~ -85 / -40 ~ +185
Operating Humidity: 85%RH
Dimensions(W*L*H): 56*65mm
Weight: 330g
Unobstructed Effective Range: 100m(Min)
LED Continuous Working Life: 6000h
Night Vision Range: 15m
Receiver
Power Supply: +12 VDC
Consumption Current (Max.): 190mA
Receiving Frequency: ISM 2,400MHz~2,483MHz
Input VSWR: 2:1
Demodulation Type: FM
Intermediate Frequency: 480MHz
Frequency Stabilization: +/- 100 ppm
Local Leakage at RF Input Terminal: <=-55 dBm
Receiving Sensitivity: <= -85 dBm
Video Output Signal Impedance: 75 ohm
Video Output Signal Level: 1.0 V +/- 0.15 Vpp
Video Output Signal Polarity: Negative
Video S/N Ratio: 38dB
Audio Output Signal Impedance: 600 ohm
Audio Output Signal Level: 1.25 V +/- 0.25 Vpp / 1 kHz
Audio Output Frequency Range: 250 Hz ~ 10 kHz
Left Subcarrier Frequency: 6.5 MHz
Unobstructed Effective Range: 100 m (Min.)
Dimensions(W*L*H): 92* 77 * 22 mm (Excluding Antenna)
Weight : 200 g
Operating Temperature : -10 ~ +50 (Degree C) / +14 ~ +122 (Degree F)
Storage Temperature: -20 ~ +85 (Degree C) / -4 ~ +185 (Degree F)
Operating Humidity: 85% RH
