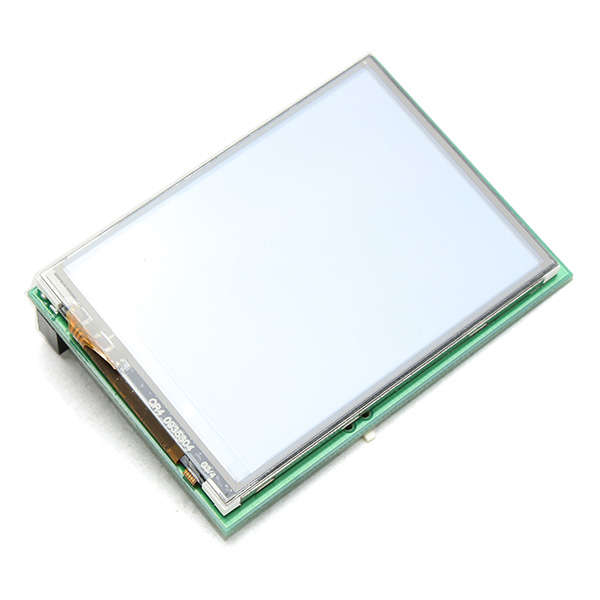

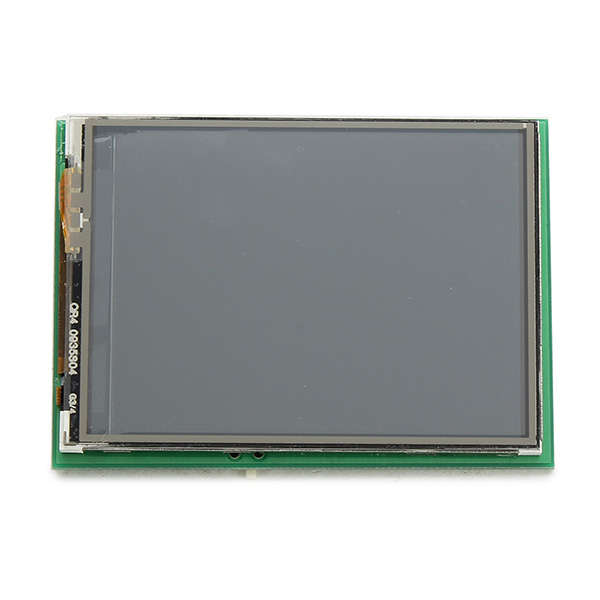

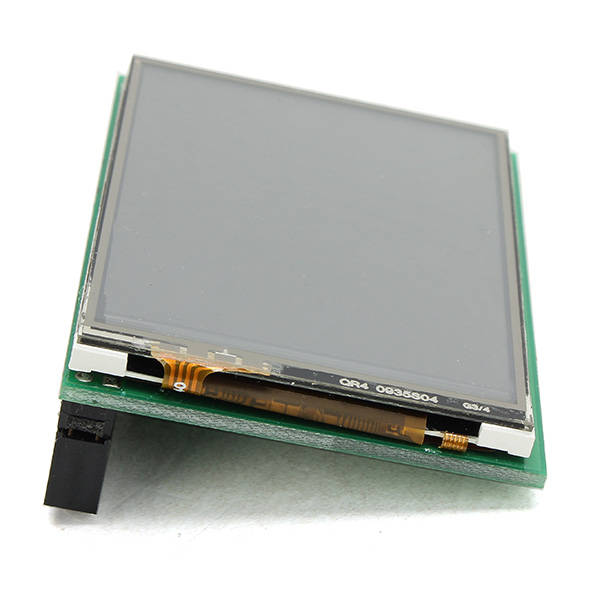

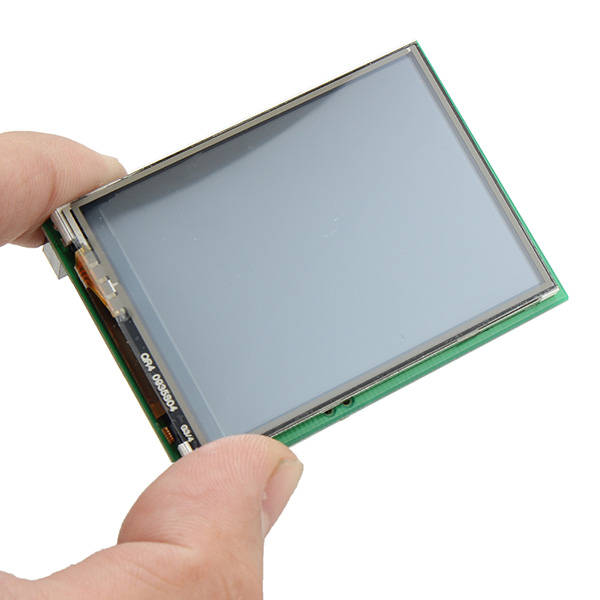

2.4 Inch TFT LCD Display Module Touch Screen For Raspberry Pi B B+

2.4 Inch TFT LCD Display Module Touch Screen For Raspberry Pi B B+
Features:
-Support access raspberry pie, easier to use

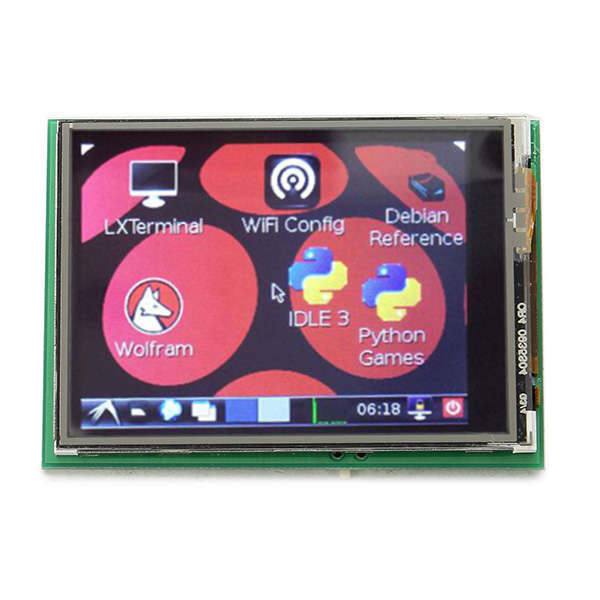

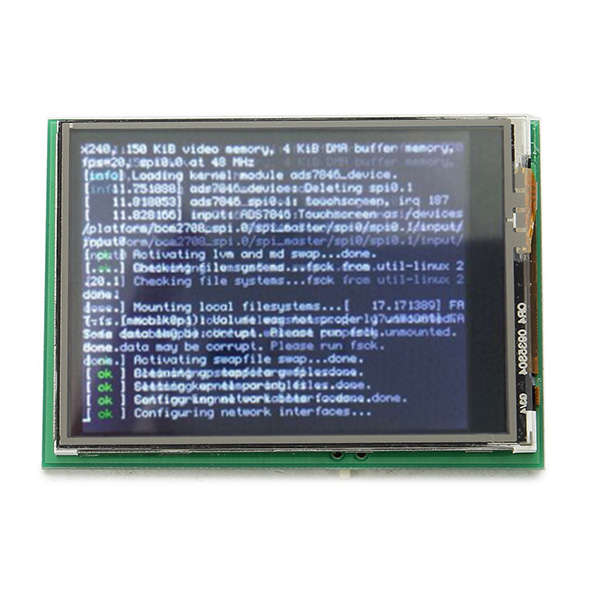

-Support Raspbian system that allows your system:
-Support for video playback (MP4 and other formats)
-Support for touch control camera (17 kinds of camera mode)
-Support soft keyboard (mouse and keyboard can also be controlled from the system)
Key Parameters:
LCD Type: TFT
LCD Interface: SPI
Touch Screen Controller: XPT2046
Colors: 65536
Backlight: LED
Resolution: 320*240 (Pixel)
Aspect Ratio: 4:3
Power Consumption: TBD
Backlight Current: TBD
Operating Temp.: TBD

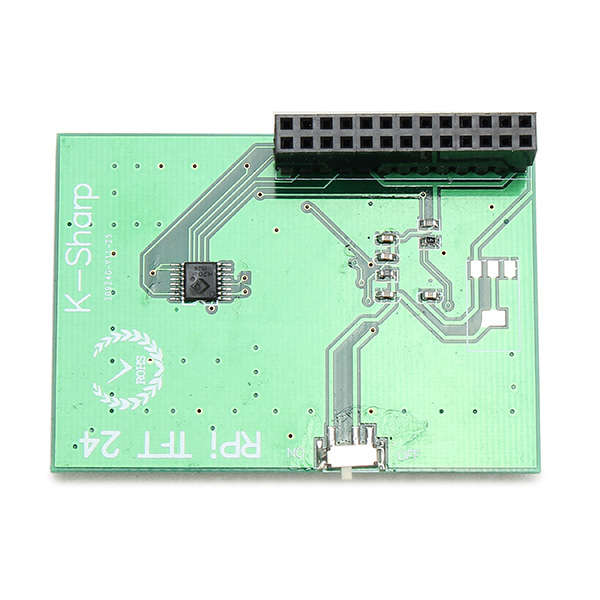

Interface definition
Pin No.	Symbol	Description
1, 17	3.3V	Power supply + (3.3V power input)
2, 4	5V	Power supply + (5V power input)
3, 5, 7, 8, 10, 22	NC	NC
6, 9, 14, 20, 25	GND	Ground
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
12	KEY1	Button
13	RST	Reset
15	LCD_RS	LCD command control, command / data register select
16	KEY2	Button
18	KEY3	Button
19	LCD_SI/TP_SCK	LCD display / touch panel SPI data input
21	TP_SO	Touch panel SPI data input
23	LCD_SCK/TP_SCK	LCD display / touch panel SPI clock signal
24	LCD_CS	LCD chip select signals, low-level selection LCD
26	TP_CS	Touch panel chip select signal, choose low touch panel

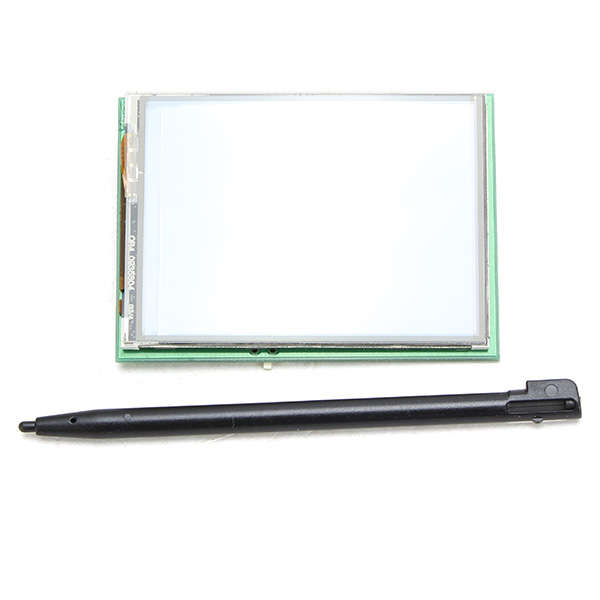

Package includes:
1 x 2.4 Inch TFT LCD Display Module
